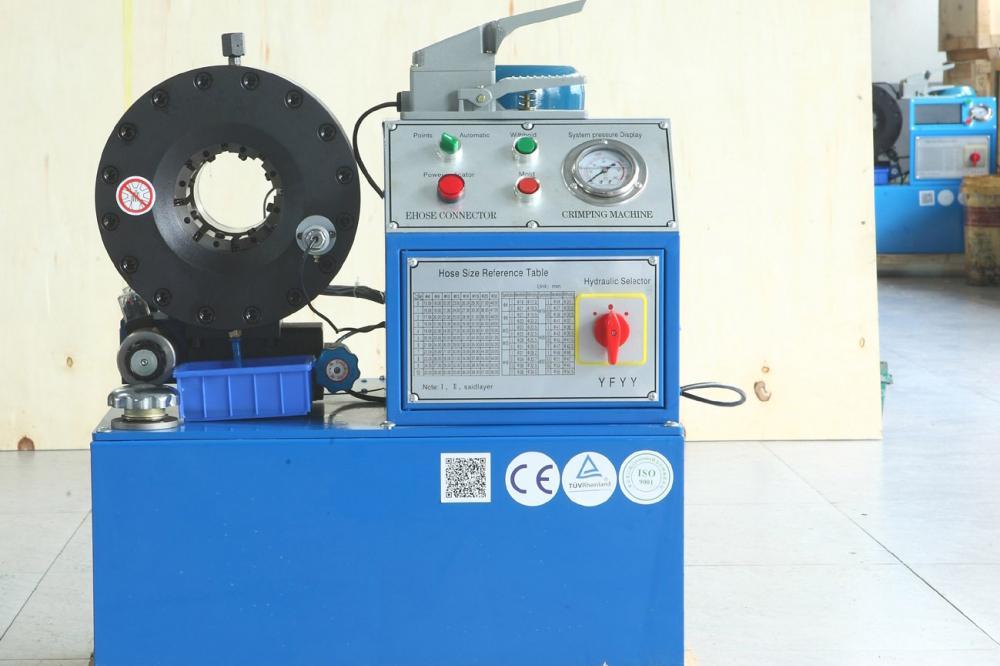

YONG-FENG F20 Automatic Hydraulic Hose Crimping Machine
This product has been discontinued and removed from our shelves.
Application

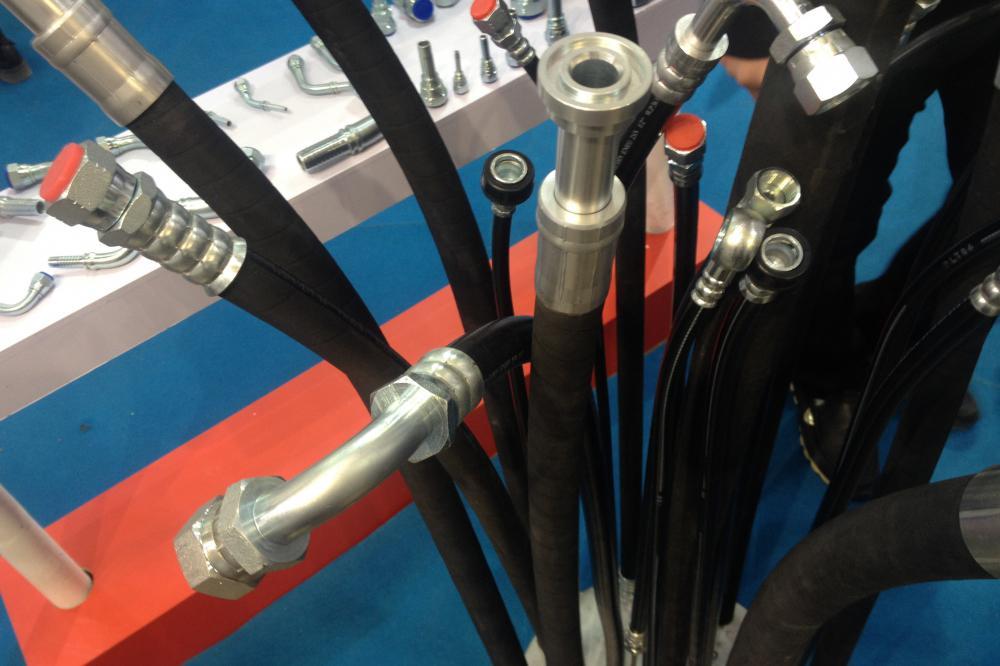

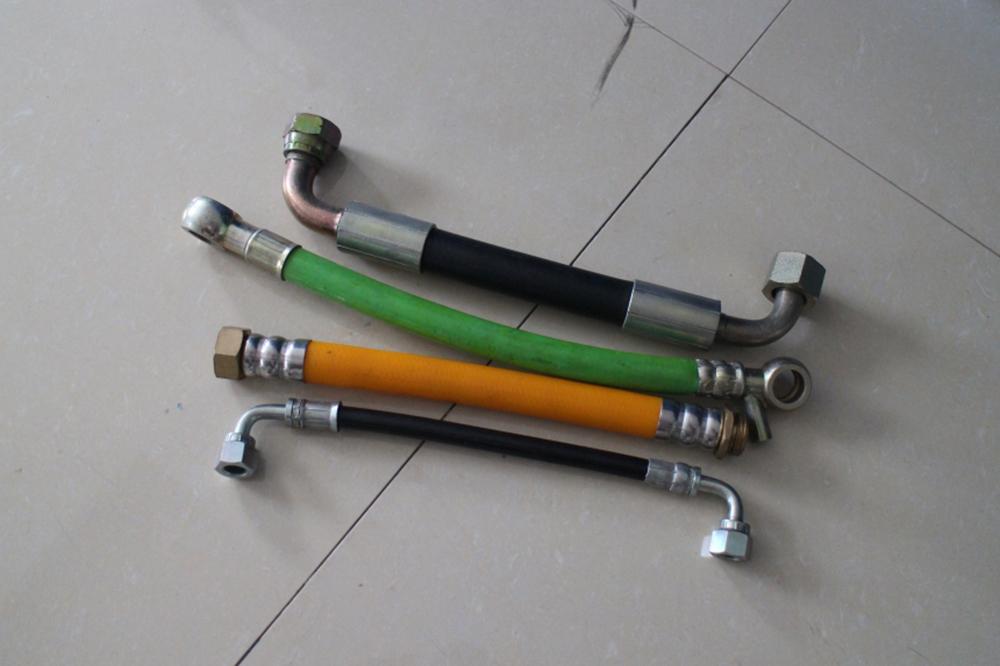

The crimping force of the YONG-FENG F20 automatic hydraulic hose crimping machine is 3200KN, with a crimp range of 6~56mm and 12 sets of standard dies. YONG-FENG F20 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, automobile brake cables, throttle cables, air conditioner hoses and bathroom hoses etc.
Max. inner diameter
Industrial hoses: 2"
Hoses with 2 braided wires: 1½"
Hoses with 4 spiral wires: 1¼"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-56mm |
| Hose size | 1¼", 4SN |
| Passing diameter | 90mm |
| Opening diameter | 96mm |
| Opening | +21mm |
| System pressure | 31.5Mpa |
| Crimp force | 3200kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | automatic |
| Standard dies | 12 sets |
| Weight | 220kg |
| L x W x H | 620*500*660mm |

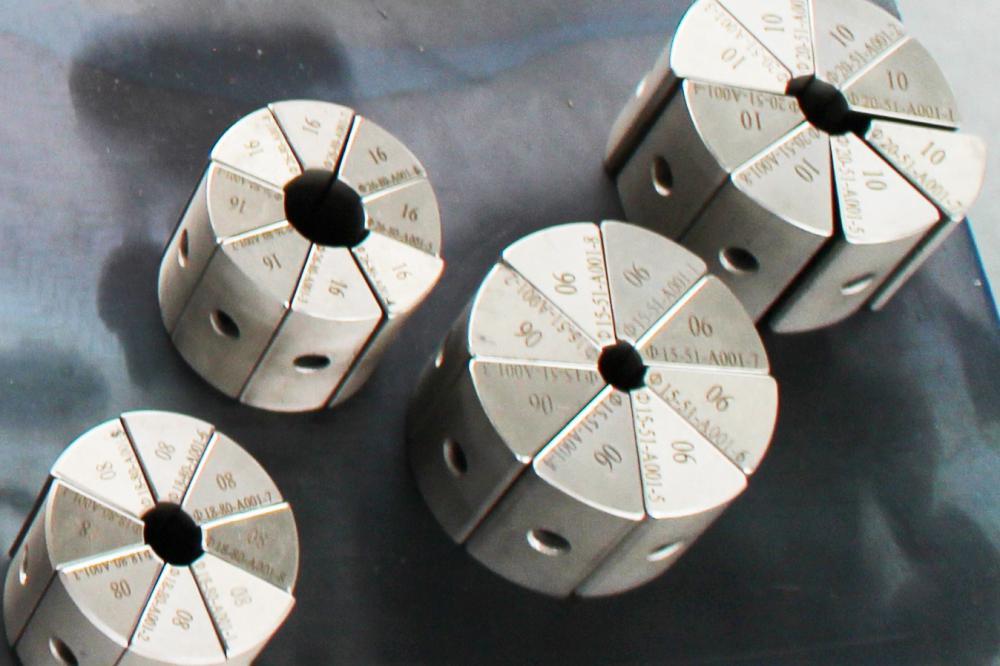

Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm |
| Length | 65mm | 65mm | 65mm | 65mm | 65mm | 65mm | 70mm | 70mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details

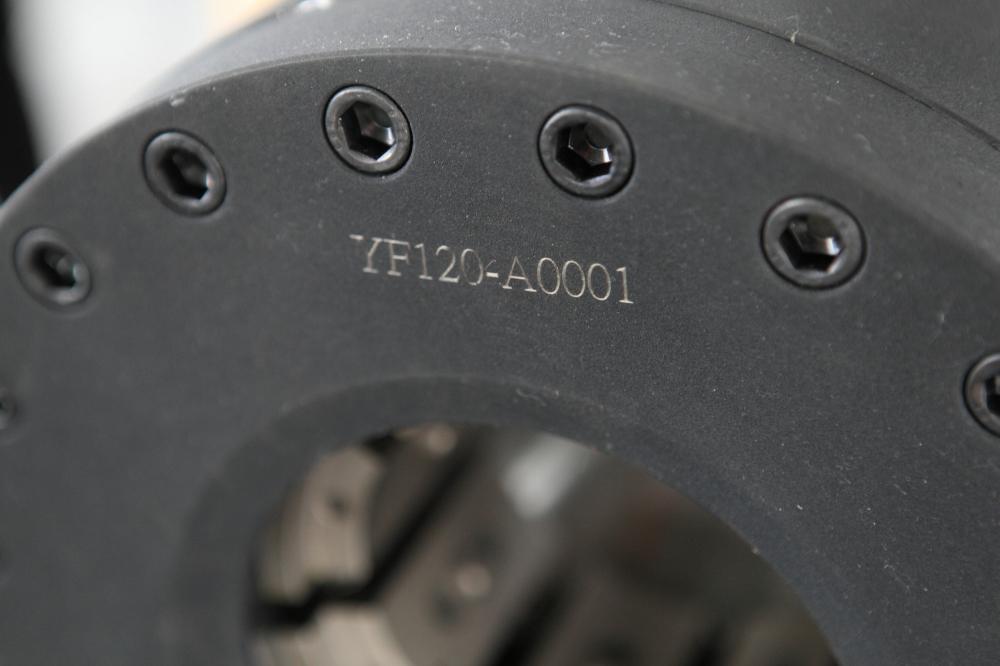

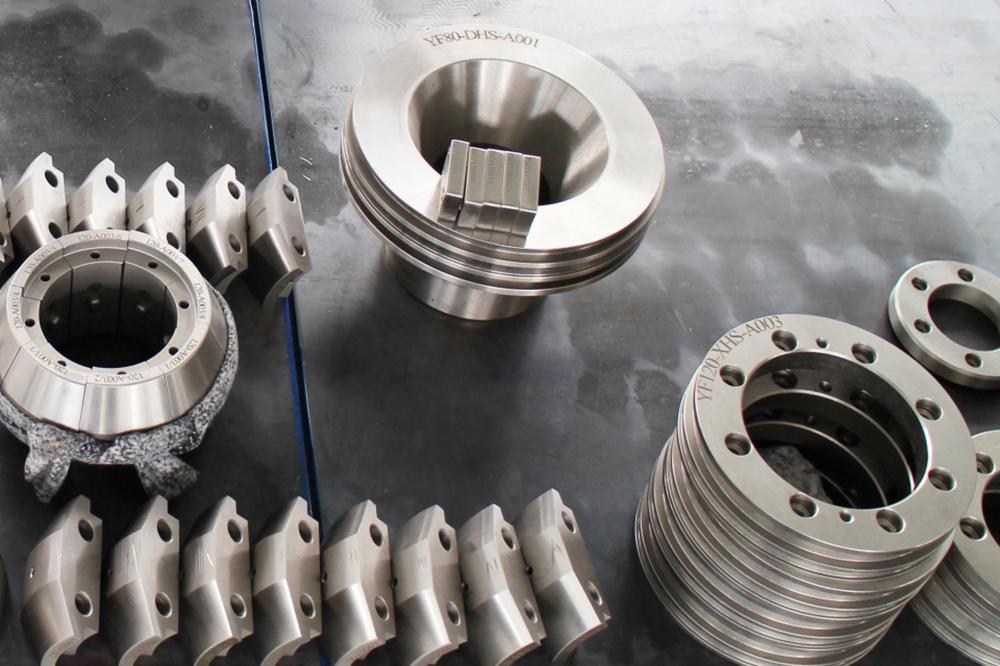

Material
The oil cylinder cover, oil tank and piston rod are made from 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The hardened layer is 2mm thick.

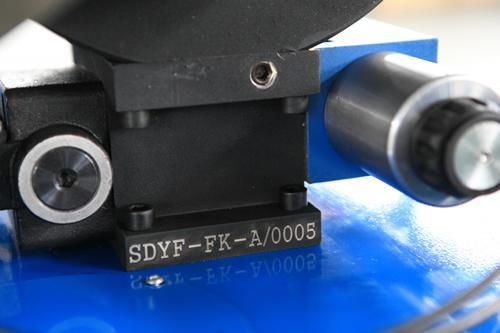

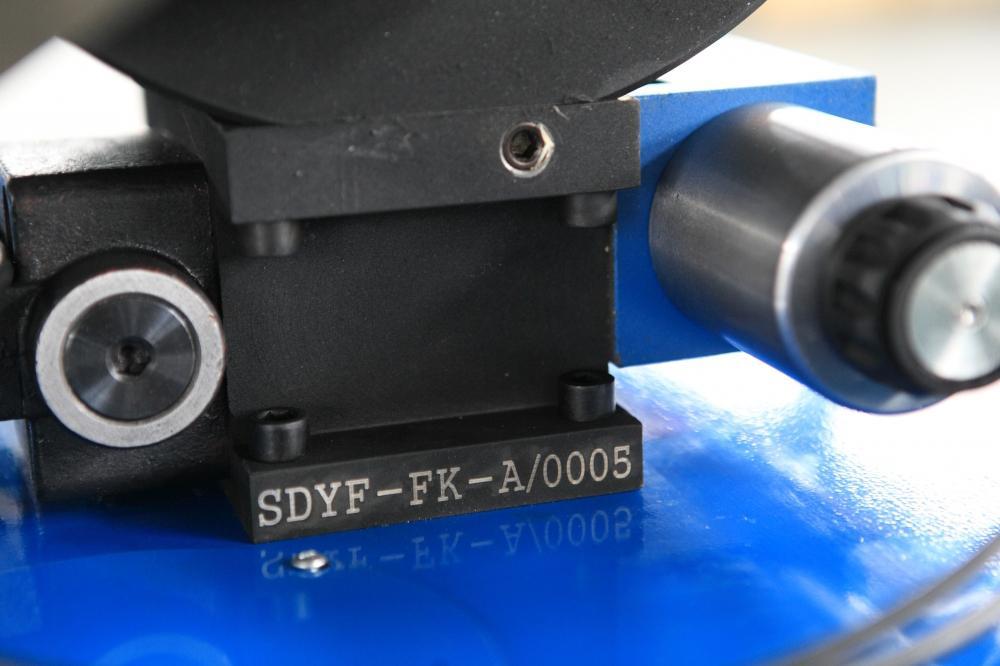

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight with little heat buildup and stable pressure conduction.

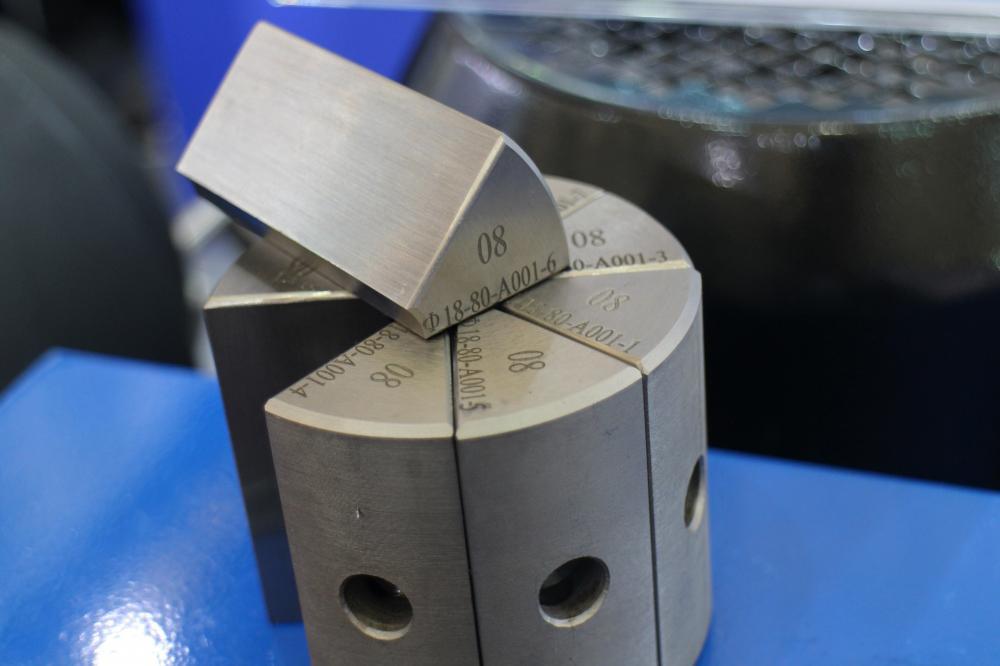

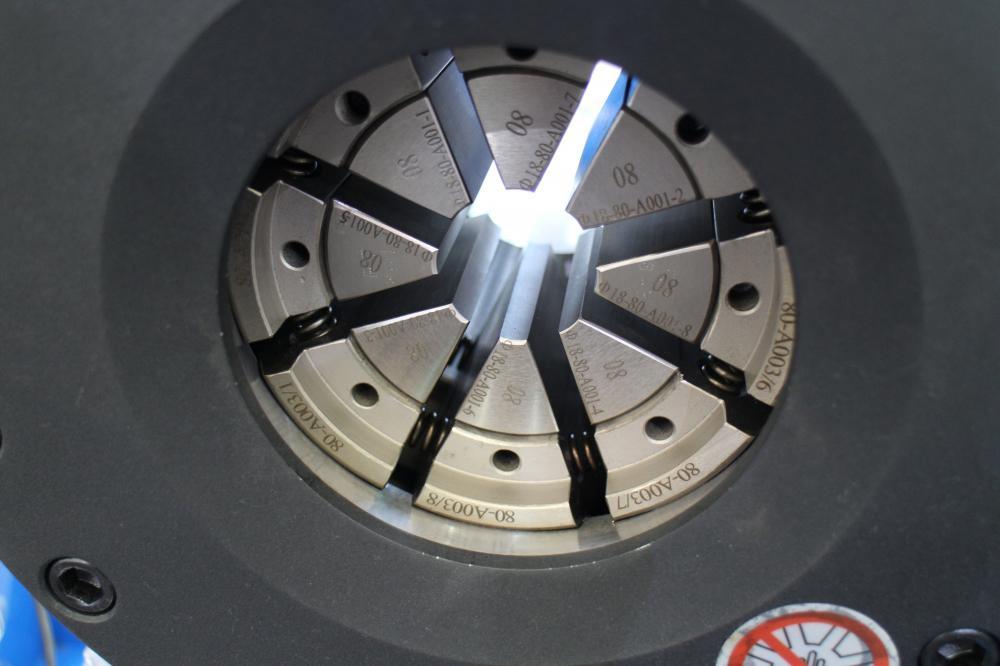

Die connection
Our dies are connected through magnetism, which make it convenient for assembly and disassembly, and the crimping is neat.
