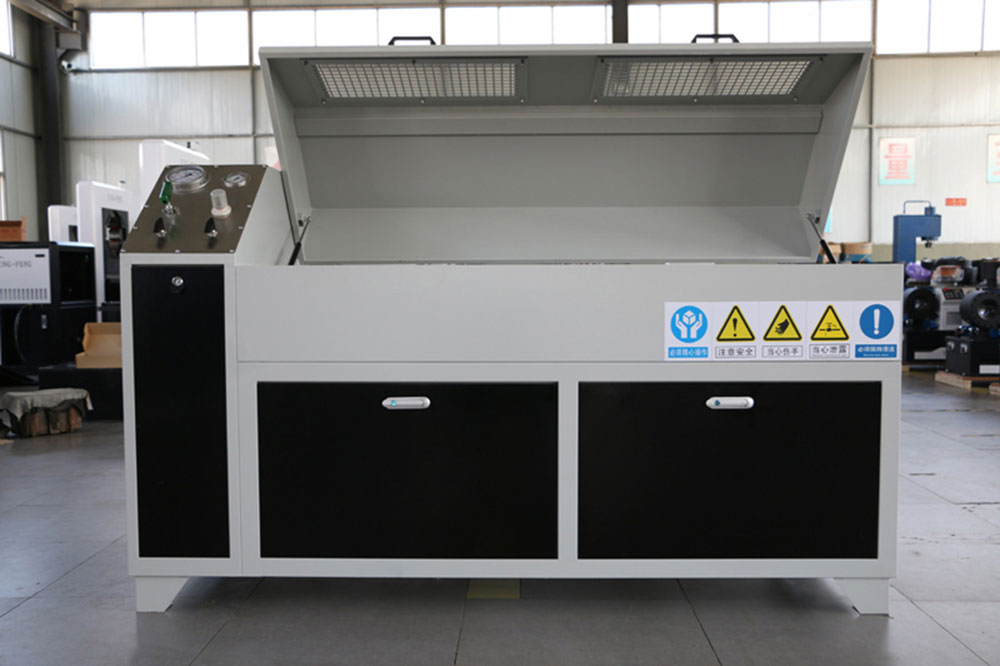

Hose Testing Bench
Description
The hose testing benches are used to test the pressure resistance of hydraulic hose assemblies, which is a key procedure to ensure product quality and reliability.
Utilizing German technology, the hose testing bench is driven by a gas driving hydraulic pump, therefore, it has no need for electricity. It is easy to operate, and generates very little noise. It quickly increases pressure levels, and the test liquid can be reused.
YONG-FENG T2000 hose testing bench| Test pressure | 250-2000bar(200Mpa) |
| Driving pressure | 0-0.8Mpa |
| Range of air pressure measurement | 0-1Mpa |
| Air inlet connector | ½NPT |
| Bursting test pressure | Pmax=200Mpa |
| Range of bursting pressure measurement | 0-300Mpa |
| Pressure outlet connector | 3-¼BSP |
| Max. hoses per test | 3 hoses |
| Air inlet | ≤7bar |
| Drive | Air |
| Effective capacity | 50L |
| L×W×H | 1800*800*1200mm |
| Weight | 300kg |
YONG-FENG T3000 hose testing bench
| Test pressure | 250-3000bar(300Mpa) |
| Driving pressure | 0-0.8Mpa |
| Range of air pressure measurement | 0-1Mpa |
| Air inlet connector | ½NPT |
| Bursting test pressure | Pmax=300Mpa |
| Range of bursting pressure measurement | 0-300Mpa |
| Pressure outlet connector | 3-¼BSP |
| Max. hoses per test | 3hoses |
| Air inlet | ≤7bar |
| Drive | Pneumatic |
| Effective capacity | 50L |
| L×W×H | 1800*800*1200mm |
| Weight | 320kg |
