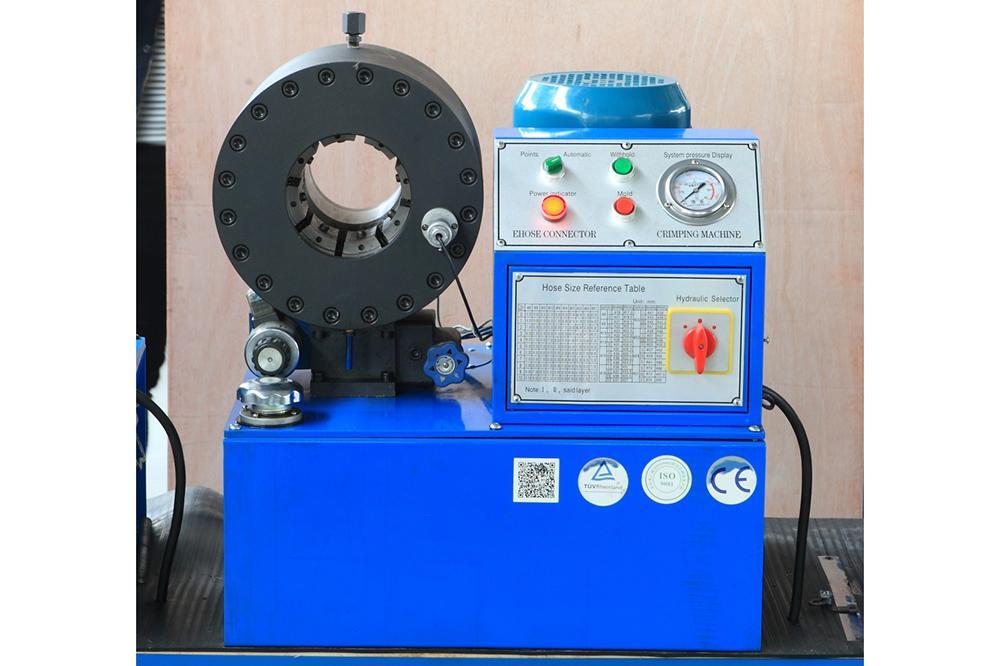

YONG-FENG F32 Automatic Hydraulic Hose Crimping Machine
This product has been discontinued and removed from our shelves.
Application

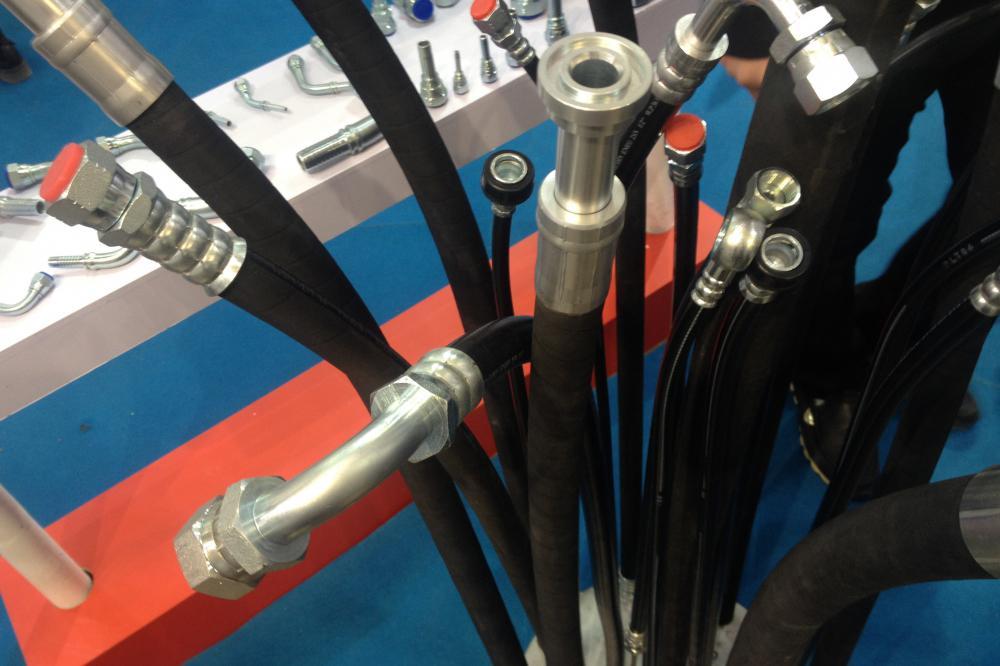

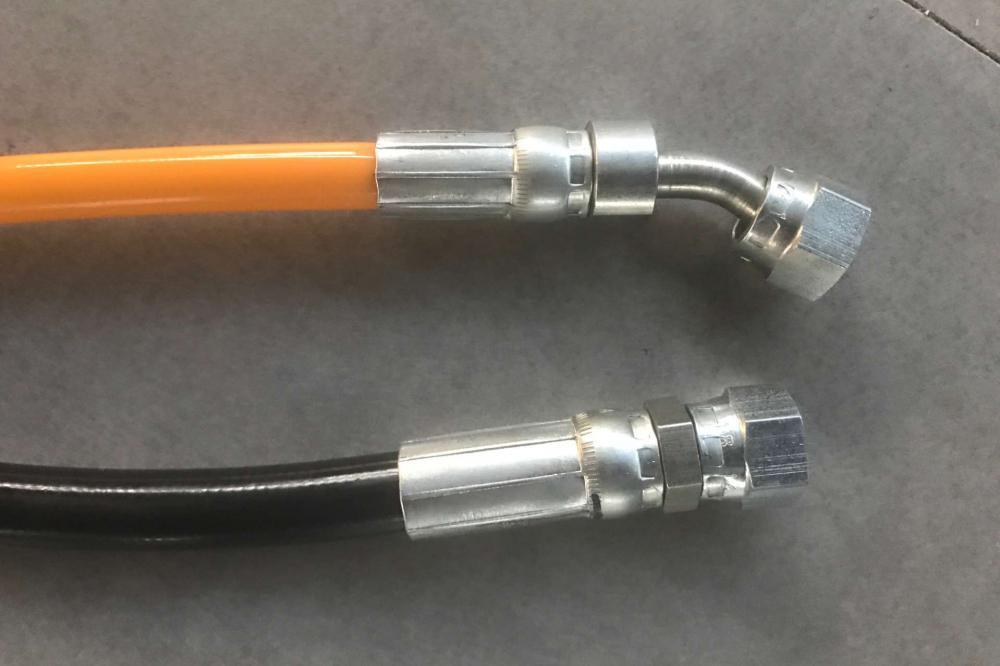

The crimping force of the YONG-FENG F32 automatic hydraulic hose crimping machine is 3600KN, with an opening diameter of 118mm, a crimp range of 6~56mm and 14 sets of standard dies. YONG-FENG F32 crimpers are widely used for crimping high-pressure fuel pipes, automobile brake cables, throttle cables, air conditioner hoses and bathroom hoses etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-73mm |
| Hose size | 2", 4SN |
| Passing diameter | 118mm |
| Opening diameter | 118mm |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 3600kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Full automatic |
| Standard dies | 14 sets |
| Weight | 240kg |
| L x W x H | 620*500*660mm |
Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details
Material

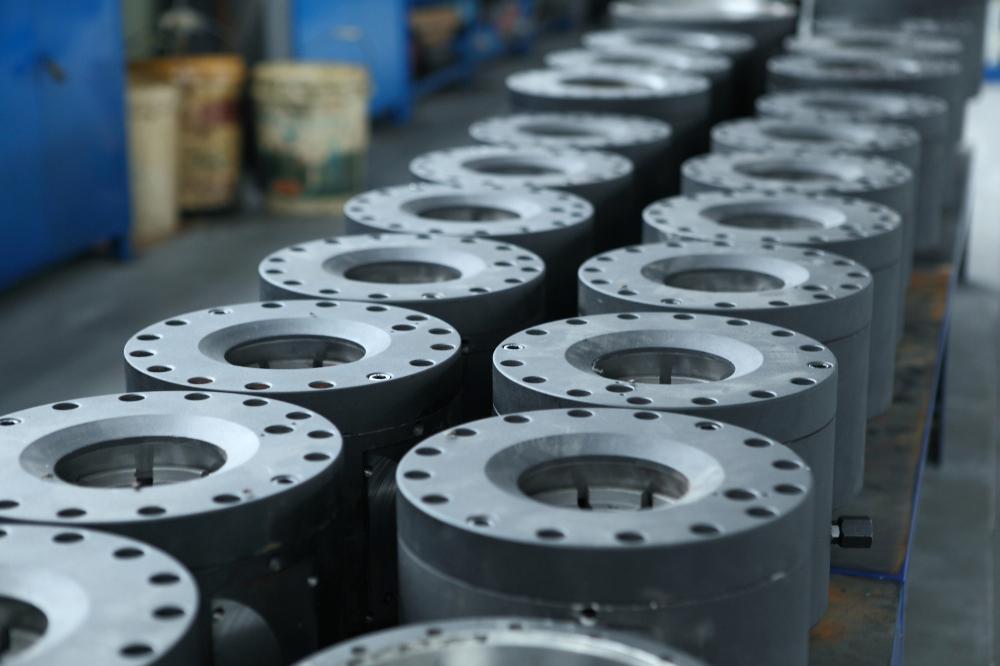

The oil cylinder cover, oil tank and piston rod are made from 40 chromium with outstanding hardness. It is high pressure resistant with great carrying capacity and improves the durability of the oil tank and piston rod.
Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction.

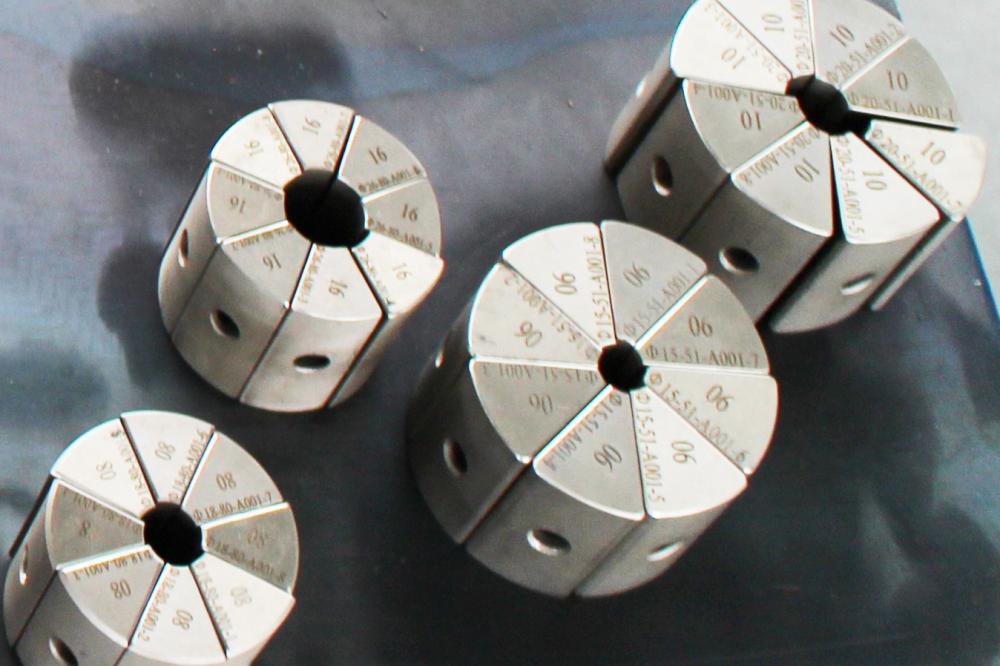

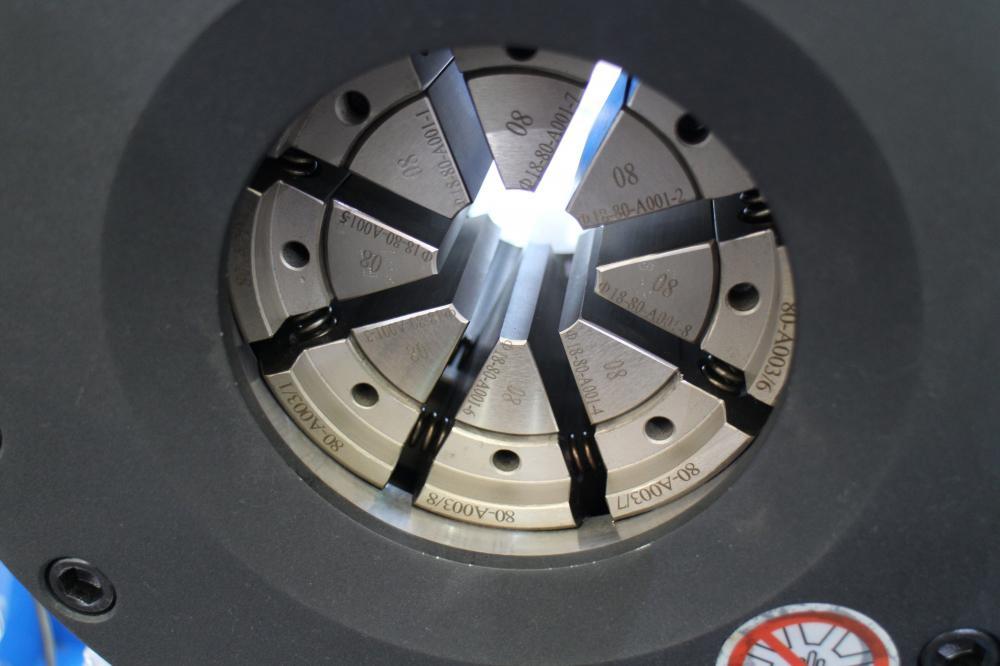

Die connection
Our dies are connected through magnetism, which make it convenient for assembly and disassembly, and the crimping is neat. The dies are made of Cr12 die steel.
