YONG-FENG F51PAutomatic Hose Production Crimper
This product has been discontinued and removed from our shelves.
Application
The crimping force of the YONG-FENG F51Pautomatic hose production crimper is 3380KN, with a crimp range of 6~73mm and 14 sets of standard dies. YONG-FENG F51Pcrimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, water hoses, medical hoses, air conditioner hoses and bathroom hoses etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-73mm |
| Hose size | 2", 4SN |
| Max. Crimp range | 118mm |
| Opening without dies | 118mm |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 3380kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | automatic |
| Standard dies | 14 sets |
| Weight | 340kg |
| L x W x H | 800*600*1350mm |
Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details

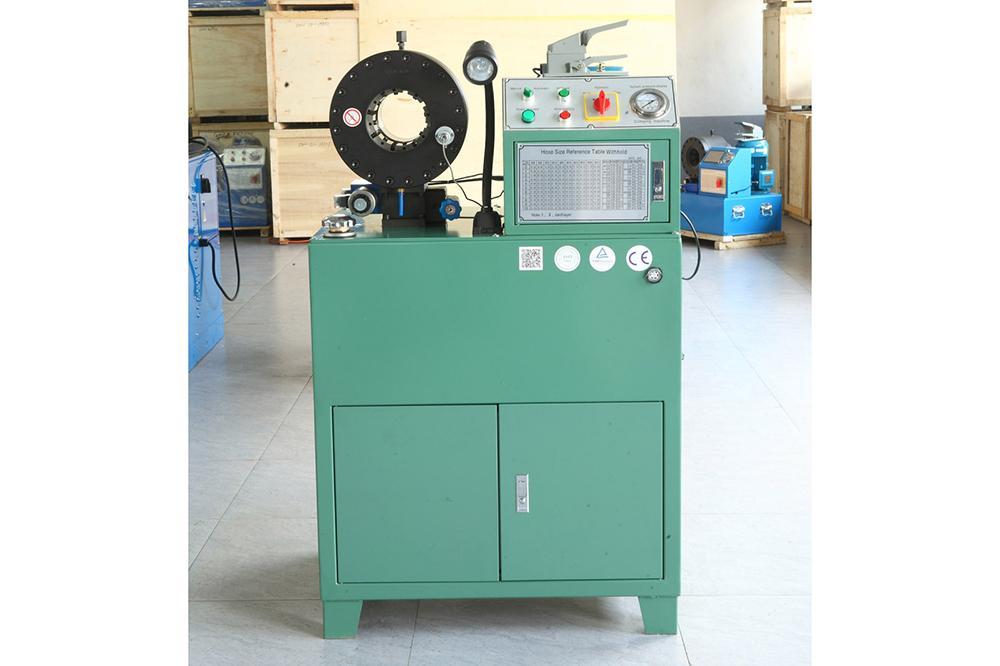

Automatic hose production crimper

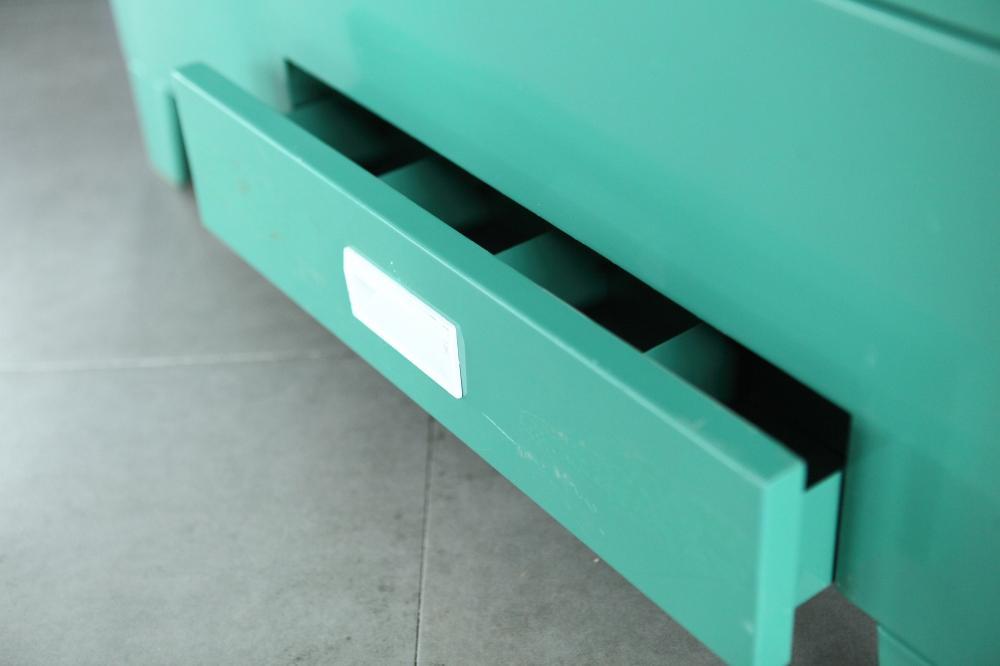

The cabinet can operate on the ground, following an ergonomic design. There is no need for an extra worktable, and the crimping operation is convenient. There is a special drawer for dies in the cabinet, which saves space and provides convenience for collecting dies for different applications.

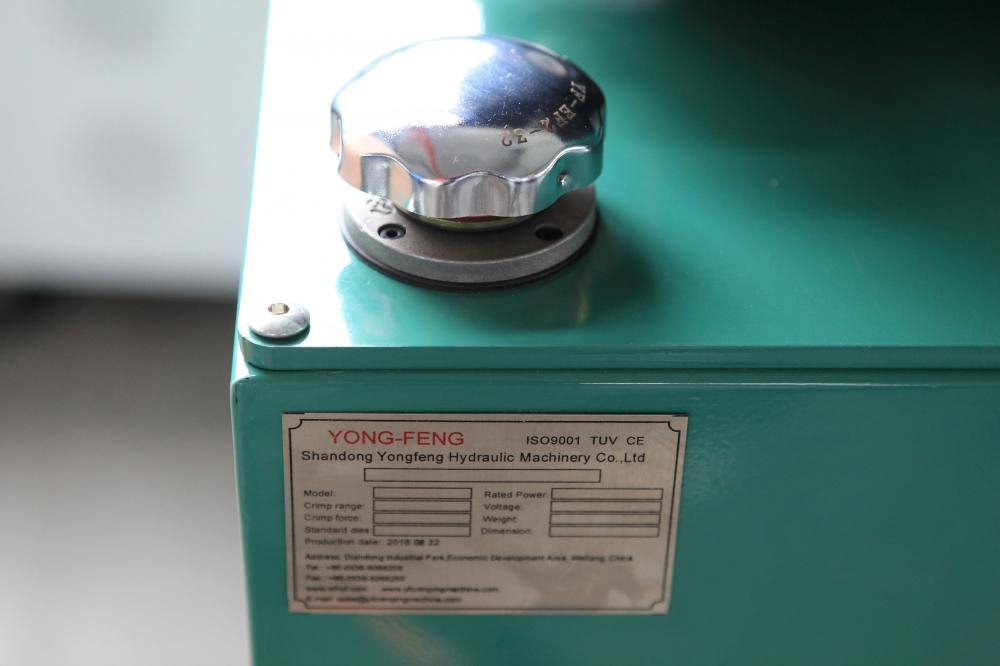

Hydraulic system
The hydraulic system, which Yongfeng owns the patent, is equipped with a huge hydraulic oil tank, and ensures a high recovery rate of oil circulation and good heat dissipation. The oil returns to the tank quickly and the crimping is efficient with stable pressure, suitable for massing production and processing of hydraulic hose assemblies.

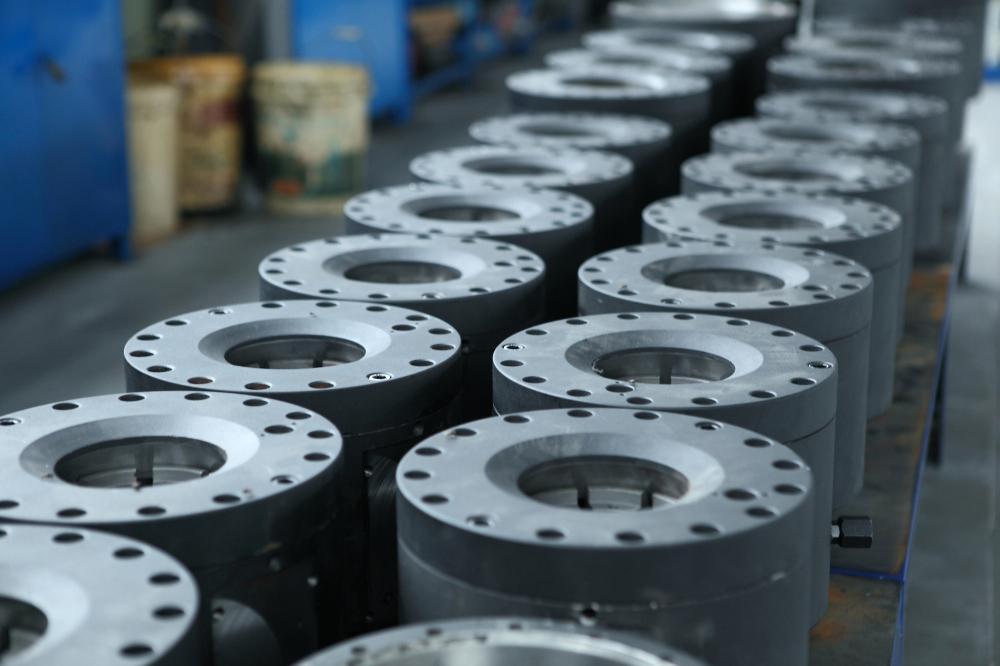

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The hardened layer is 2mm thick.

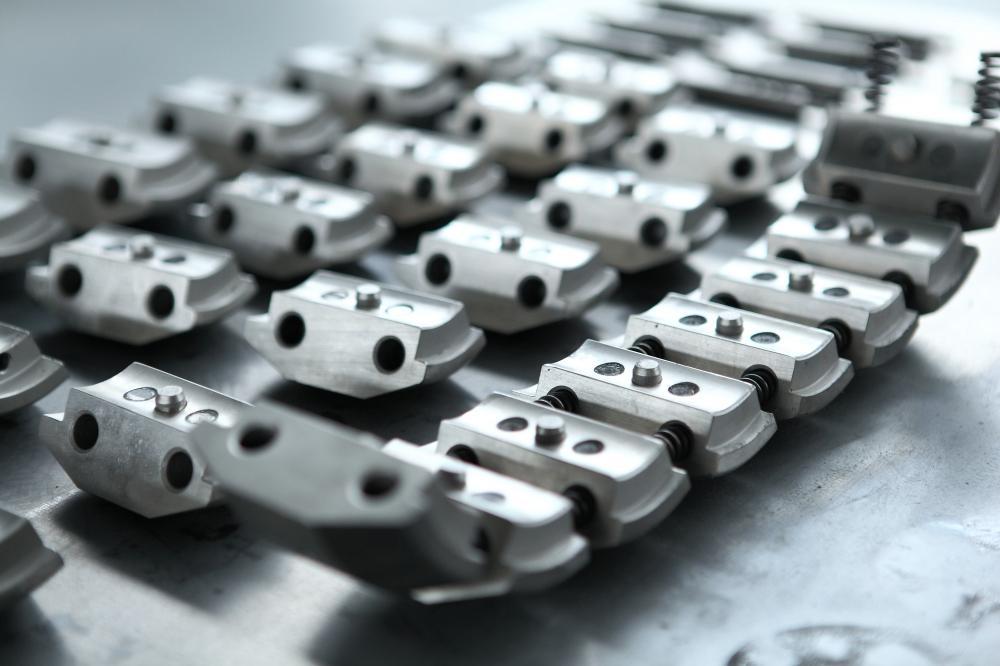

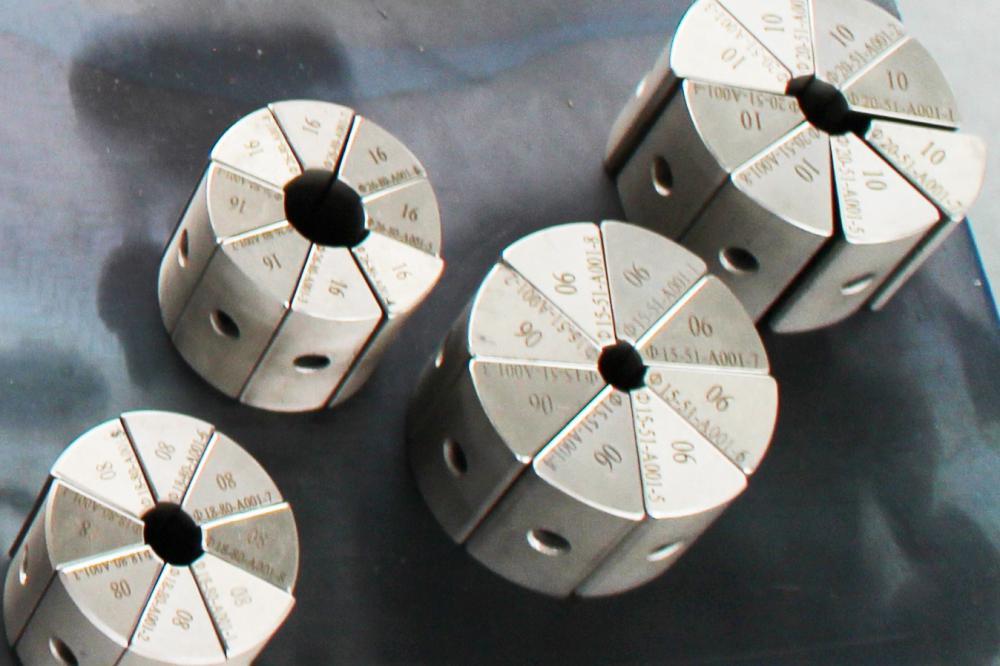

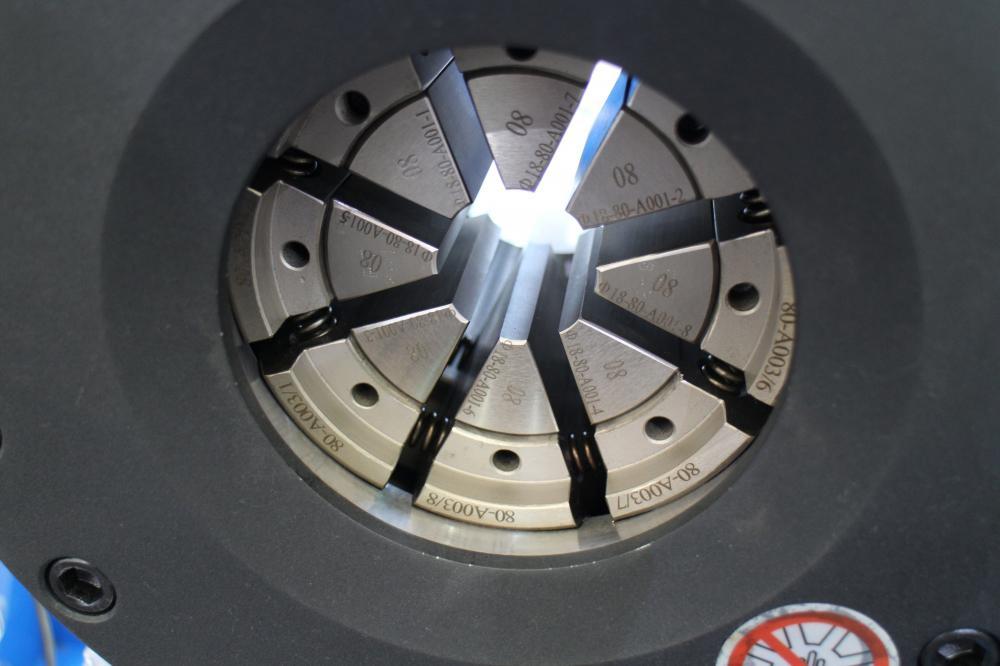

Die connection
Our crimping dies are made of Cr12 die steel and connected through magnetism, which makes it convenient for assembly and disassembly.

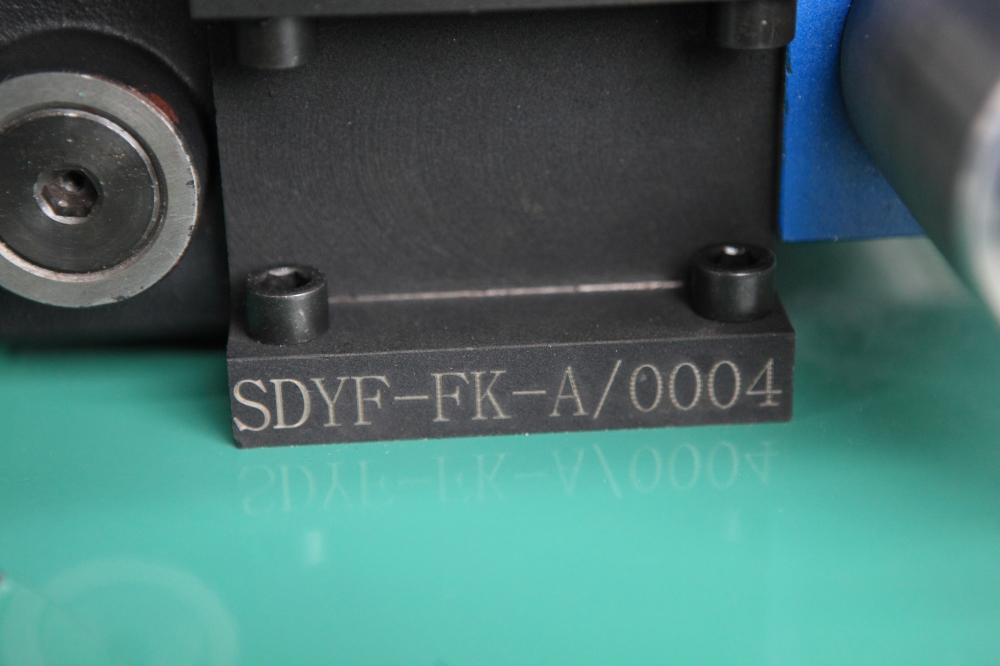

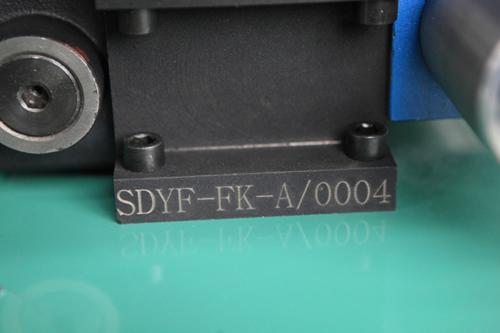

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with stable pressure conduction, and greatly improves the performance of the crimping machine.
