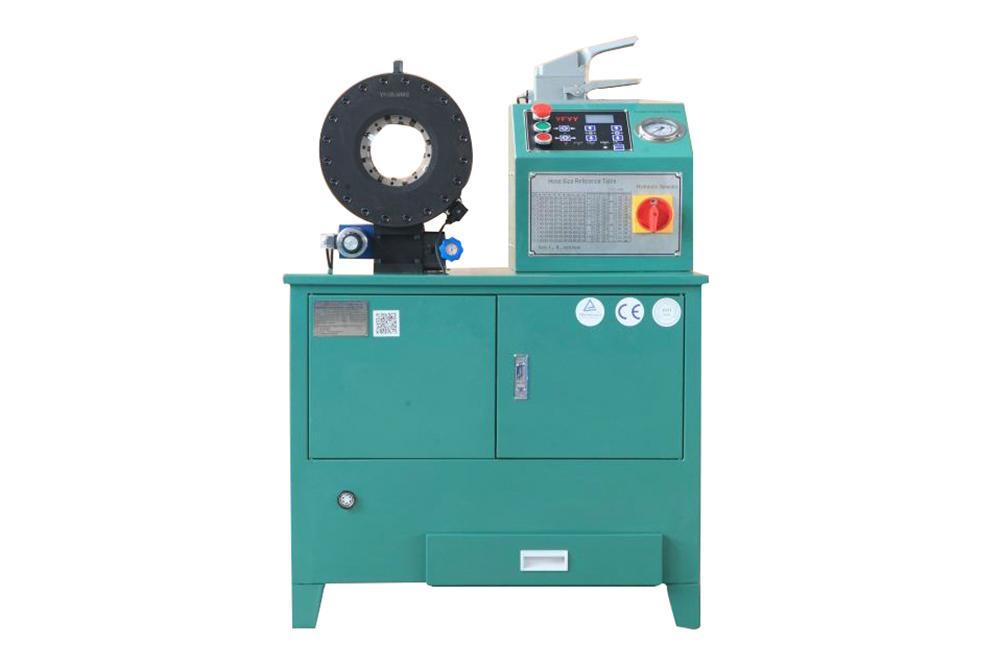

YONG-FENG F51N Workshop Hose Crimper
This product has been discontinued and removed from our shelves.
Application

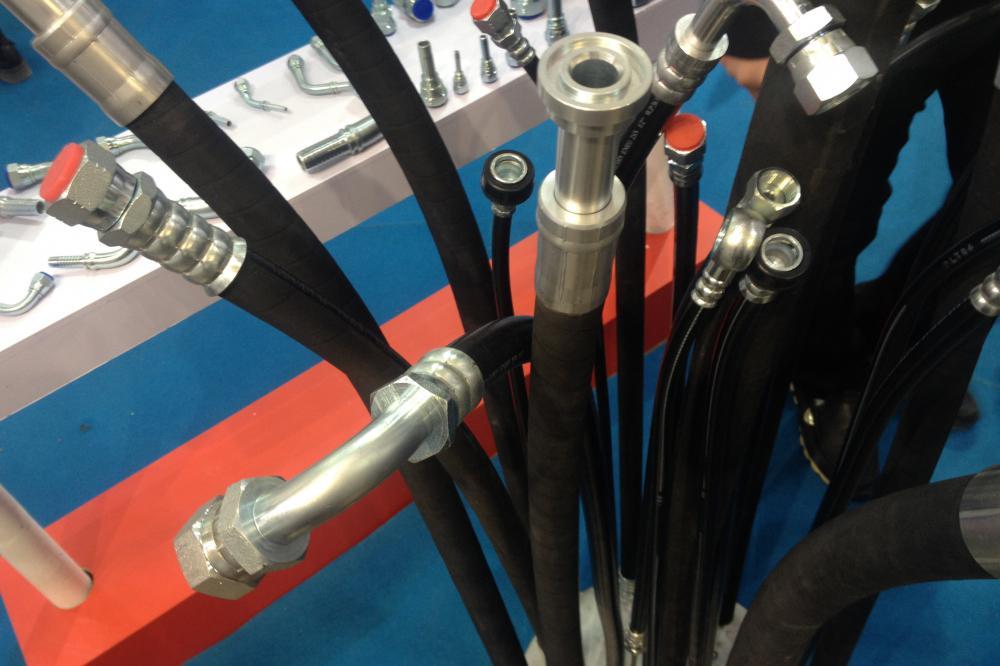

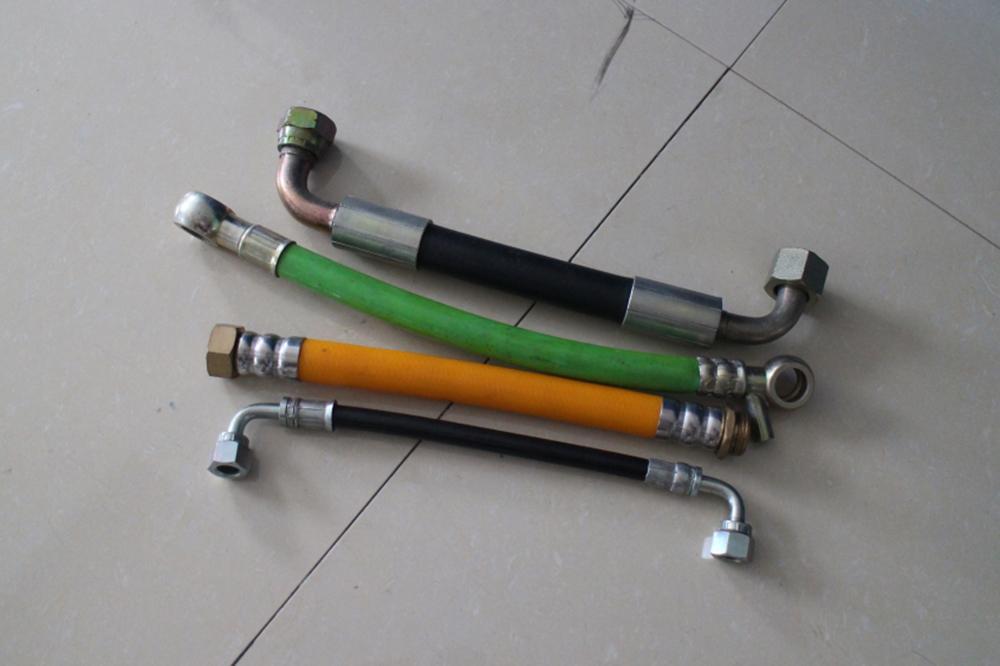

The YONG-FENG F51N workshop hose crimper is controlled by CNC. The crimp force of YONG-FENG F51N crimper is 3600KN, with a crimp range of 6~88mm and 14 sets of standard dies. YONG-FENG F51N crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, water hoses and medical hoses etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-88mm |
| Hose size | 2", 4SN |
| Max. Crimp range | 118mm |
| Opening without dies | 118mm |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 3600kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | CNC |
| Standard dies | 14 sets |
| Weight | 270kg |
| L x W x H | 820*510*1140mm |
Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details
CNC crimping machines have obvious advantages over traditional crimpers:

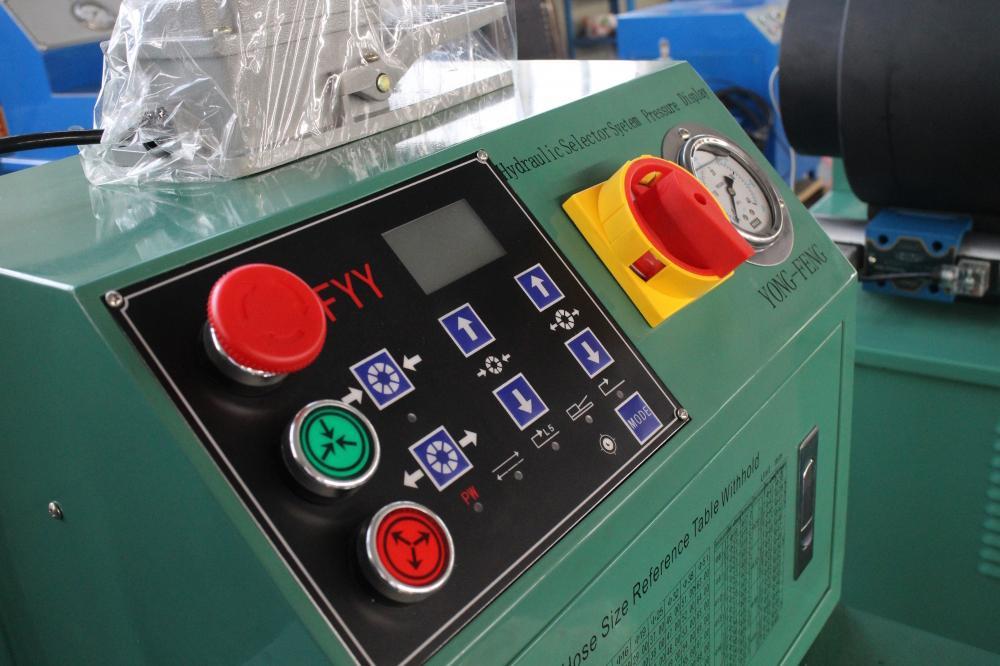

- The digital controlled operation panel is clear and easy to understand with simple operation.

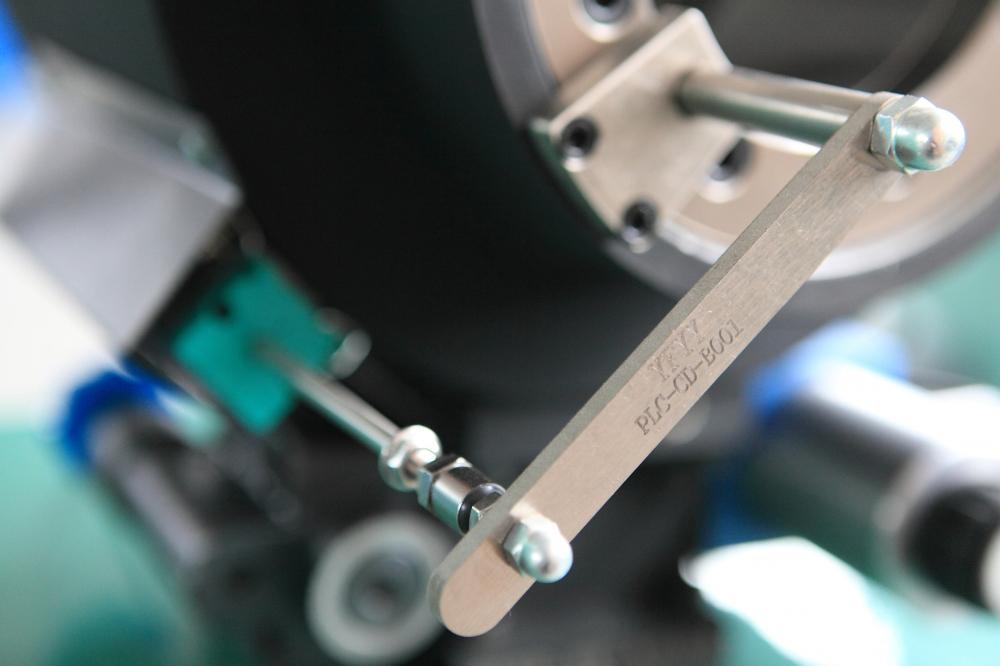

- The traditional manual adjustment is replaced by the electrical ruler, with a crimping precision of 0.01mm, which is 10 times of that of traditional crimpers.
- The crimping is not only more precise, but also nicer and neater.
Hydraulic conduction system

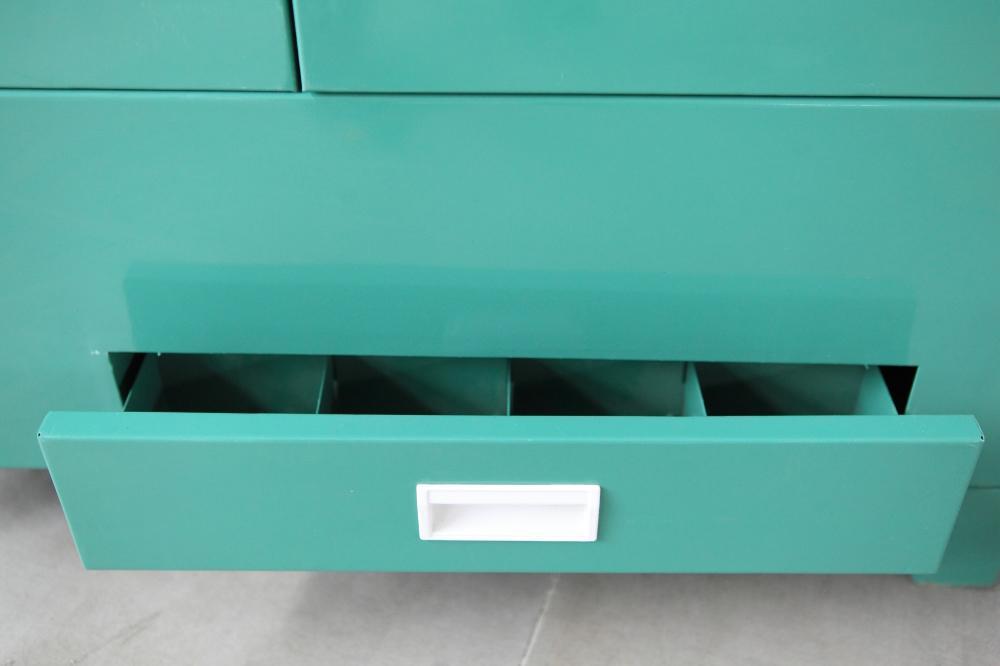

The cabinet can operate on the ground. There is no need for an extra worktable, and the crimping operation is convenient. There is a special drawer for dies in the cabinet, which saves space and provides convenience for collecting dies of different models.
Material

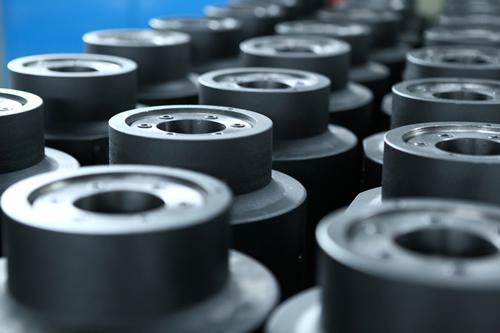

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and tear resistant with great impact absorbing and carrying capacity.

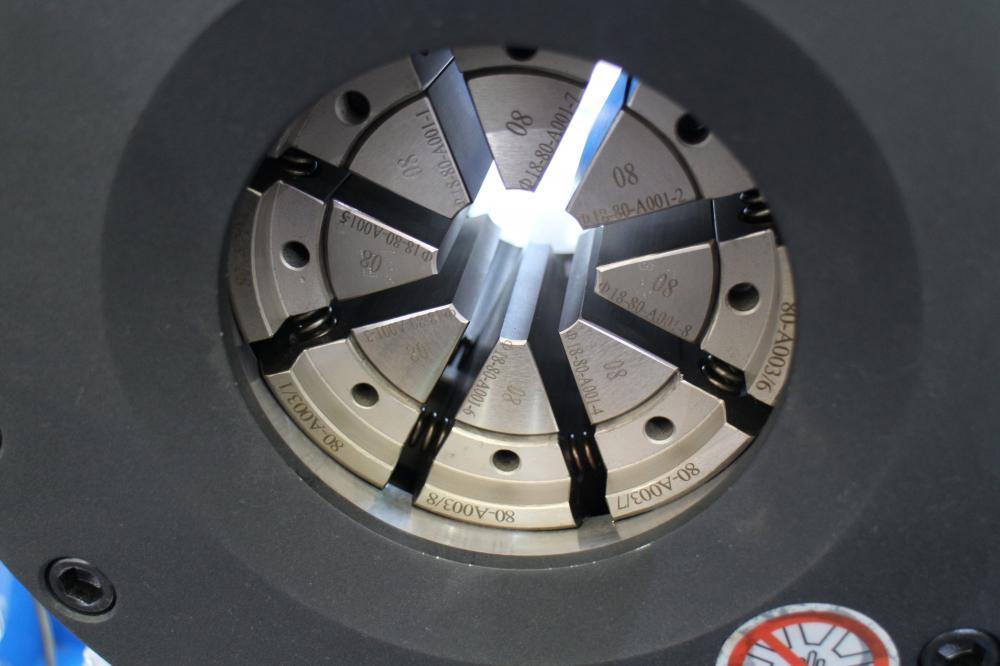

Die connection

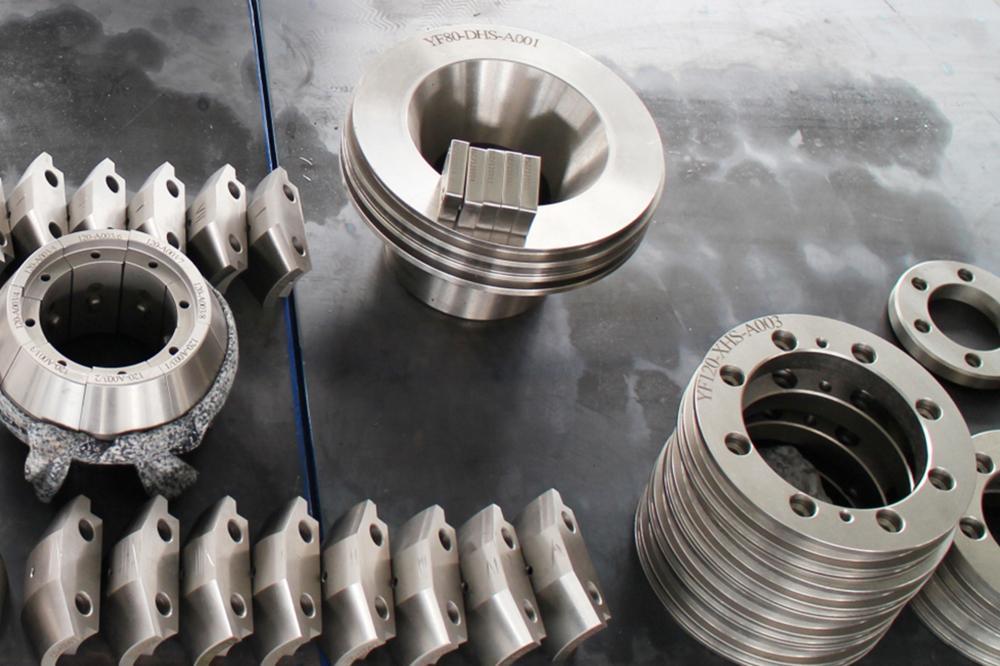

Our crimping dies are made of Cr12 die steel and connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat and nice.
