YONG-FENG F64H Fully Automatic Hydraulic Hose Crimping Machine
This product has been discontinued and removed from our shelves.
Application

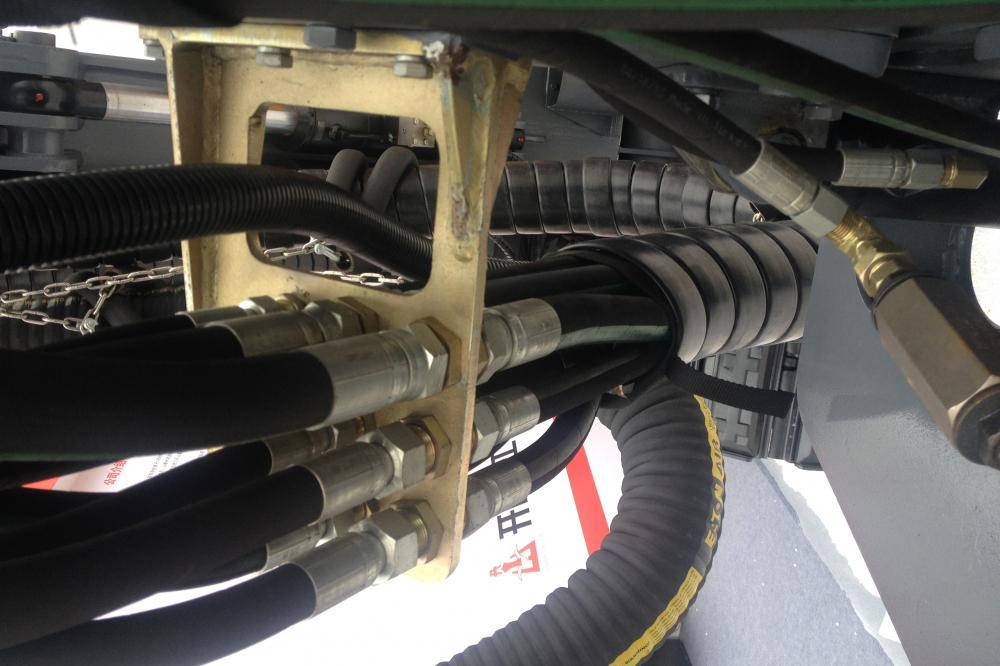

The crimp force of YONG-FENG F64H fully automatic hydraulic hose crimping machine is 4600KN, with a crimp range of 6~76mm and 11 sets of standard dies. YONG-FENG F64H crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, airbrake hoses, air conditioner hoses and bathroom hoses etc.
Max. inner diameter
Industrial hoses: 3"
Hoses with 2 braided wires: 2½"
Hoses with 4 spiral wires: 2½"
Hoses with 6 spiral wires: 2"
| Crimp head material | FORGE STEEL |
| Crimp range | 6-76mm |
| Hose size | 2½", 4SN |
| Passing diameter | 118mm |
| Opening diameter | 118mm |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 4600kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Full automatic |
| Standard dies | 11 sets |
| Weight | 380kg |
| L x W x H | 530*700*1370mm |

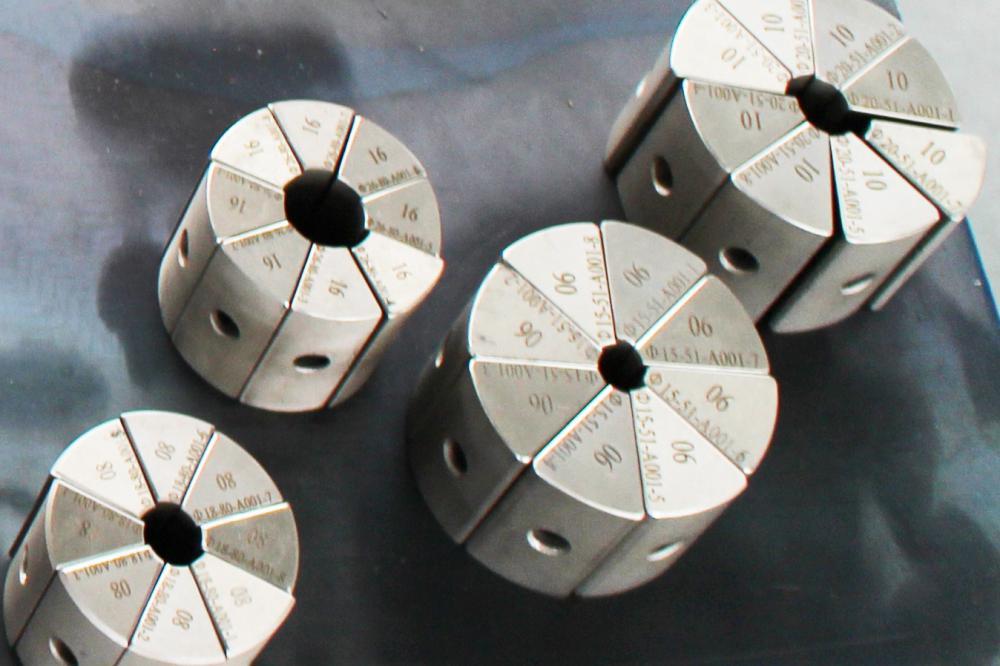

Specification of dies
| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 | Φ64 |
| Crimp range | 15-25 | 18-28 | 20-30 | 23-33 | 26-36 | 29-39 | 37-47 | 46-56 | 51-61 | 63-73 | 70-80 |
| Length | 45 | 45 | 45 | 50 | 65 | 65 | 80 | 80 | 80 | 80 | 80 |
Details
Material

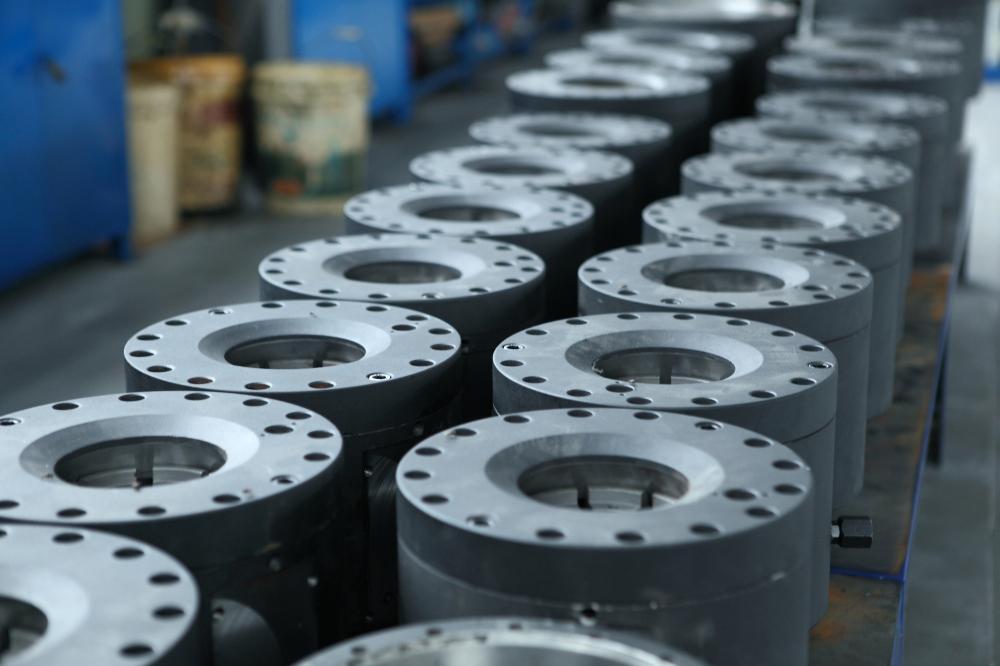

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The hardened layer is 2mm thick.

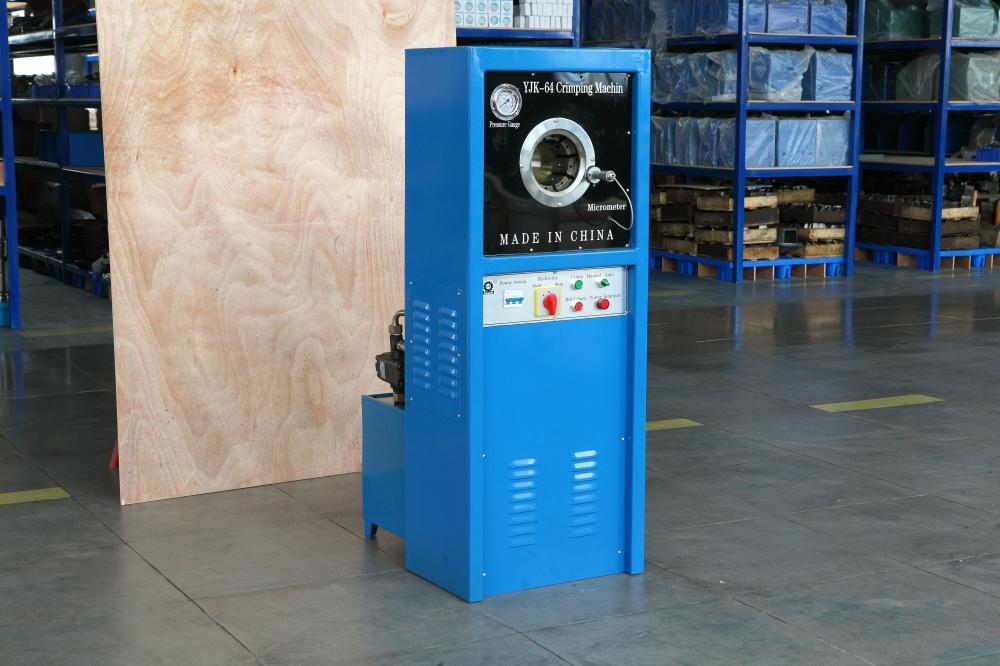

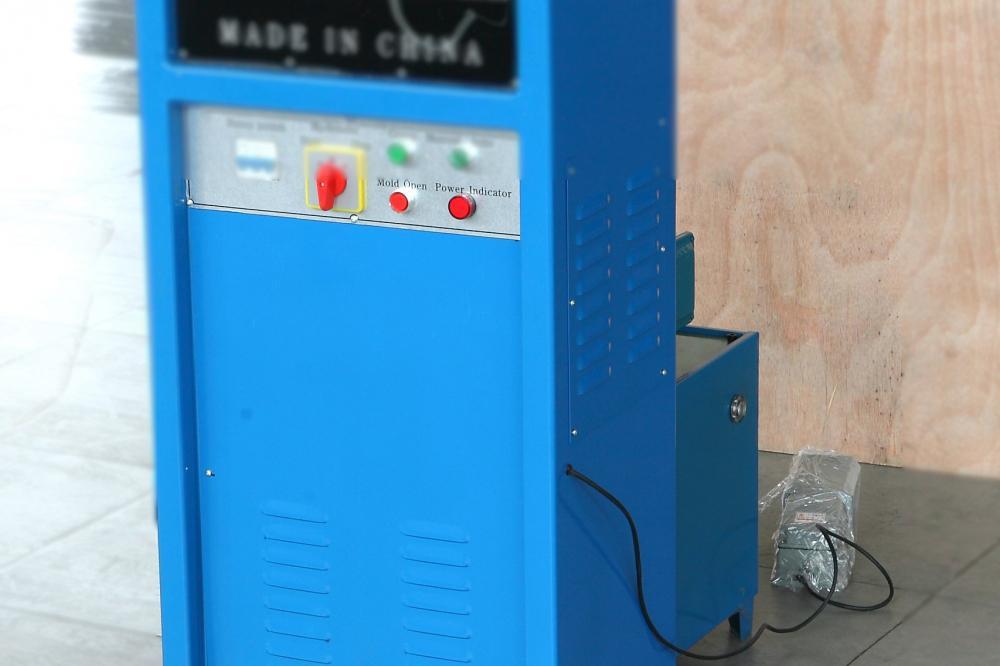

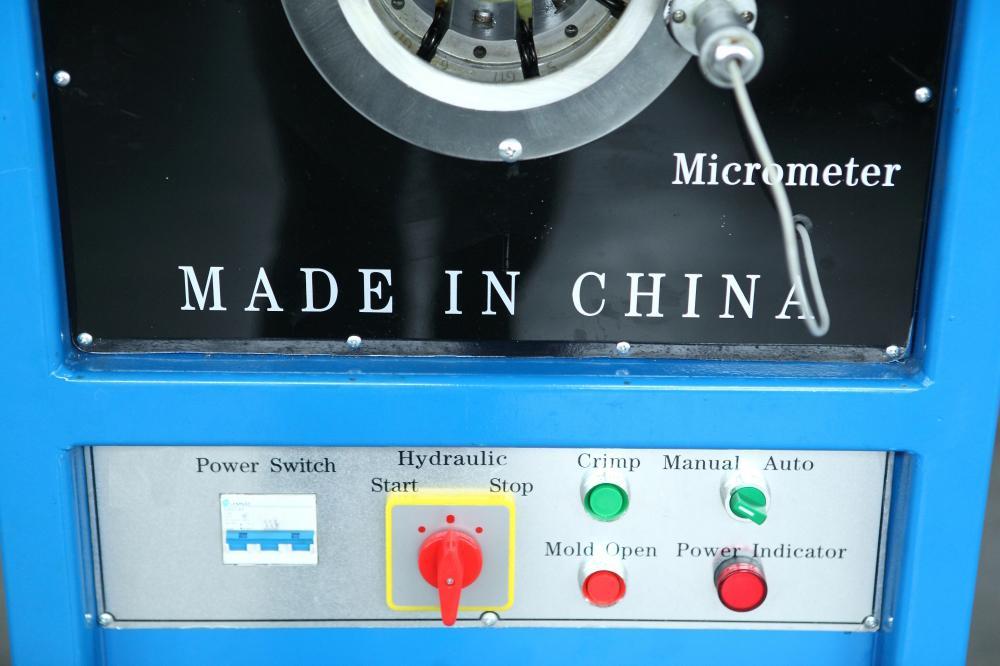

The cabinet can operate on the ground, following an ergonomic design. There is no need for an extra worktable, and the crimping operation is convenient. The integrative operation panel provides added ease for crimping large diameter hydraulic hoses.

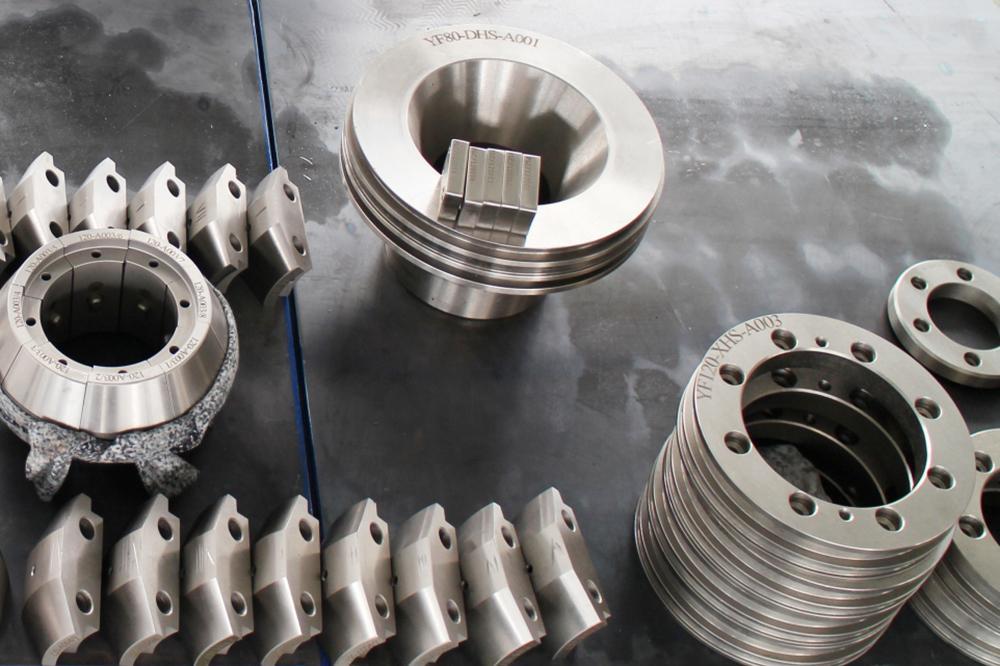

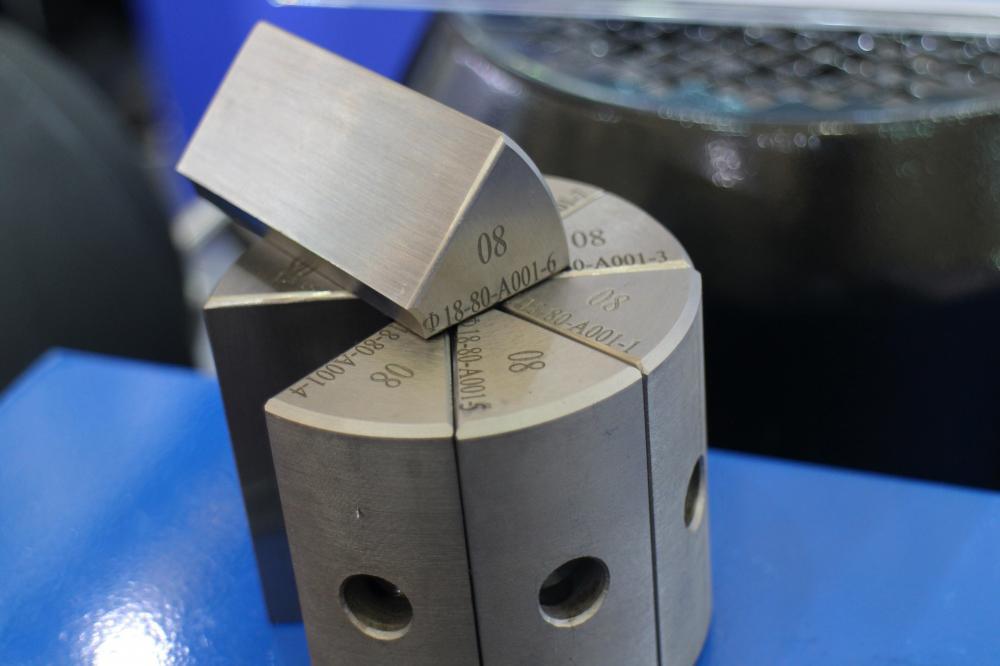

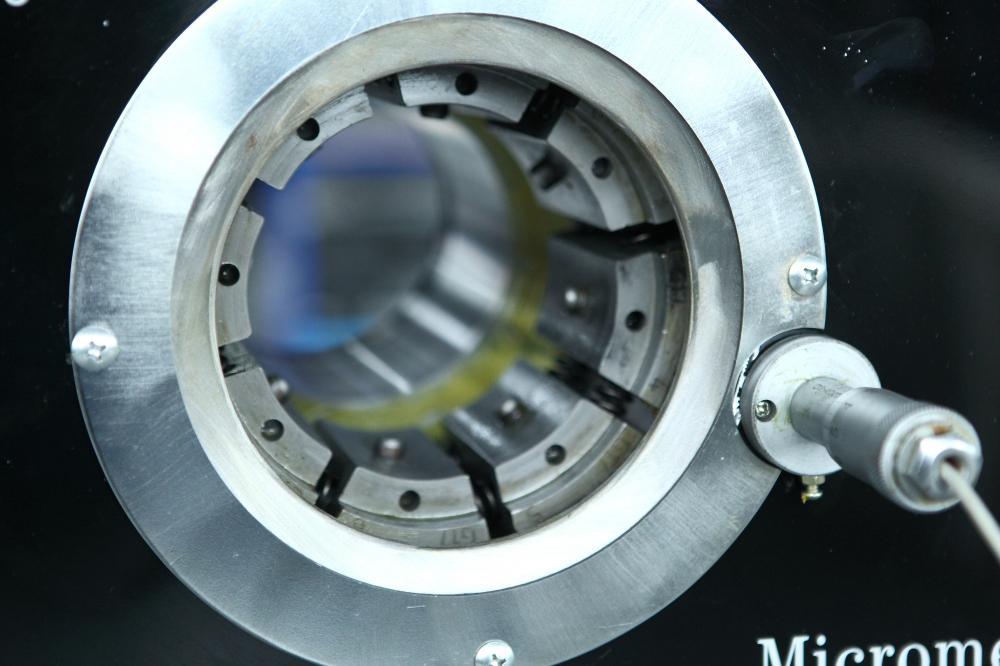

Die connection
Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly and allows for automatic positioning, and thus the crimping is neat and nice.

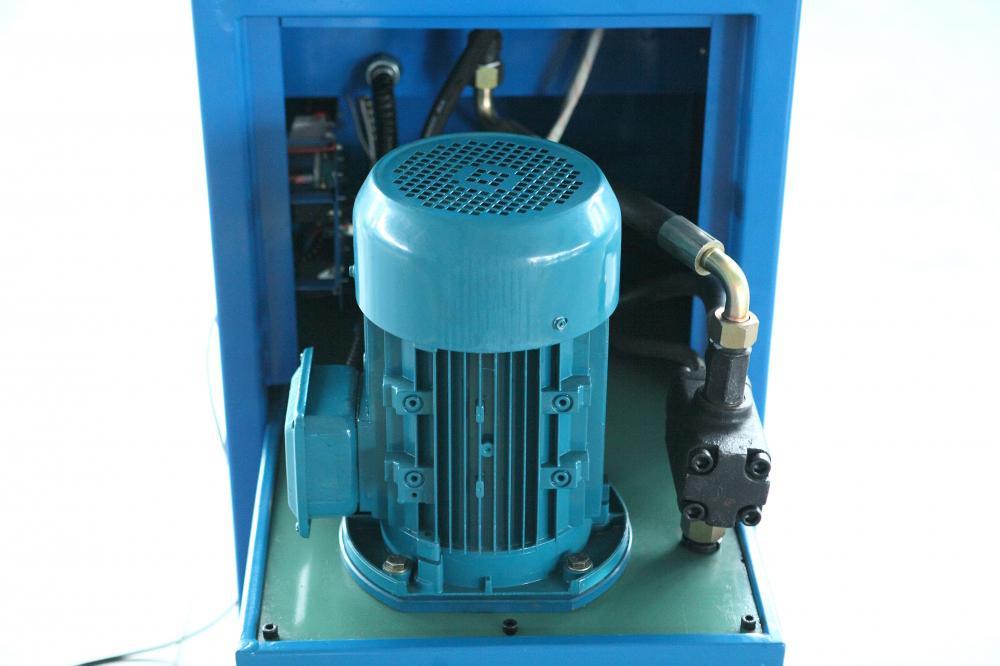

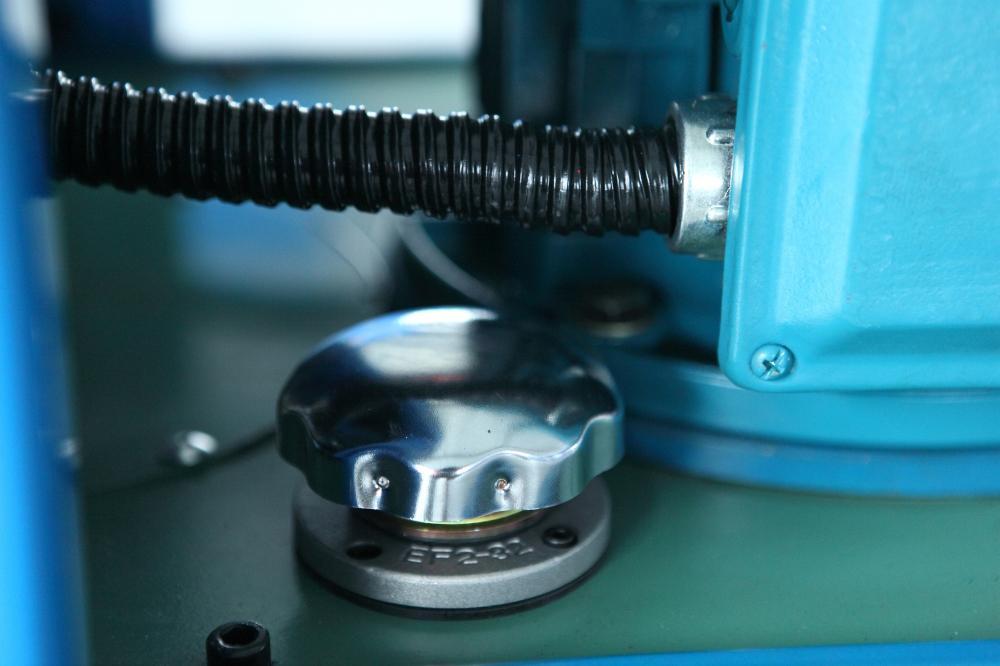

Hydraulic system
The Yongfeng patented hydraulic system is equipped with a huge hydraulic oil tank, and ensures a high recovery rate of oil circulation and good heat dissipation. The oil returns to the tank quickly and the crimping is efficient with stable pressure, making it suitable for mass production and processing of hydraulic hose assemblies.
