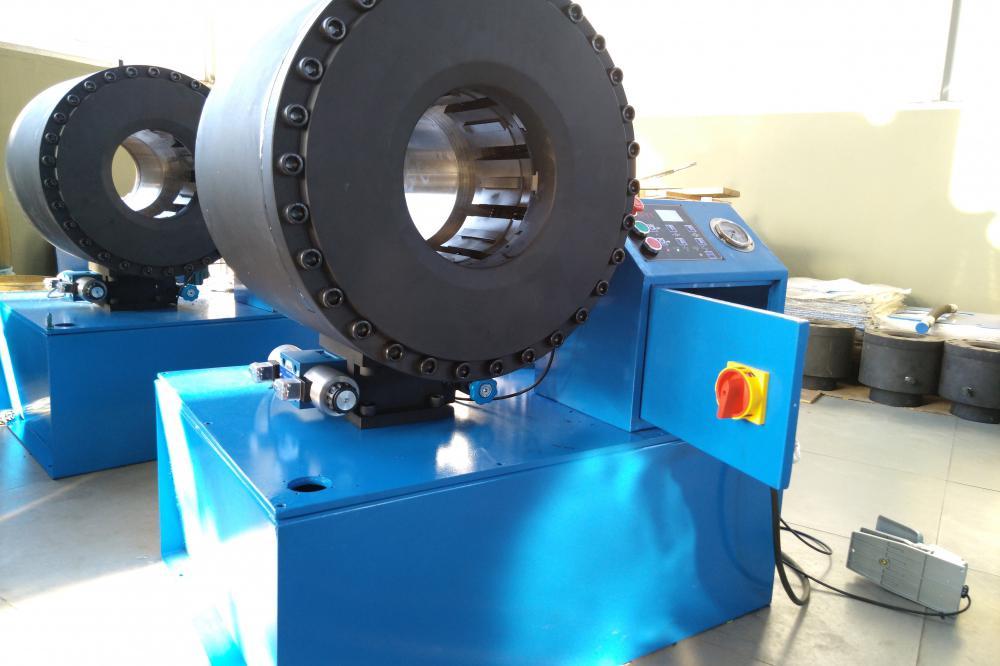

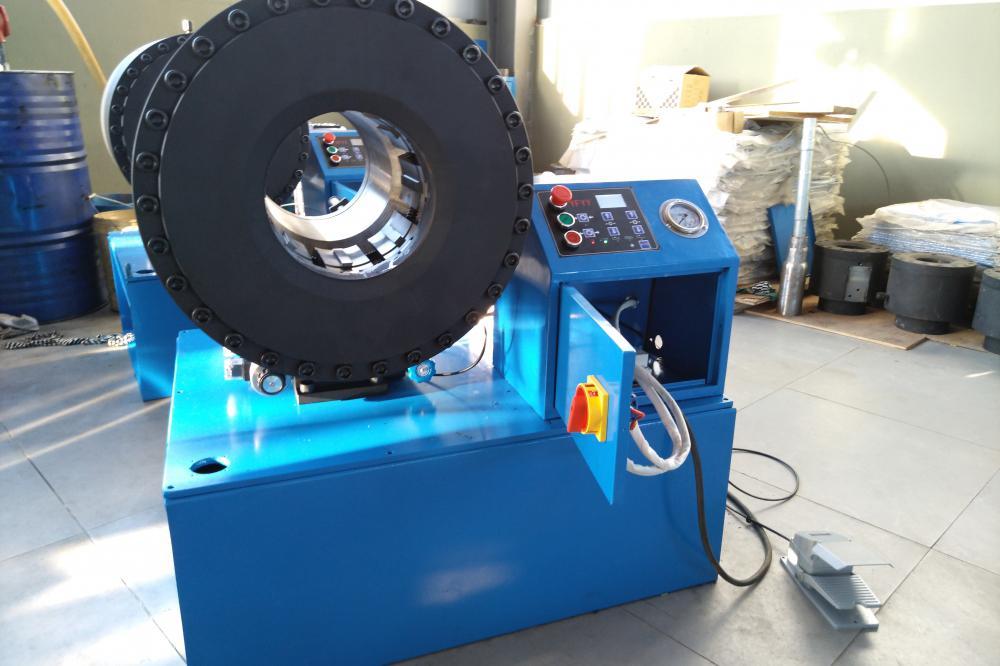

YONG-FENG F160D Crimping Machine for Industrial Hydraulic Hose
This product has been discontinued and removed from our shelves.
Application

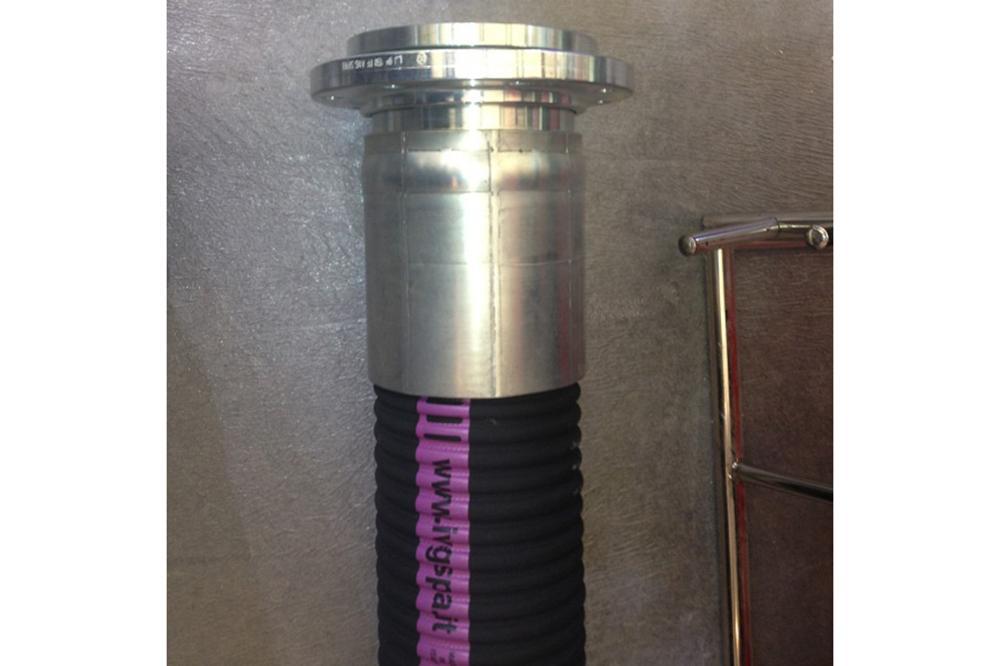

The crimp force of the YONG-FENG F160D Crimping Machine for Industrial Hydraulic Hose is 5800KN, with a crimp range of 6~127mm. Dies are customized according to client requirements. YONG-FENG F160D crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses and airbrake hoses.
Max. inner diameter
Industrial hoses: 5"
Hoses with 2 braided wires: 4"
Hoses with 4 spiral wires: 4"
| Crimp head material | FORGE STEEL |
| Crimp range | 6-127mm |
| Hose size | 4", 4SN |

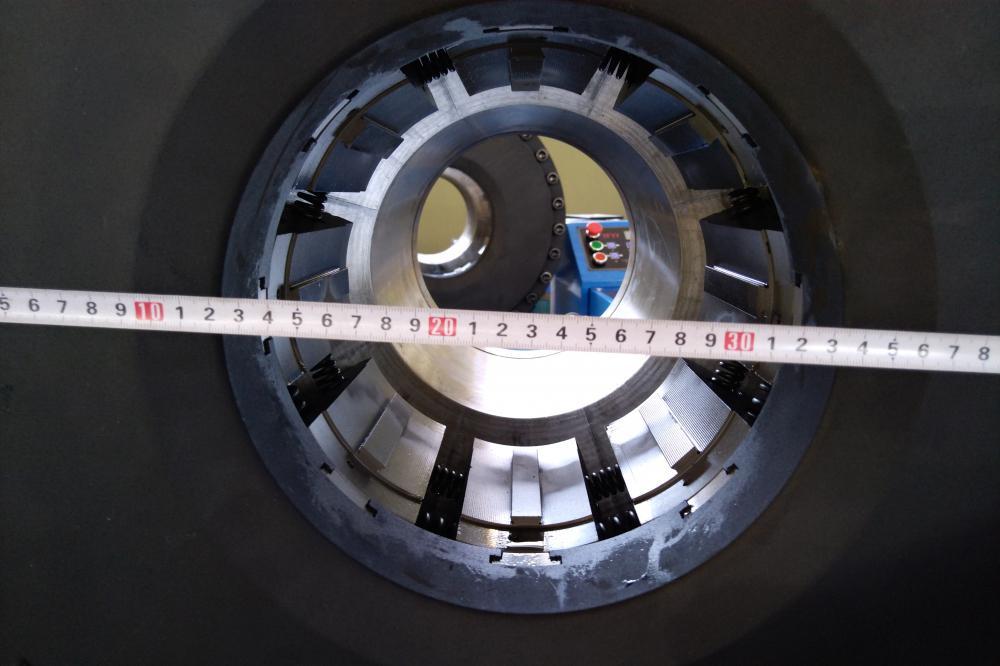

| Passing diameter | 152mm |
| Opening diameter | 160mm |
| Opening | +65mm |
| System pressure | 31.5Mpa |
| Crimp force | 5800kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | CNC |
| Standard dies | Customized |
| Weight | 650kg |
| L x W x H | 900*800*900mm |
Details

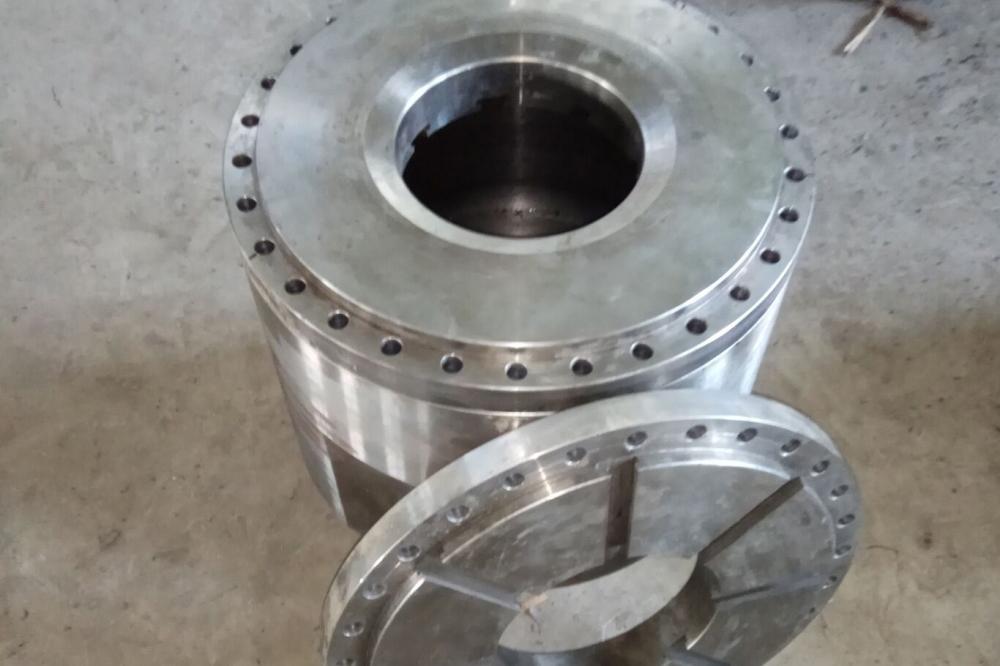

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and tear resistant with great impact absorbing and carrying capacity.
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction.

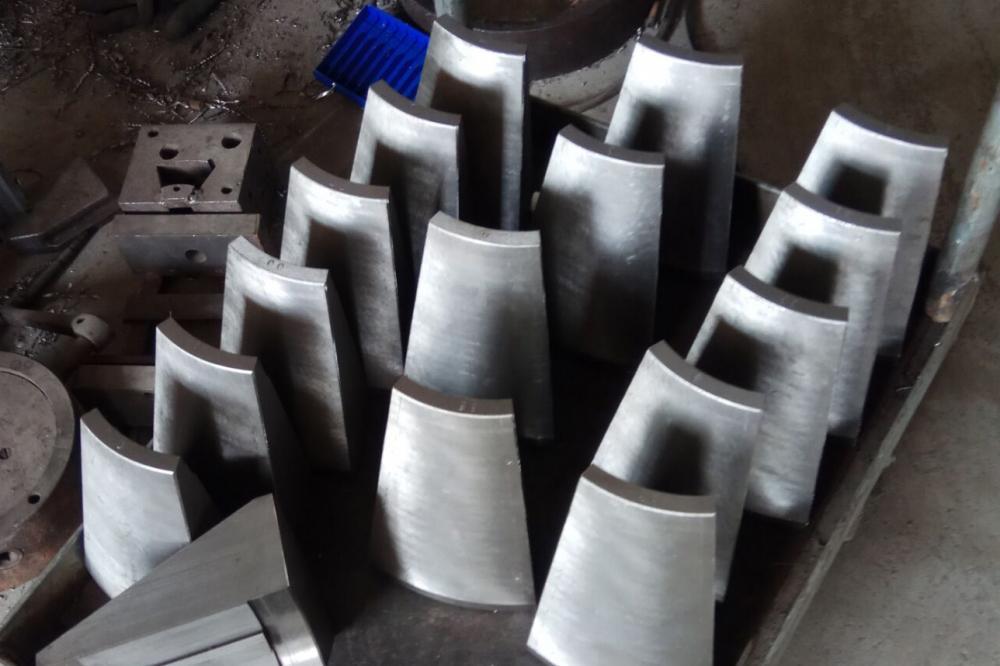

Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly, with a resulting nice and neat crimping.
