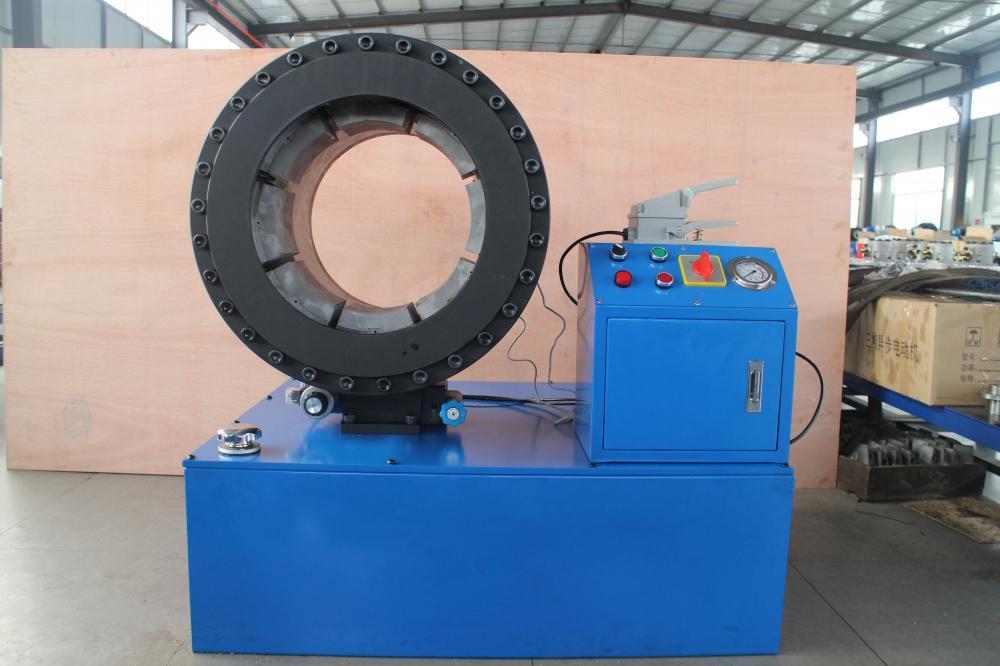

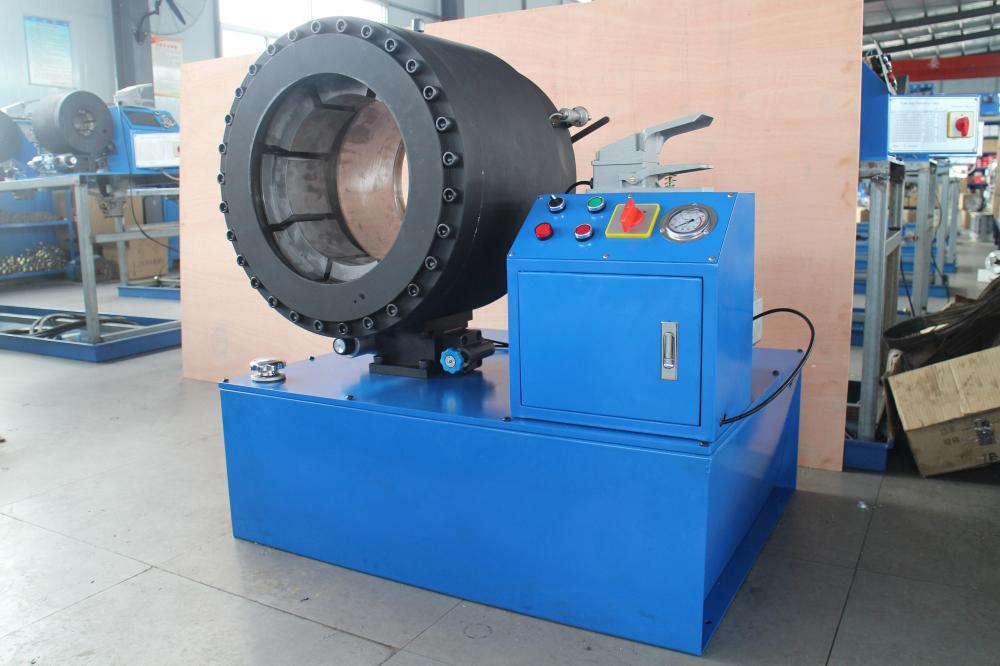

YONG-FENG F300 Crimping Machine for Industrial Hydraulic Hose
This product has been discontinued and removed from our shelves.
Application

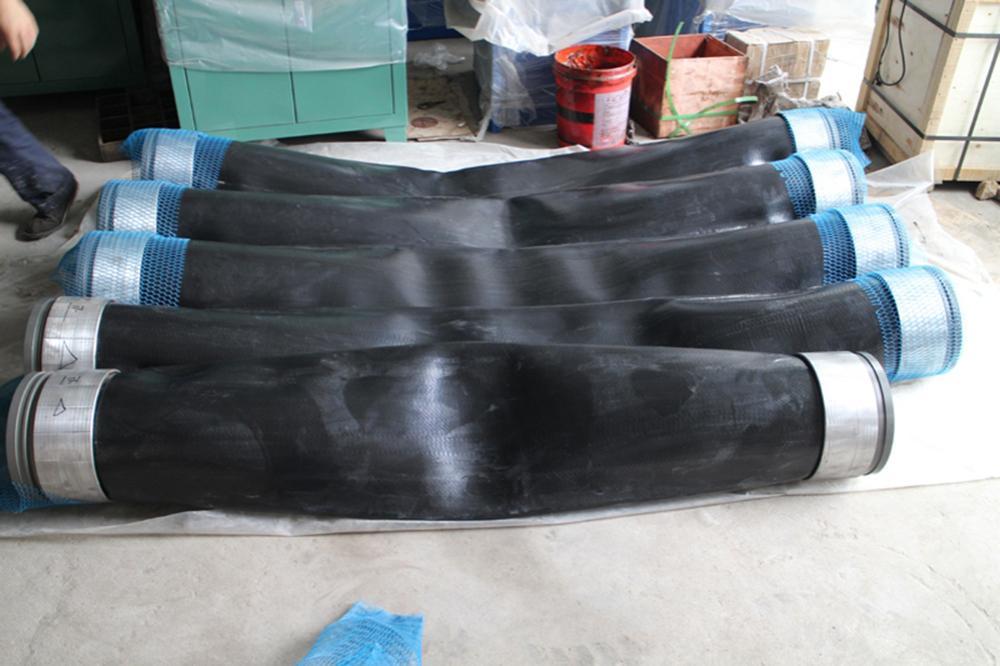

The crimp force of YONG-FENG F300 crimping machine for industrial hydraulic hose is 6000KN, with a crimp range of 51~280mm. Dies are customized according to clients' requirements. YONG-FENG F300 crimpers are widely used for crimping high-pressure fuel pipes and some low-pressure hoses.
Max. inner diameter

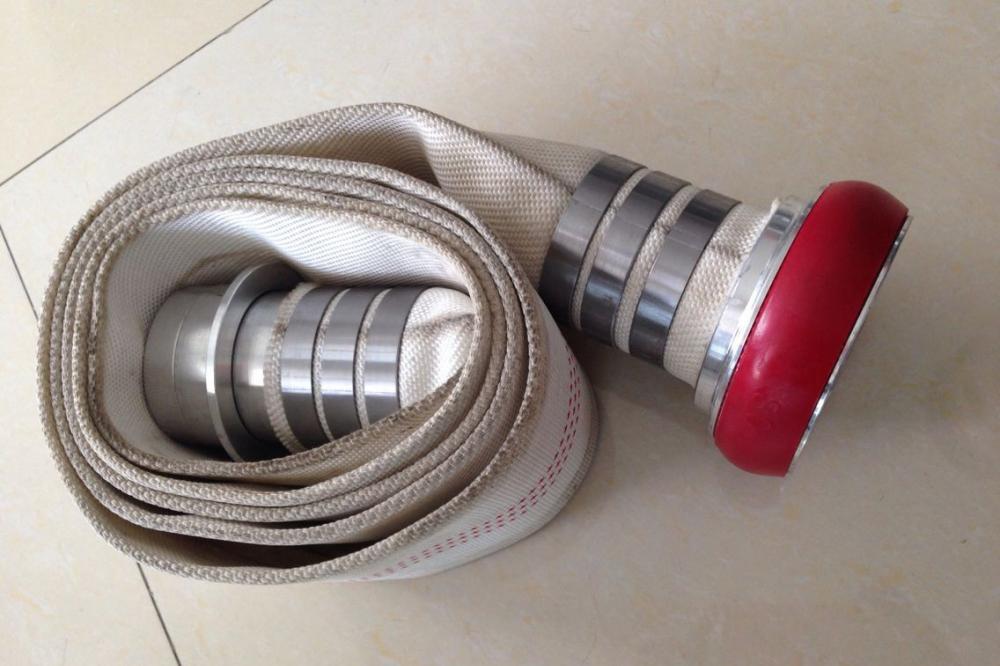

Industrial hoses: 10"
Hoses with 2 braided wires: 10"
| Crimp head material | FORGE STEEL |
| Crimp range | 51-280mm |
| Hose size | 10" |

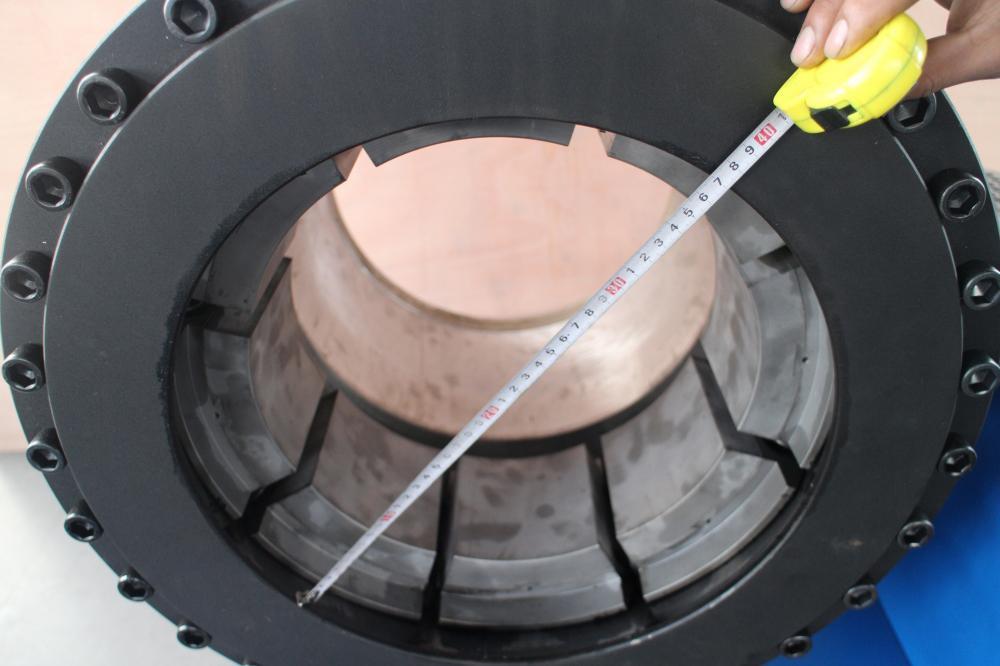

| Passing diameter | 300mm |
| Opening diameter | 300mm |
| Opening | +100mm |
| System pressure | 31.5Mpa |
| Crimp force | 6000kN |
| Drive | 7.5kw |
| Standard voltage | Customized |
| Control | Full automatic |

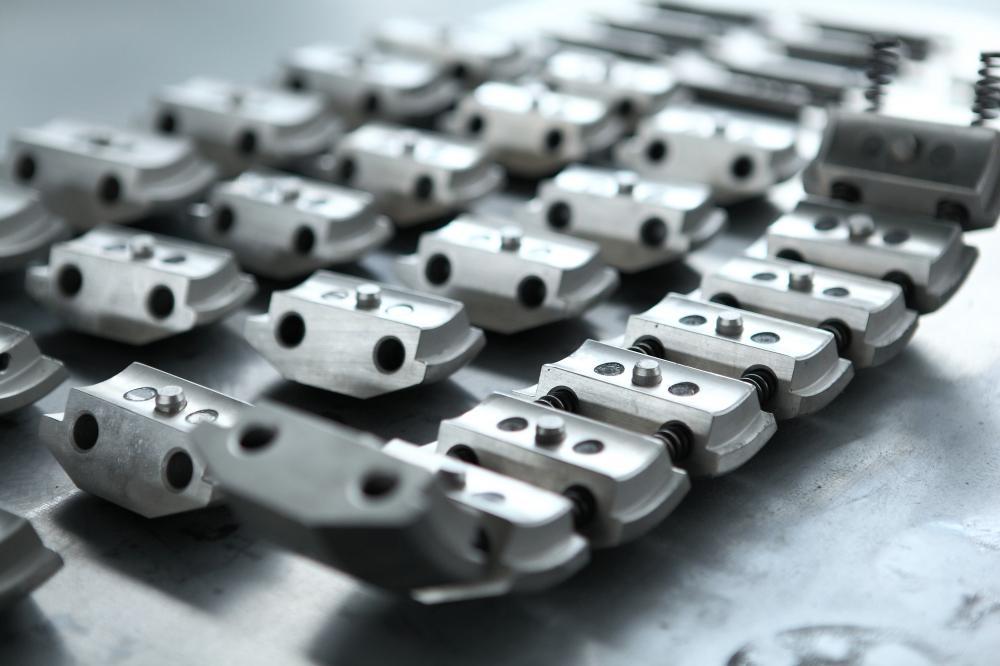

| Standard dies | Customized |
| Weight | 800kg |
| L x W x H | 1100*850*1100mm |
Details

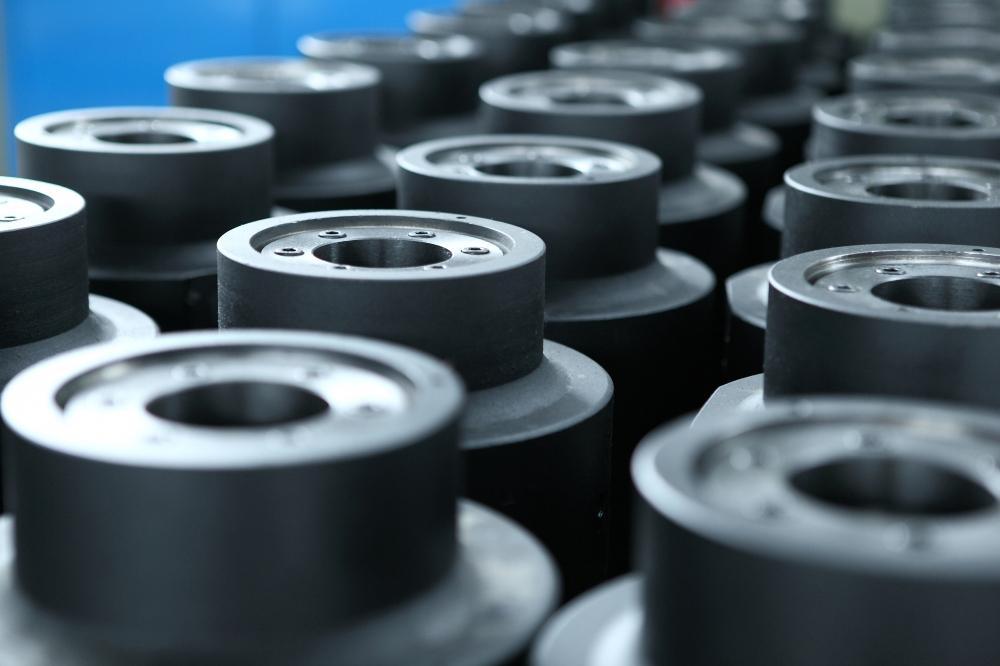

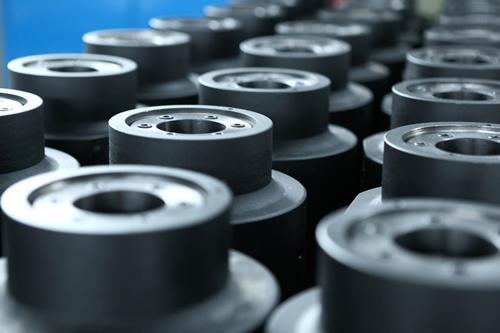

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63.

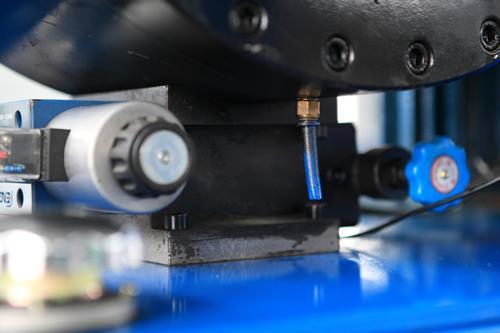

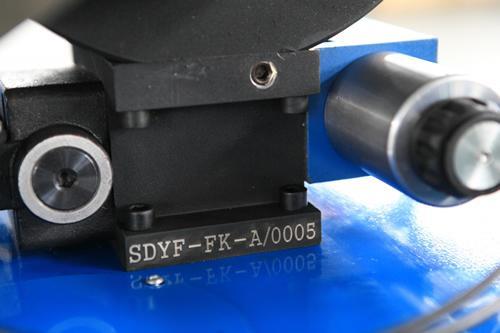

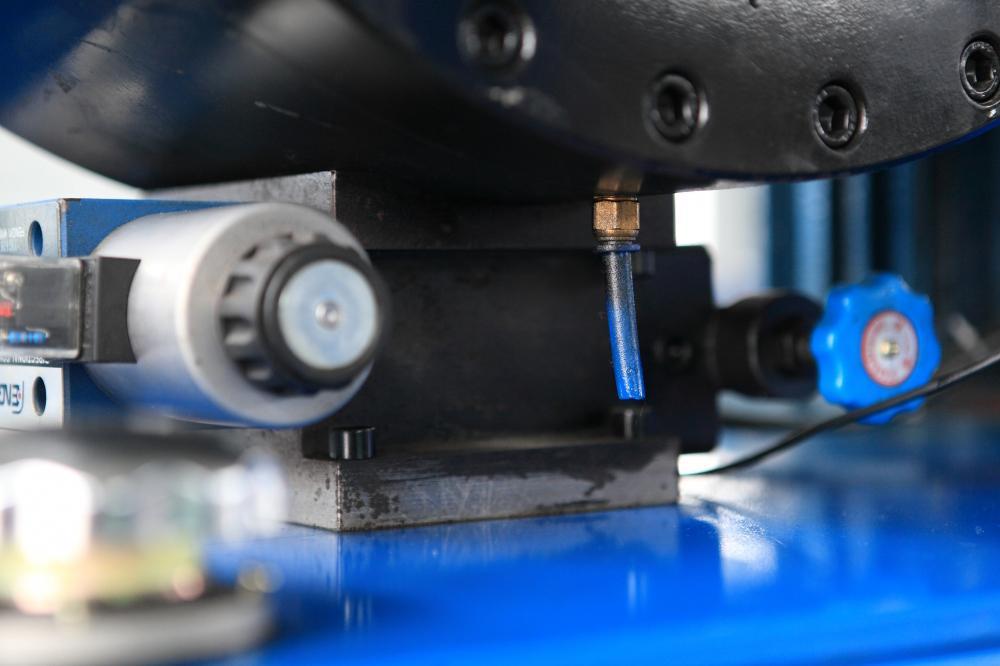

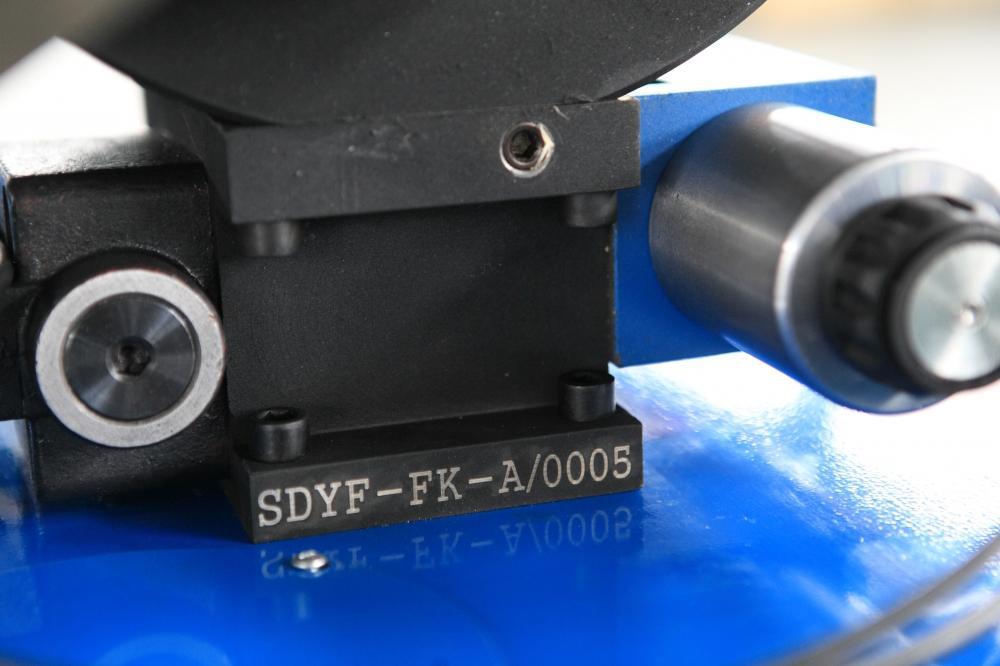

With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction, thus improving the overall performance.
