Application

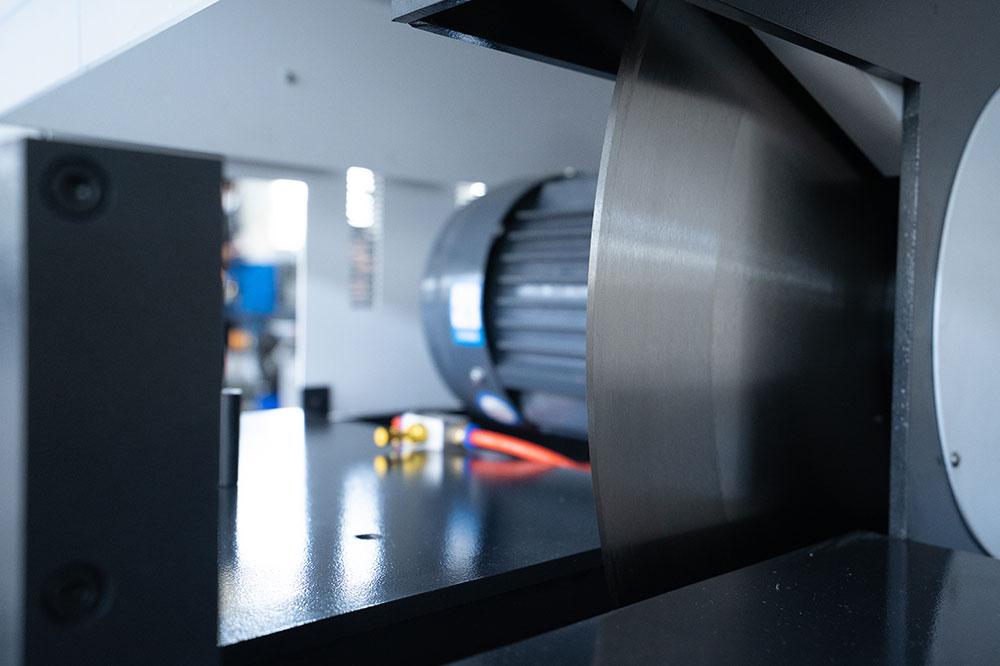

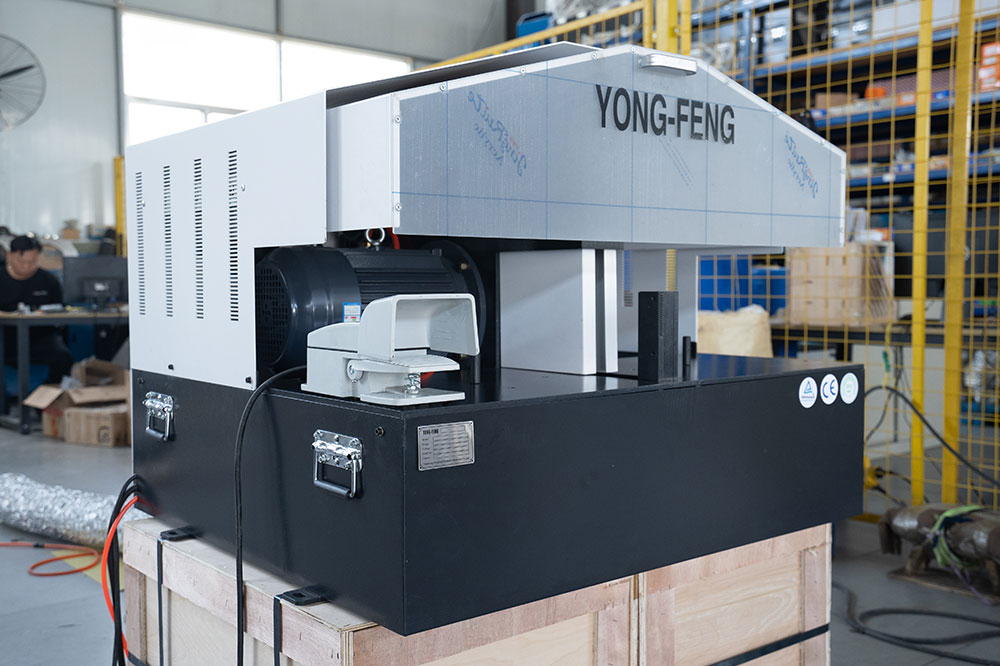

Yong-Feng YC76 automatic pneumatic hose cutting machine driven by 110V-480V AC is used to cut hose with the inner diameter up to 3 inch. It can be connected with pneumatic pumps to automatically cut hose and thus it largely reduces labor cost. To protect operators and the environment, the hose cutting machine is equipped with a safety shield and a smoke pipe.
Cutting range | 6-76mm |
Hose size | 3"4SP /2"6SP |
Drive | 3kw |
Standard voltage | Customized |
Control | Pneumatic automatic |
Weight | 249 kg |
Cutting blade | 2 pcs |
Safety shield | Included |
Pneumatic input | 6-8 bar |
Blowing and fume extraction | Available |
L x W x H | 955*1020*780mm |
