Application

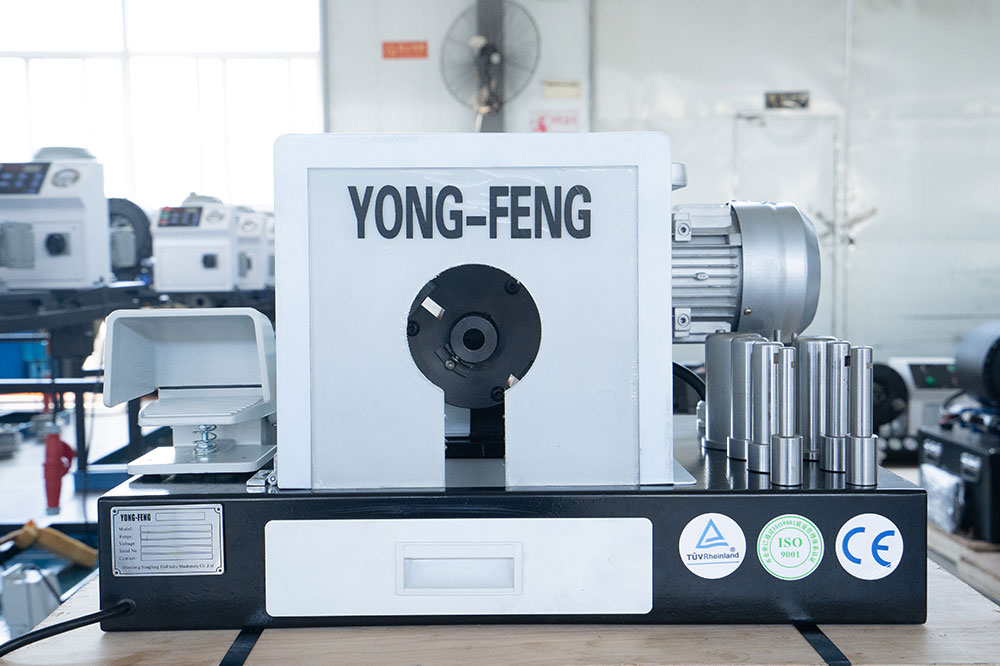

The YONG-FENG YS51 automatic hose skiving machine is mainly used to skive the inner and outer rubber layers of hydraulic hoses. The skiving is fast, neat and nice. The skive range is 6~51mm. The voltage can be customized.
Specification
Skive range
6-51mm
Hose size
2", 4SN
Drive
0.75kw
Standard voltage
Customized
Control
Automatic
Weight
45kg
L x W x H
600*400*370mm
Details

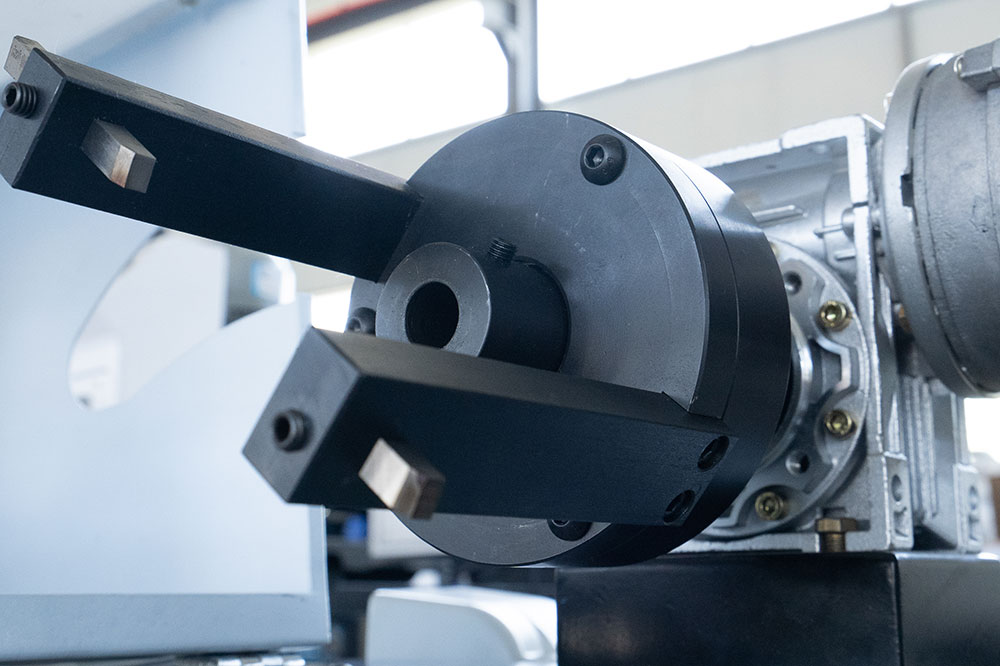

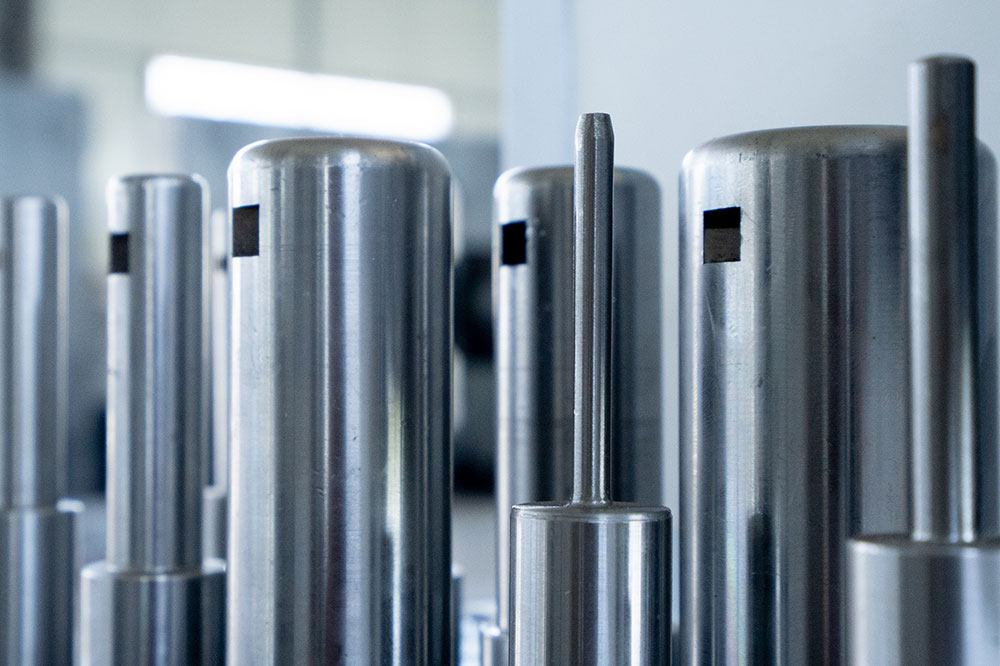

Dies
Reducer

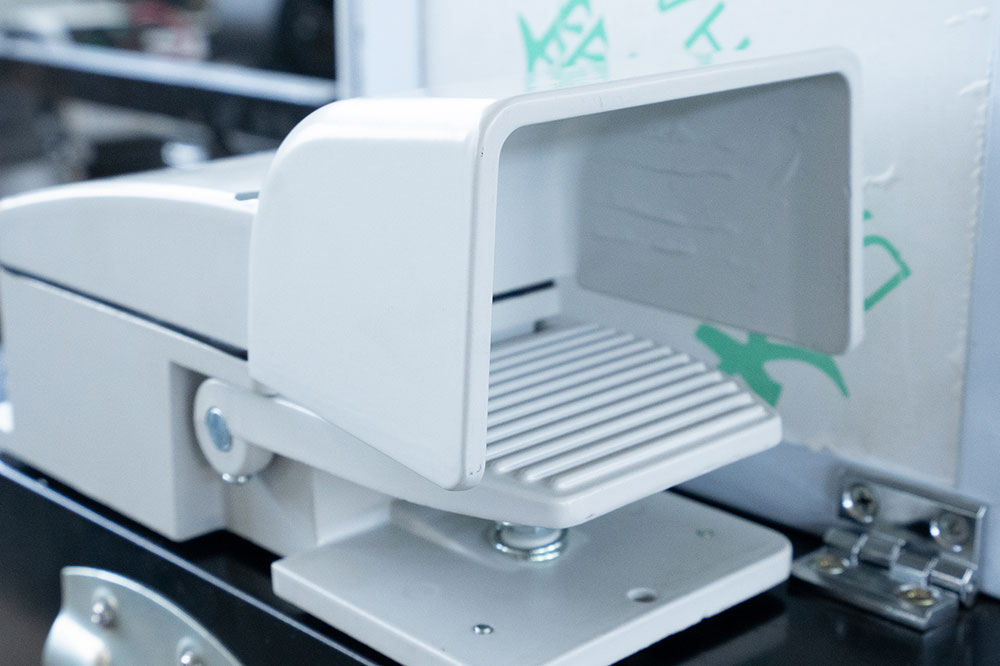

Pedal
Feature
The skiving machine is highly automatic, with a neat, efficient skiving performance.

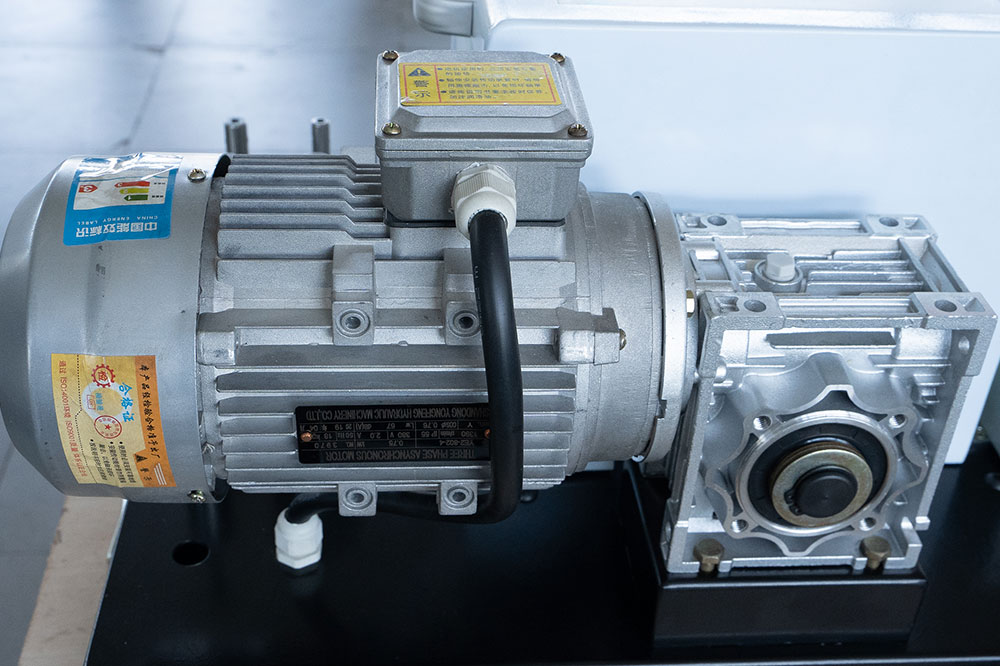

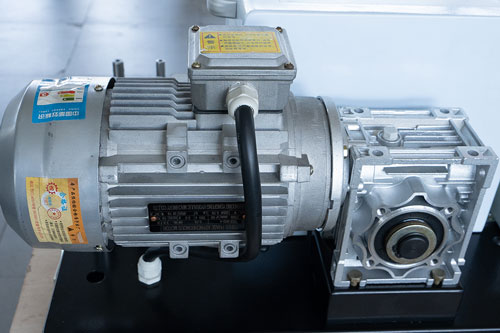

The YONG-FENG YS51 automatic hose skiving machine is equipped with a reducer to stabilize the speed.
For the sake of safety, the machine will automatically cease operation if the protective cover is removed.
