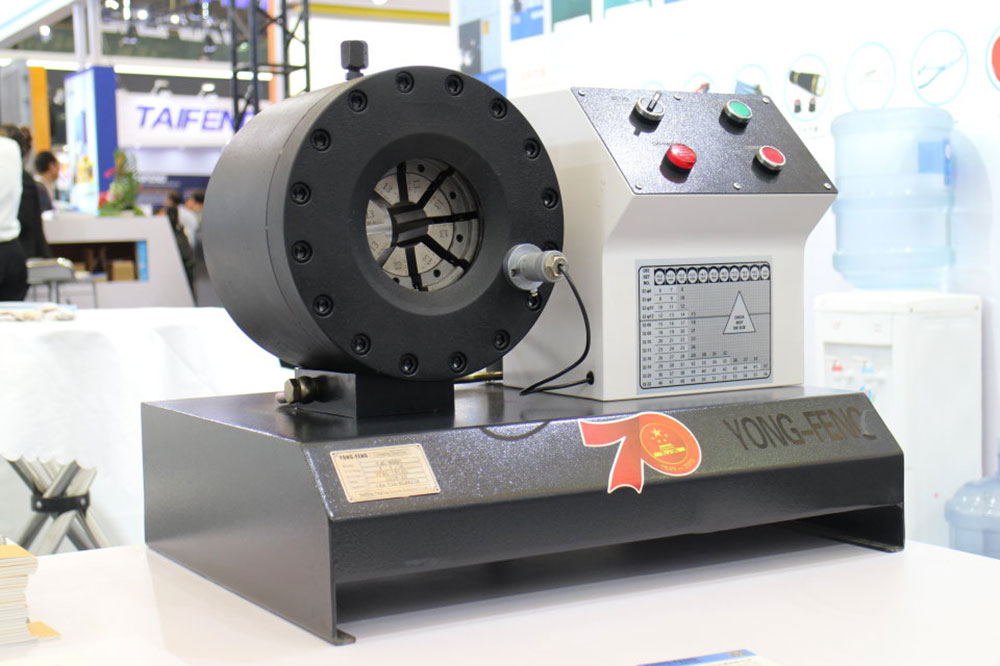

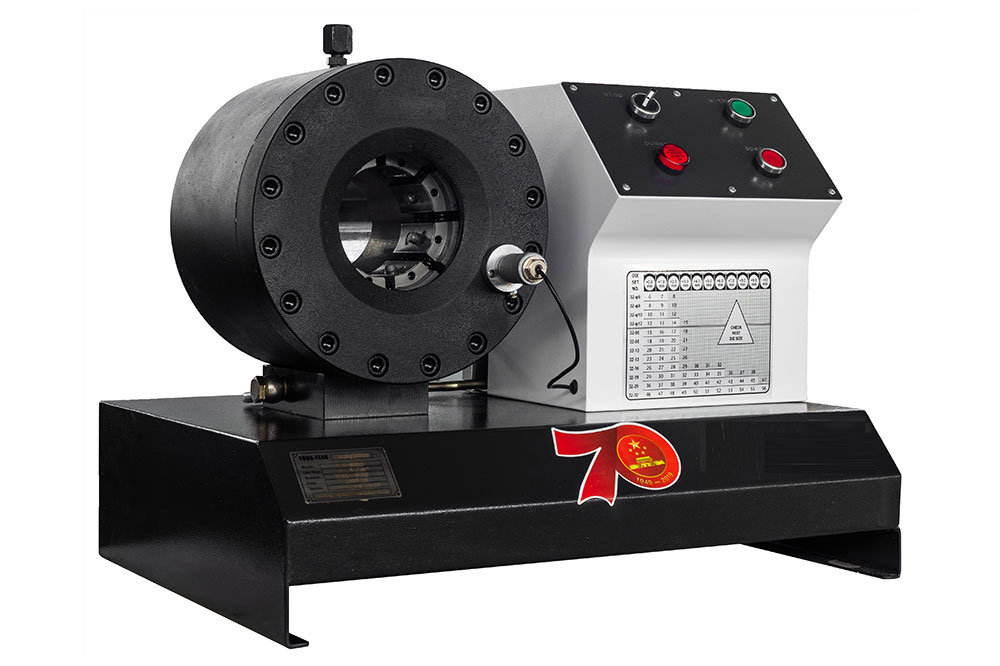

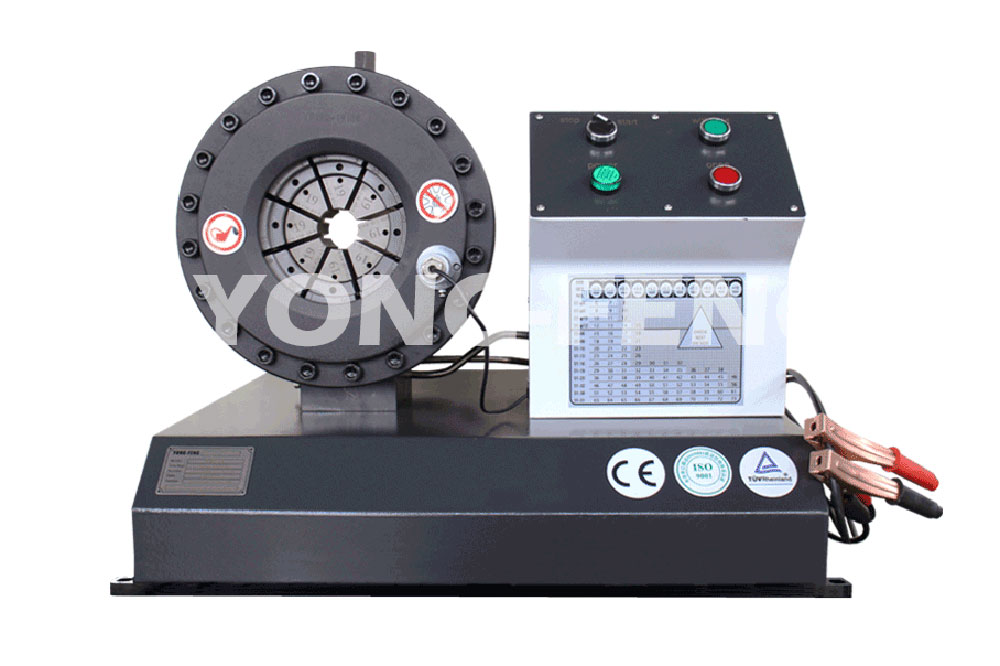

YONG-FENG Y51V Hydraulic Hose Crimper Machine

YONG-FENG Y51V Hydraulic Hose Crimper Machine

Application

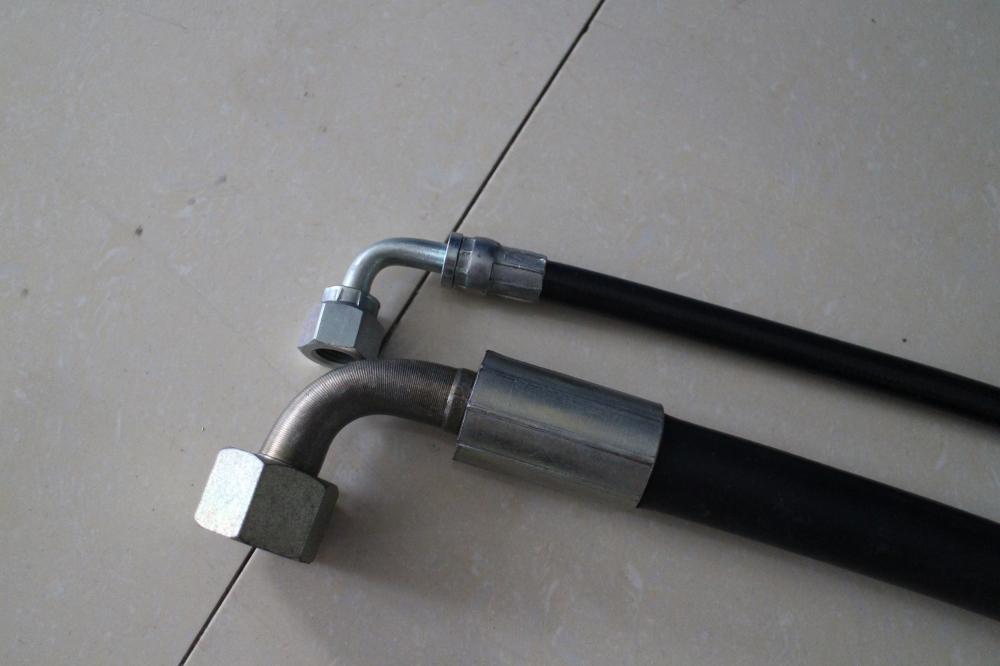

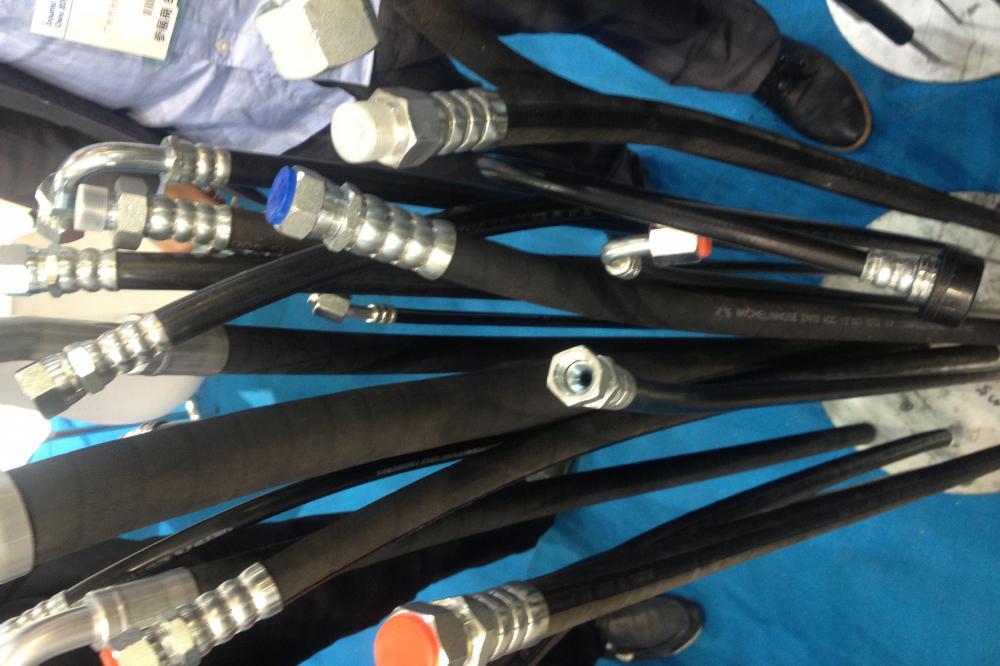

The YONG-FENG Y51V Hydraulic Hose Crimper Machine is powered by 12V/24V DC, which average vehicle batteries can deliver. The crimp force is 2000kN and the crimp range is 6~73mm. The crimper is equipped with 10 sets of standard dies. It is widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses and automobile brake cables, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"

Specification
Crimp head material FORGE STEEL
Crimp range 6-73mm
Hose size 2", 4SN
Passing diameter 118mm
Opening diameter 118mm
Opening +25mm
System pressure 31.5Mpa
Crimp force 2000kN
Drive 3 kW
Standard voltage 12v/24v
Control Full automatic
Standard dies 10 sets
Weight 165kg
L x W x H 600*460*500mm
Customized special die Included
Instruction book Included

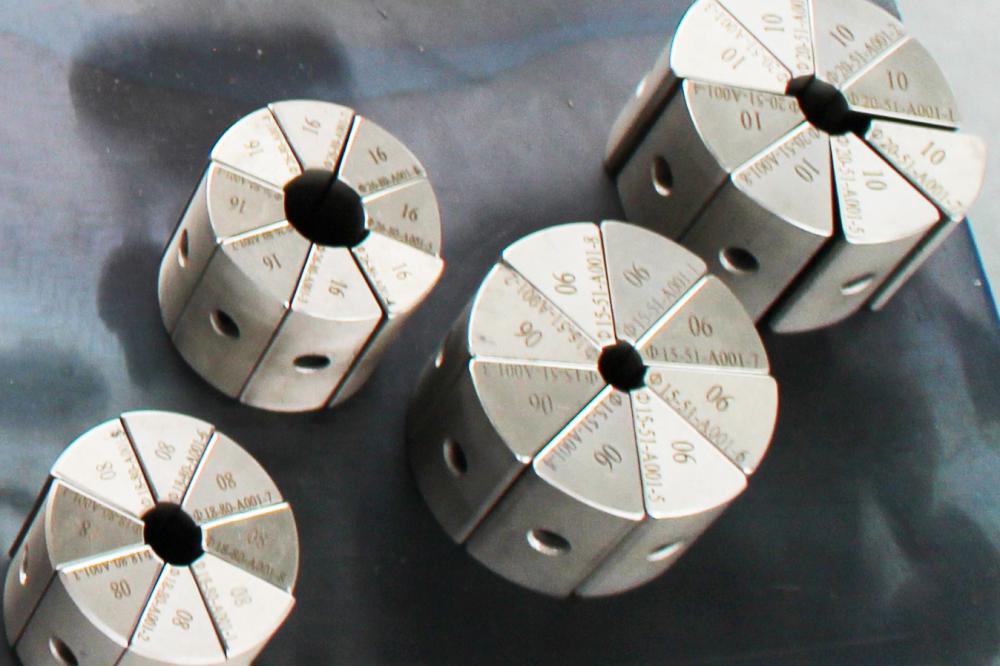

Specification of dies
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32 Φ38 Φ51
Crimp range 15-25mm 18-28mm 20-30mm 23-33mm 26-36mm 29-39mm 37-47mm 46-56mm 51-61mm 63-73mm
Length 45mm 45mm 45mm 50mm 65mm 65mm 80mm 80mm 80mm 80mm

Feature

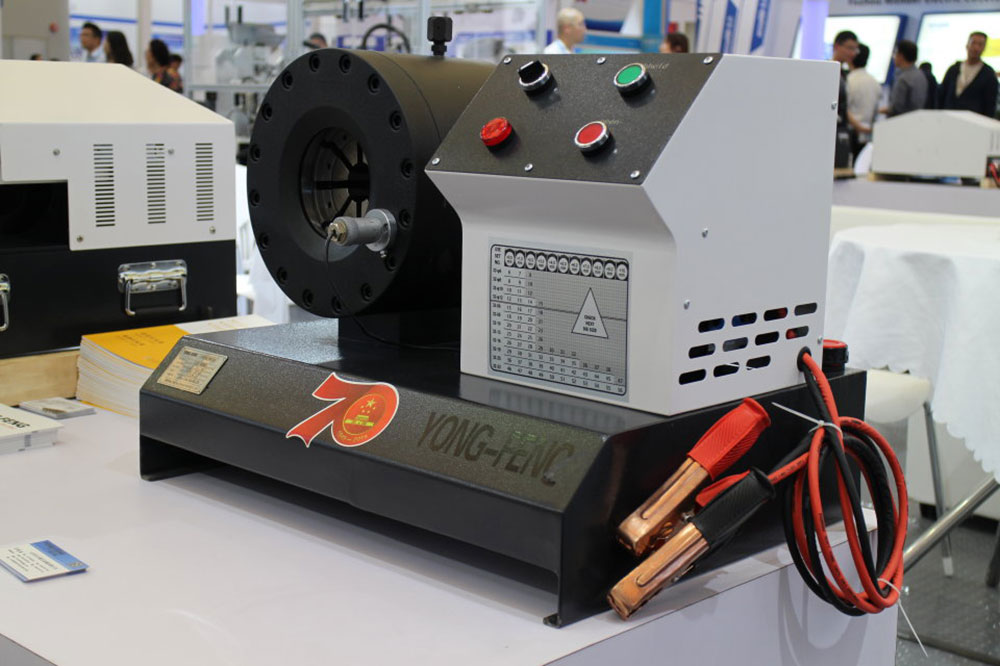

Vehicle mounted crimping machine
Compared with the hand operated model, the vehicle mounted crimper saves manpower and delivers greater stable crimping force. The vehicle mounted crimper has great advantages for mobile mechanical maintenance and outdoor hose crimping with no AC power supply. The YONG-FENG Y51V Hydraulic Hose Crimper Machine is powered by 12V/24V DC so there are few environmental constraints.

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30, which makes the oil tank and piston rod are more durable.

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight with little heat and stable pressure conduction, and greatly improves the performance of the crimping machine.

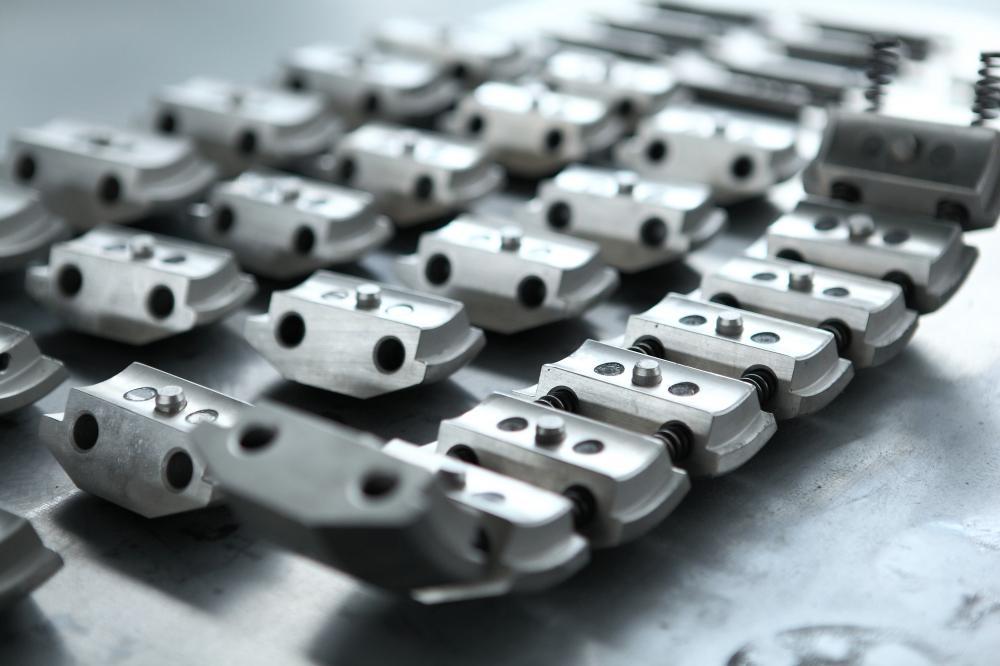

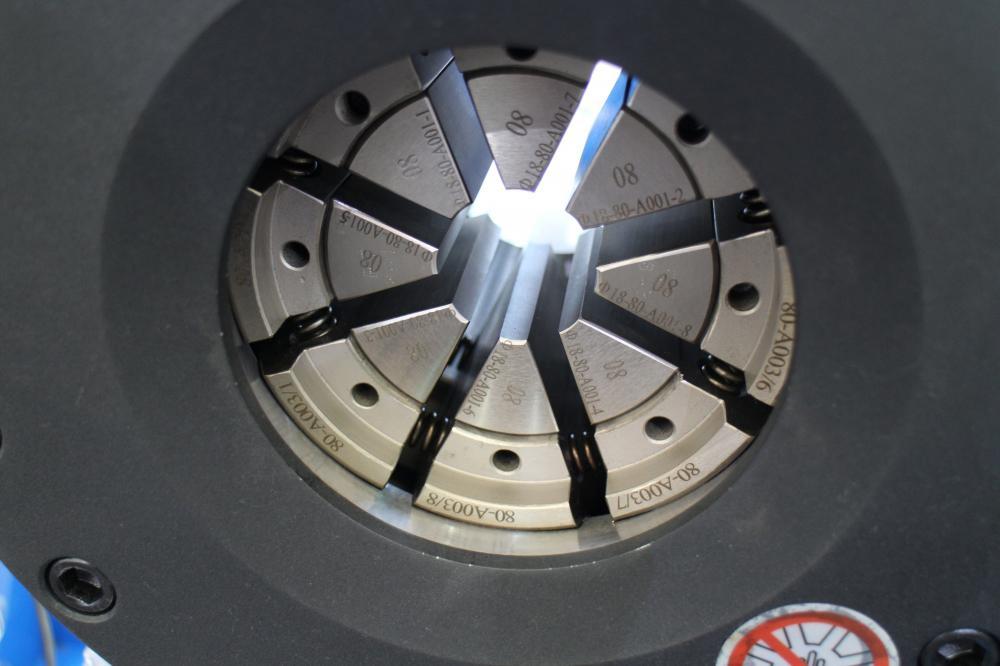

Die connection
Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly. Also, the magnetic connection enables automatic positioning, and the crimping is neat.
