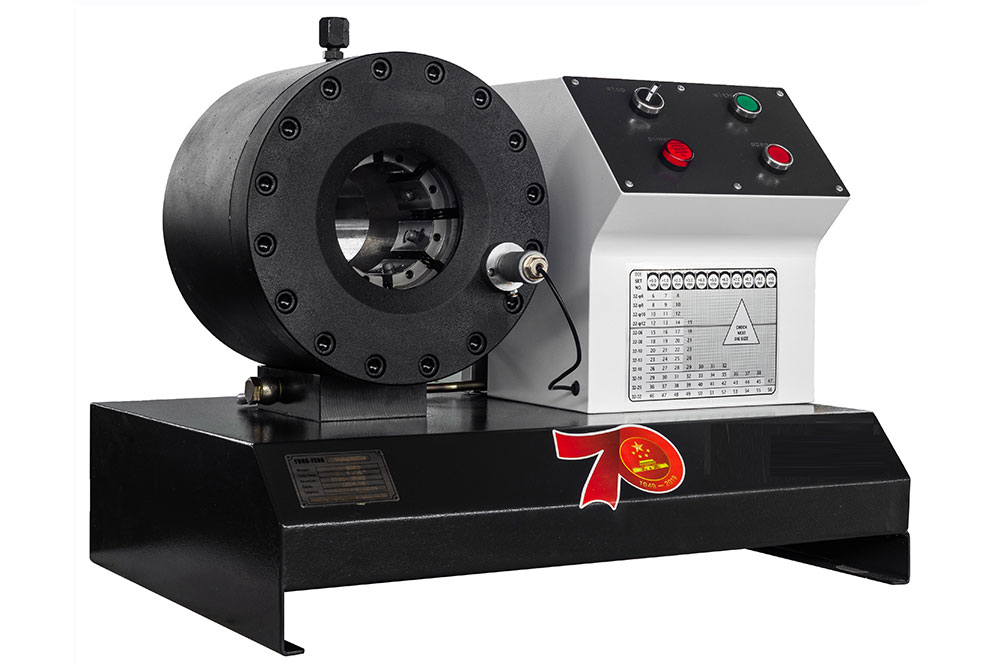

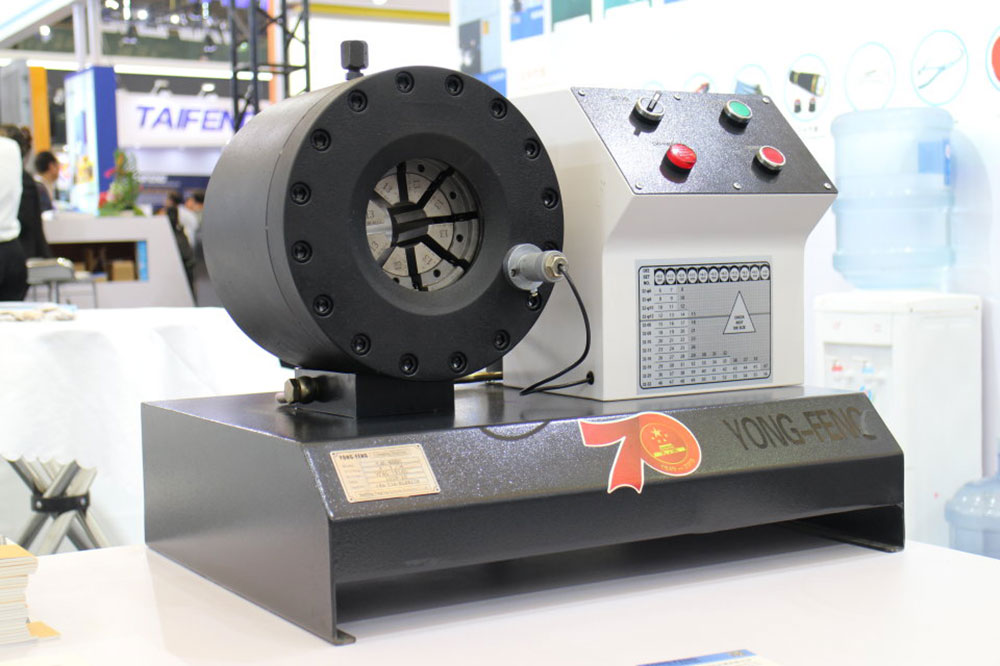

YONG-FENG Y32V Hydraulic Hose Crimper Machine

YONG-FENG Y32V Hydraulic Hose Crimper Machine

Application

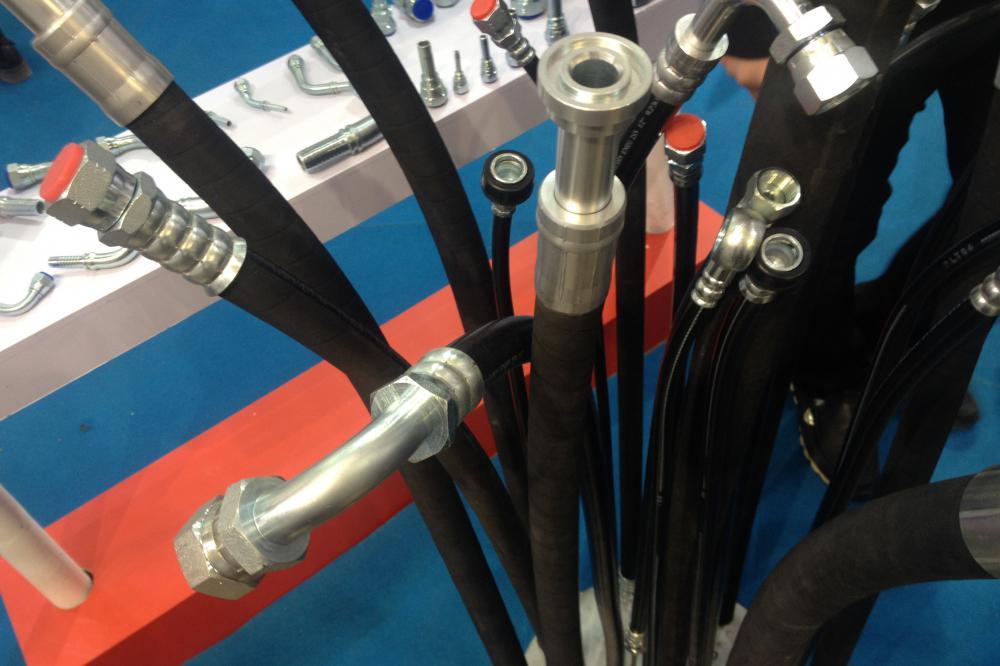

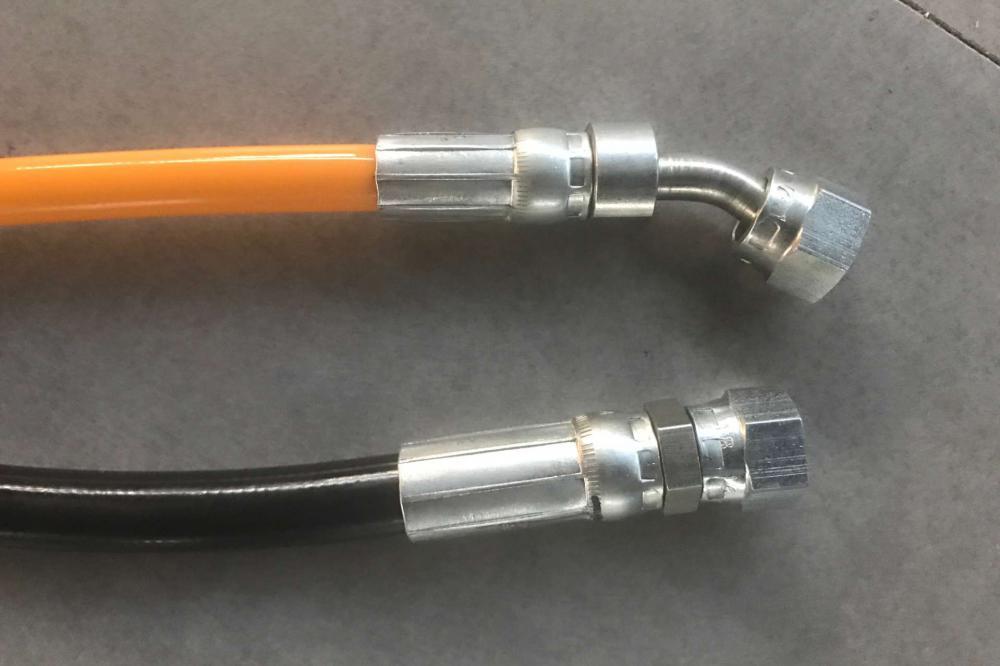

The YONG-FENG Y32V hydraulic hose crimper machine is powered by 12V/24V DC and is mainly used for outdoor mobile mechanical maintenance. The crimp force is 1750kN and the crimp range is 6~56mm. The crimper is equipped with 8 sets of standard dies. It is widely used for crimping high-pressure fuel pipes, hydraulic hoses, wire ropes and automobile brake cables, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 2"
Hoses with 2 braided wires: 1½"
Hoses with 4 spiral wires: 1¼"

Specification
Crimp head material FORGE STEEL
Crimp range 6-56mm
Hose size 1¼", 4SN
Passing diameter 90mm
Opening diameter 96mm
Opening +21mm
System pressure 31.5Mpa
Crimp force 1750kN
Drive 3 kW
Standard voltage 12v/24v
Control Full automatic
Standard dies 8 sets
Weight 140kg
L x W x H 600*460*500mm
Customized special die Included
Instruction book Included

Specification of dies
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32
Crimp range 15-25mm 18-28mm 20-30mm 23-33mm 26-36mm 29-39mm 37-47mm 46-56mm
Length 65mm 65mm 65mm 65mm 65mm 65mm 70mm 70mm

Feature

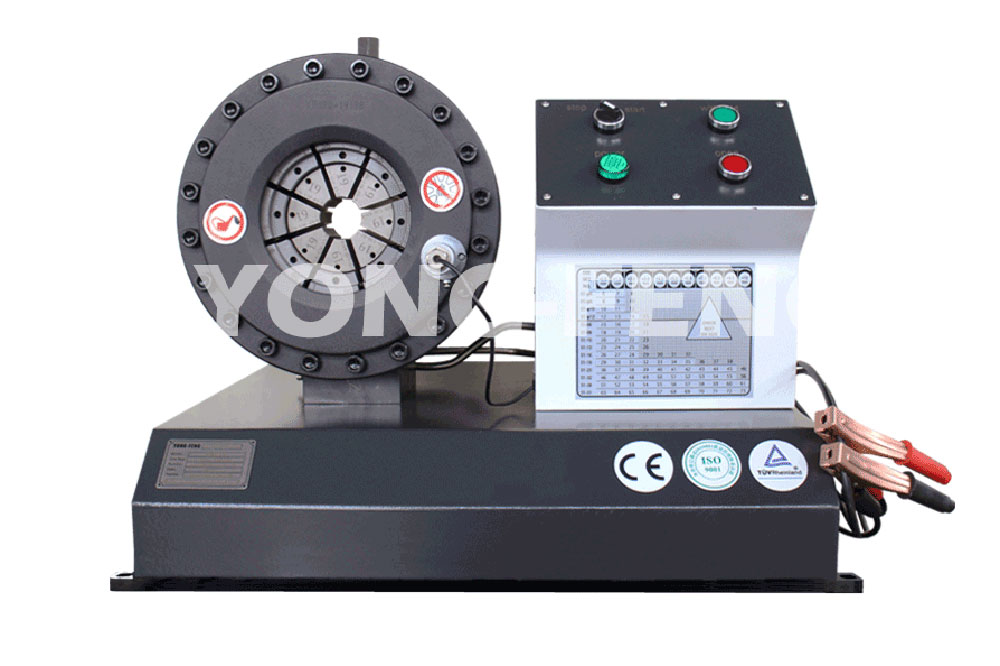

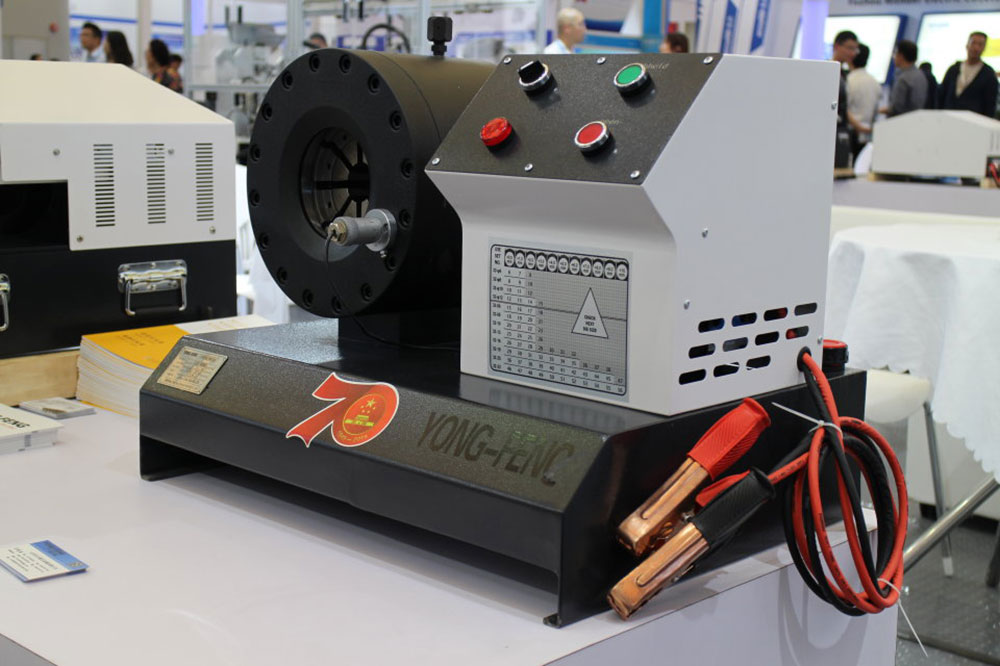

Vehicle mounted crimping machine
  • The vehicle mounted crimping machine has great advantages for mobile mechanical maintenance and outdoor hose crimping with no AC power supply.
  • The YONG-FENG Y32V hydraulic hose crimper machine is powered by 12V/24V DC. Average vehicle batteries can meet the power requirements of the crimper. There are few environmental constraints.
  • The crimper is small in size and easy to move.
  • Compared with the hand operated model, the vehicle mounted crimper saves manpower with greater stable crimping force.

Material
The oil cylinder cover, oil tank and piston rod are made from 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight with little heat buildup, stable pressure conduction and great longevity.

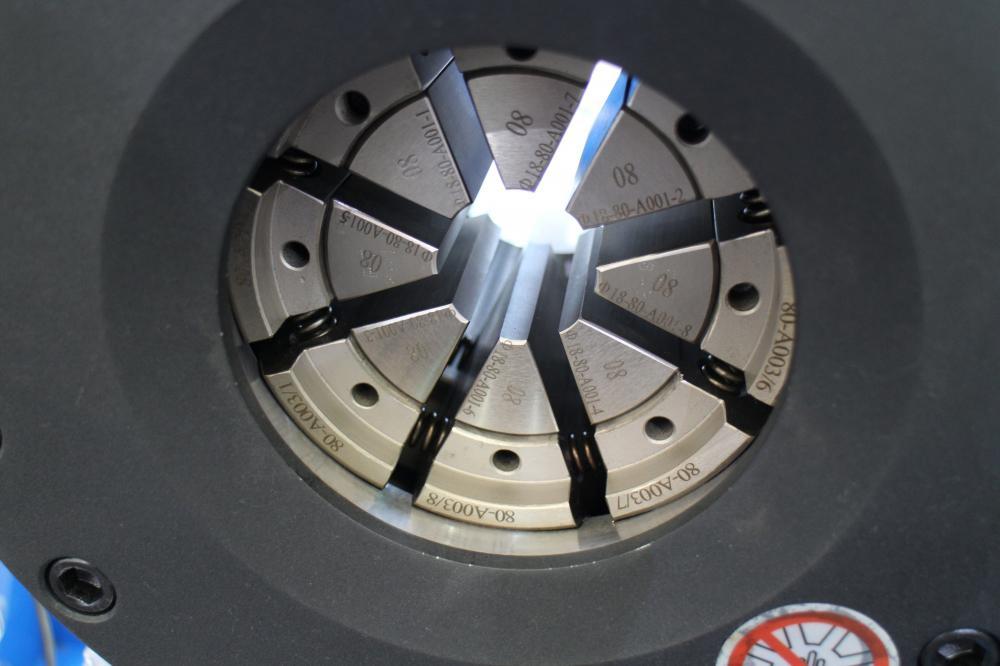

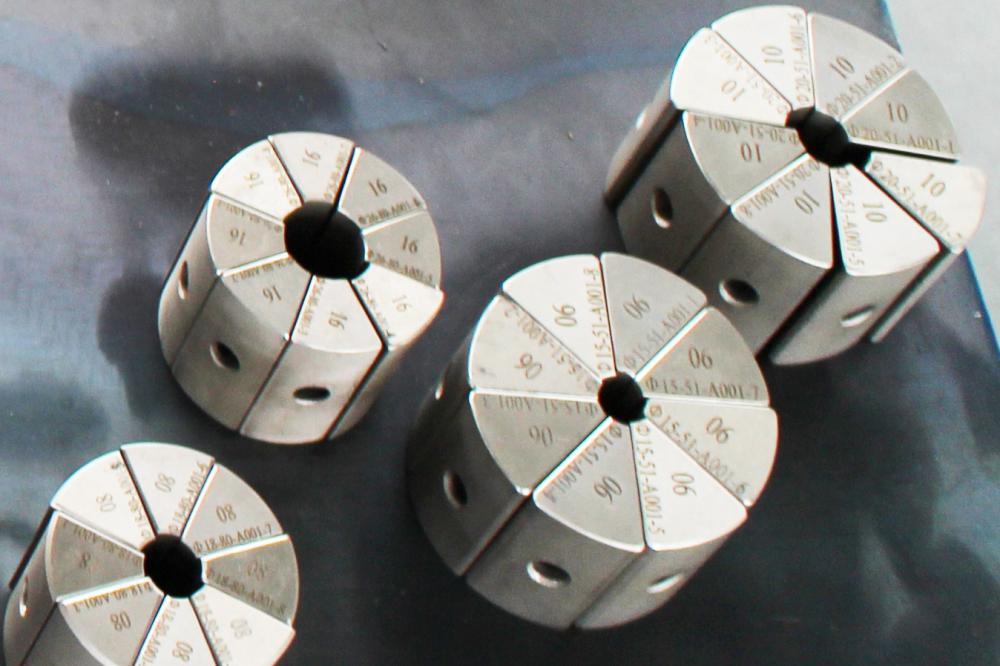

Die connection

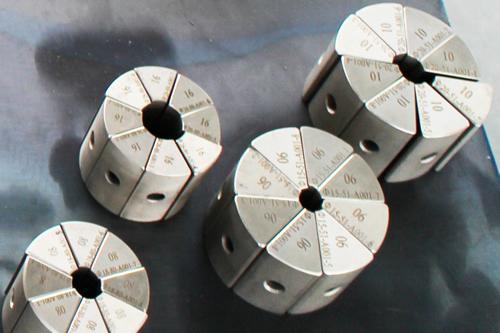

Our dies are made of Cr12 die steel and connected through magnetism, which make it convenient for assembly and disassembly. The crimping is neat.
