YONG-FENG Y80 Hydraulic Hose Crimping Machine

YONG-FENG Y80 Hydraulic Hose Crimping Machine

Application

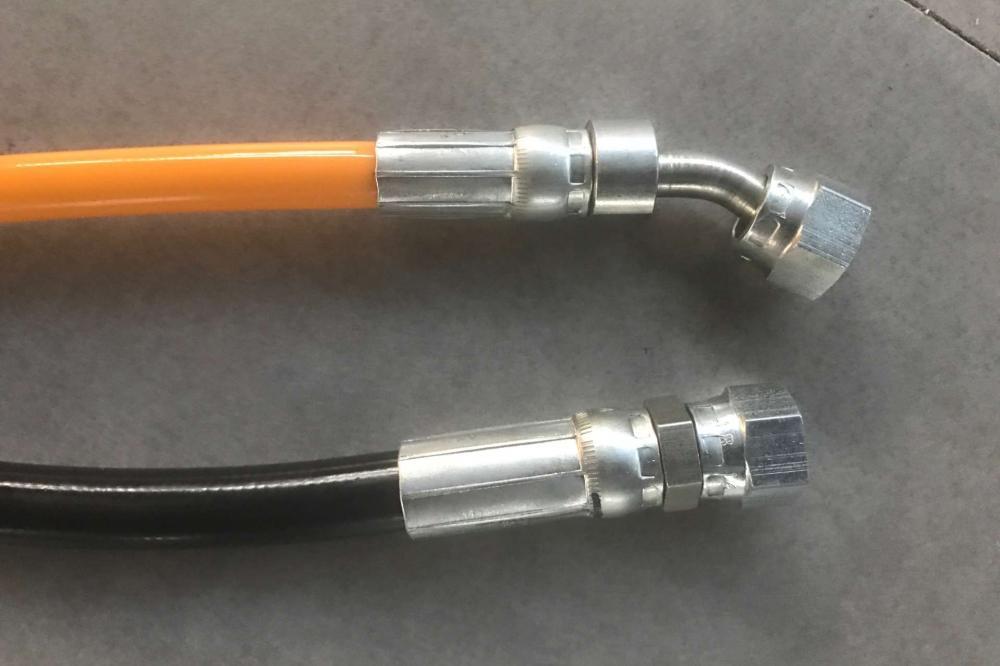

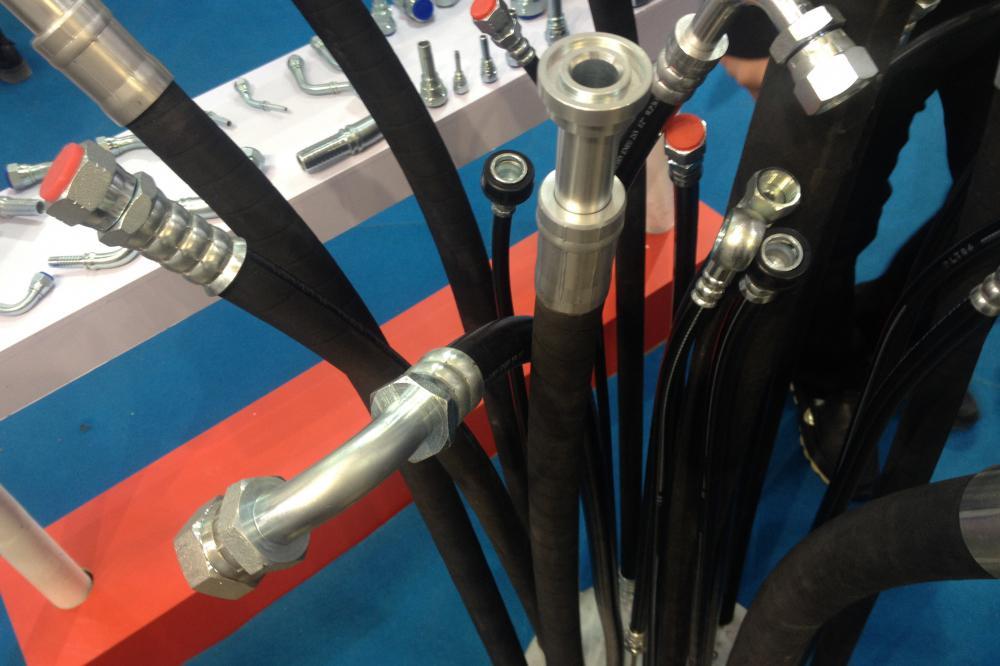

The crimping force of the YONG-FENG Y80 hydraulic hose crimping machine is 1750kN, with a crimp range of 6~56mm and 8 sets of standard dies. YONG-FENG Y80 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses, bathroom hoses, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 2"
Hoses with 2 braided wires: 1½"
Hoses with 4 spiral wires: 1¼"
Low pressure hoses φ6, φ8, φ10, φ12

Specification
Crimp head material FORGE STEEL
Crimp range 6-65mm
Hose size 1¼", 4SN
Max. Crimp range 90mm
Opening without dies 96mm
Opening +21mm

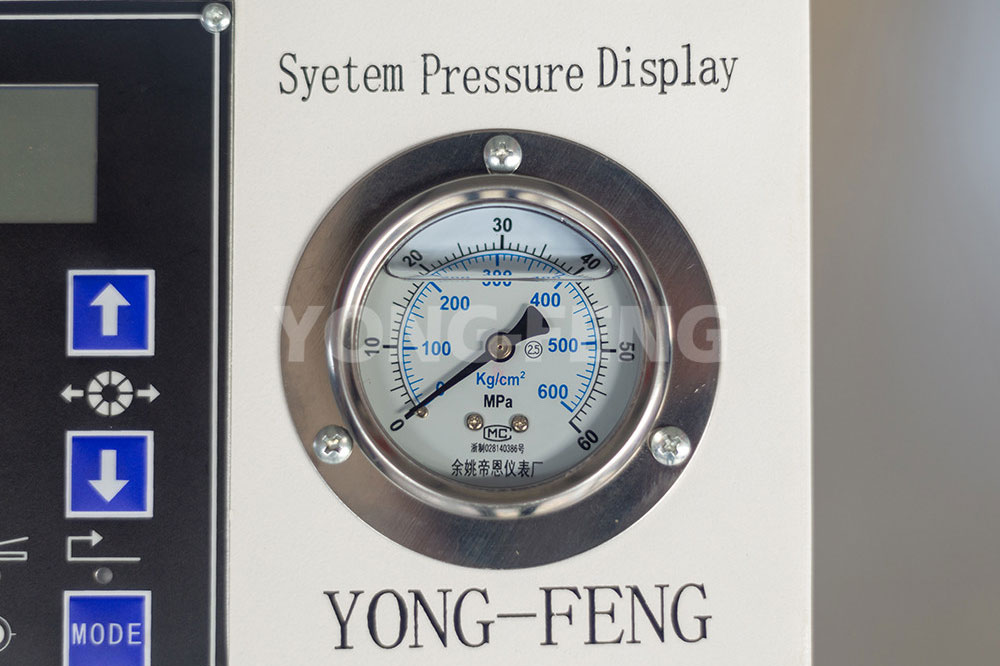

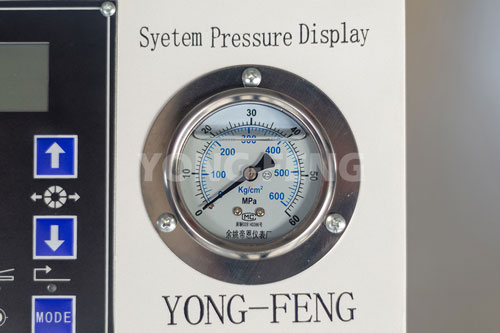

System pressure 31.5Mpa
Crimp force 1750kN
Drive 3kw/4kw
Standard voltage Customized
Control Digital CNC with display

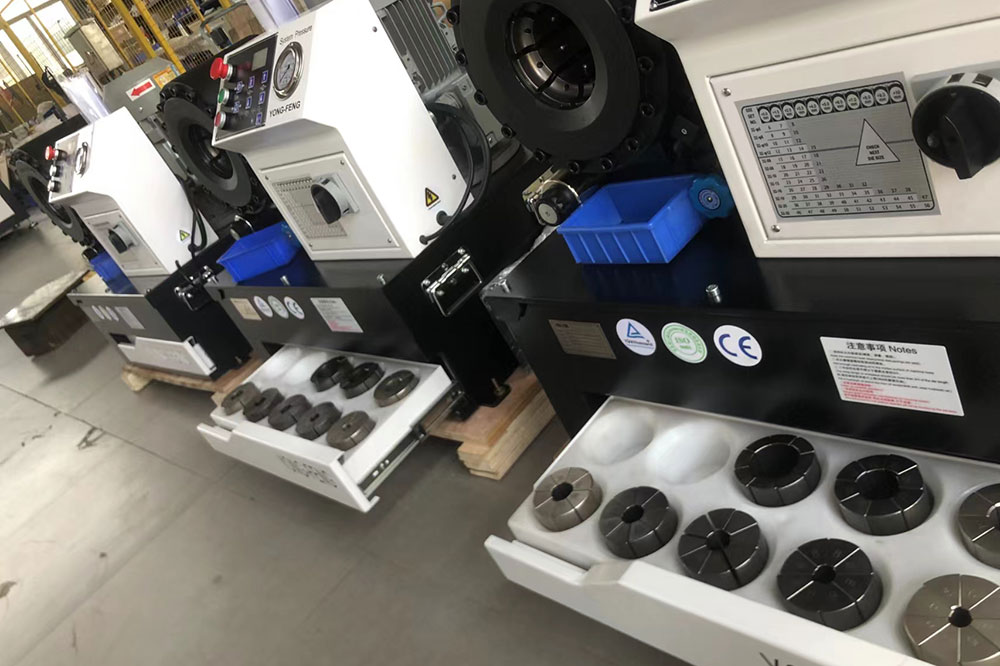

Standard dies 8 sets
Weight 220kg
L x W x H 650*500*700mm
Machine base Included
Dies quick change tool Included
Foot pedal Included
Customized special die Included
Instruction book Included

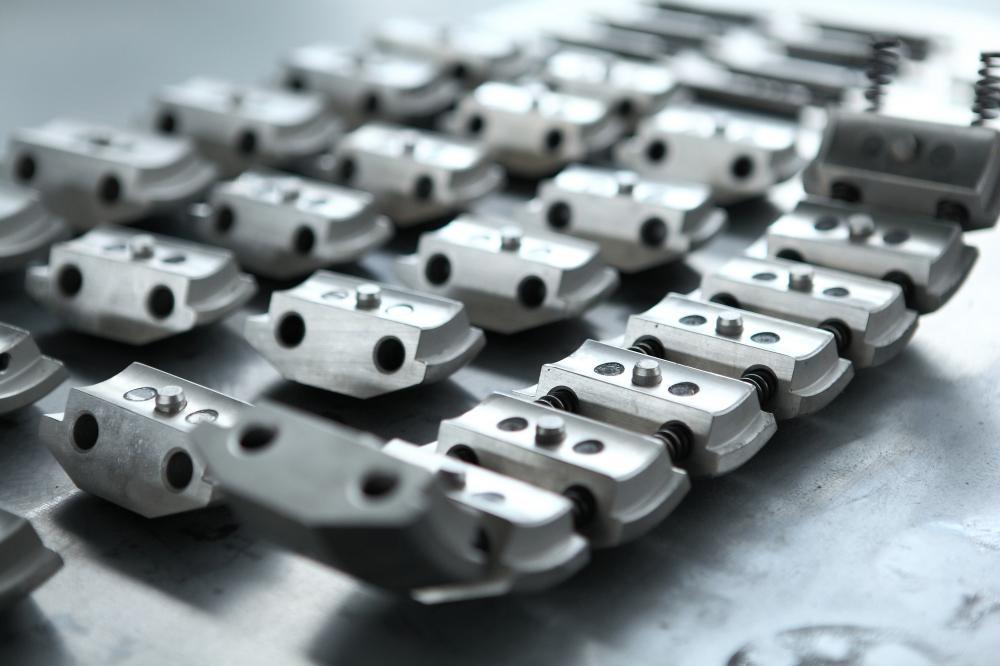

Specification of dies

High pressure dies:
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32
Crimp range 15-25mm 18-28mm 20-30mm 23-33mm 26-36mm 29-39mm 37-47mm 46-56mm
Length 65mm 65mm 65mm 65mm 65mm 65mm 70mm 70mm

Low pressure dies:
No. Φ6 Φ8 Φ10 Φ12
Crimp range 6-16mm 8-18mm 10-20mm 12-22mm
Length 35mm 35mm 35mm 35mm

Details

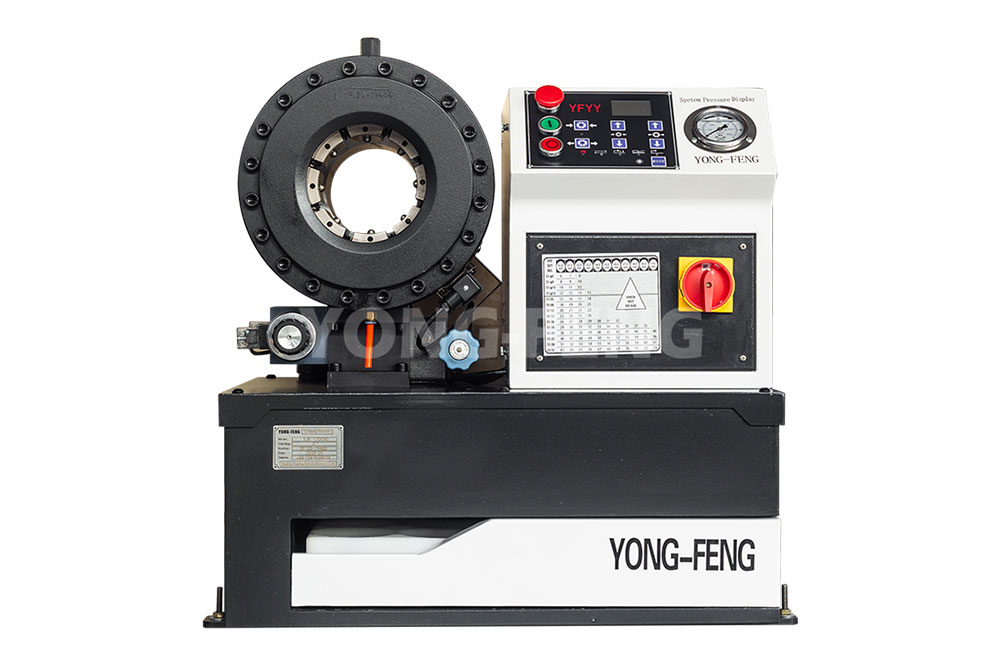

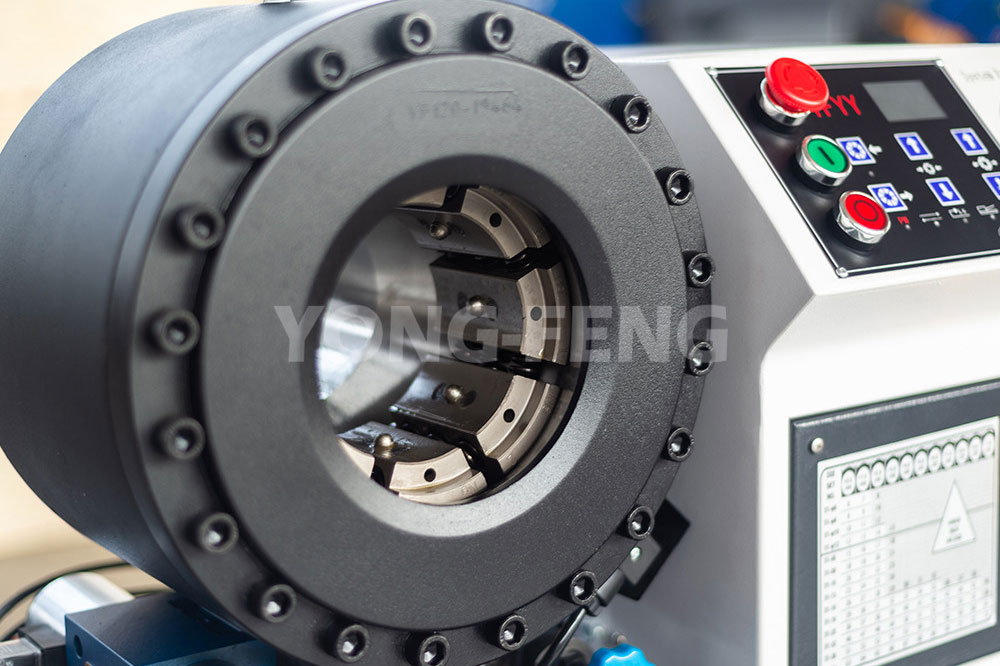

Digital controlled hose crimping machine

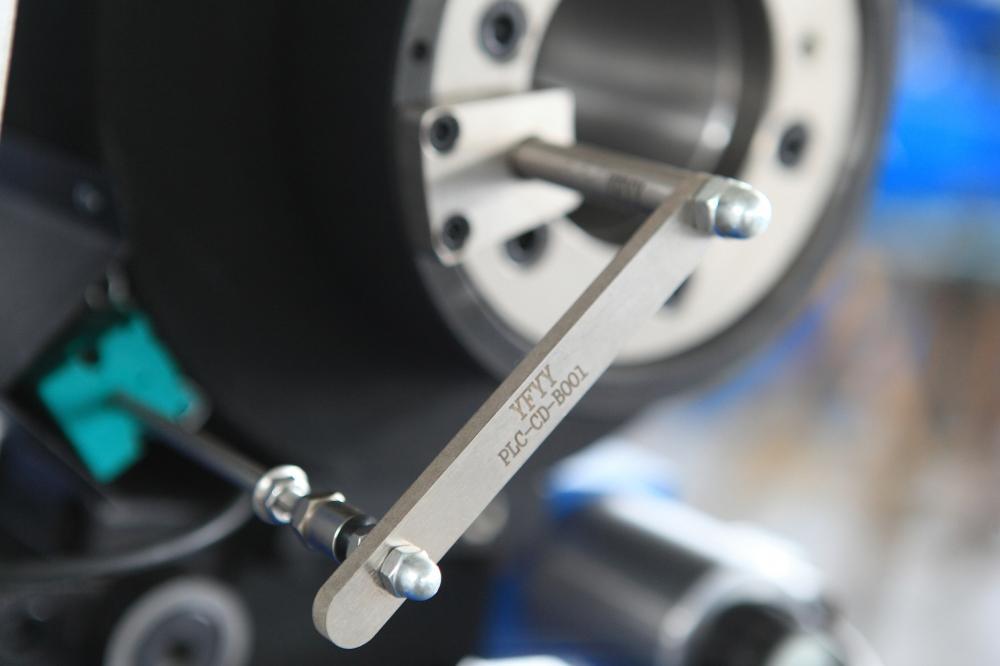

Digital controlled crimping machines have obvious advantages over traditional crimpers. The touchscreen operation panel is clear and convenient. The traditional manual adjustment is replaced by the digital controlled electrical ruler, with a crimping precision of 0.01mm, which is 10 times that of traditional crimpers.

Material

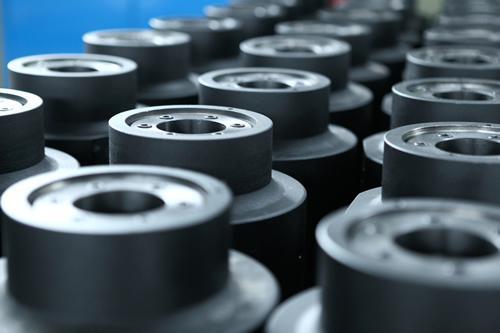

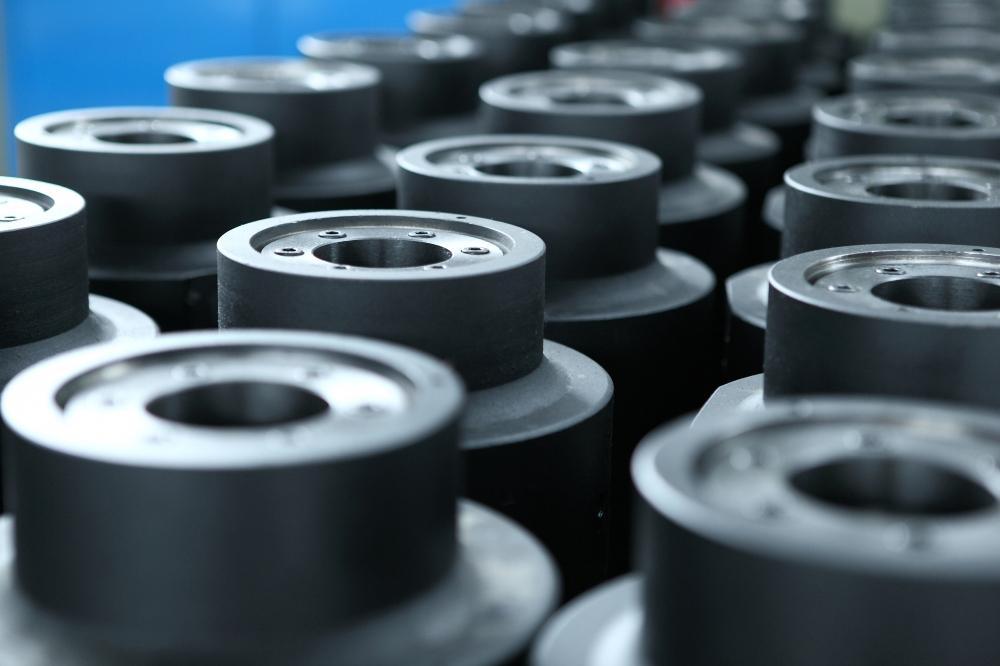

The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The hardened layer is 2mm thick.

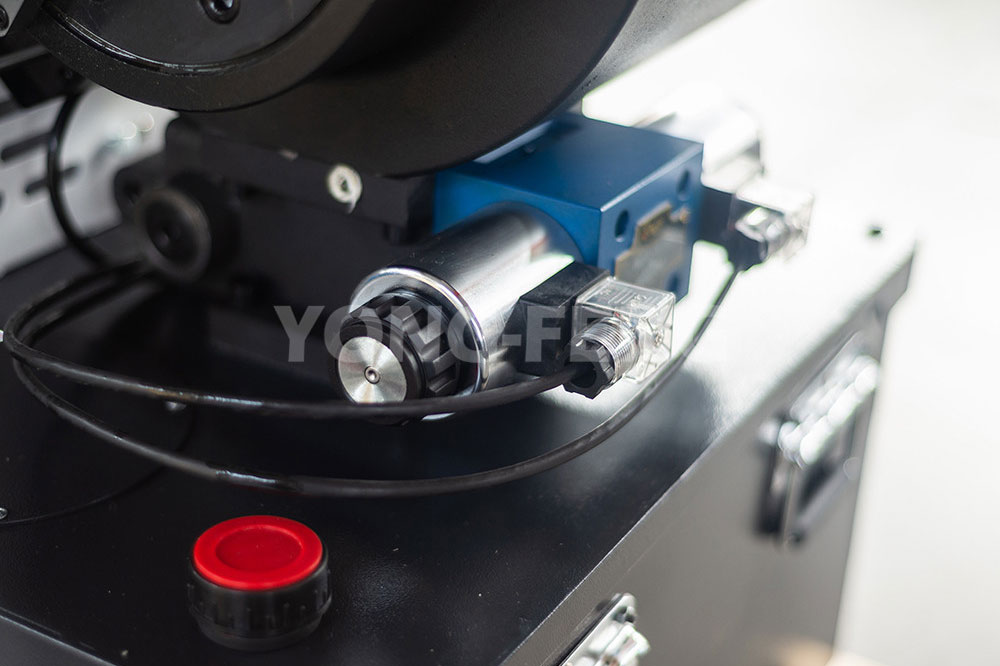

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with stable pressure conduction and great longevity, and greatly improves the performance of the crimping machine.

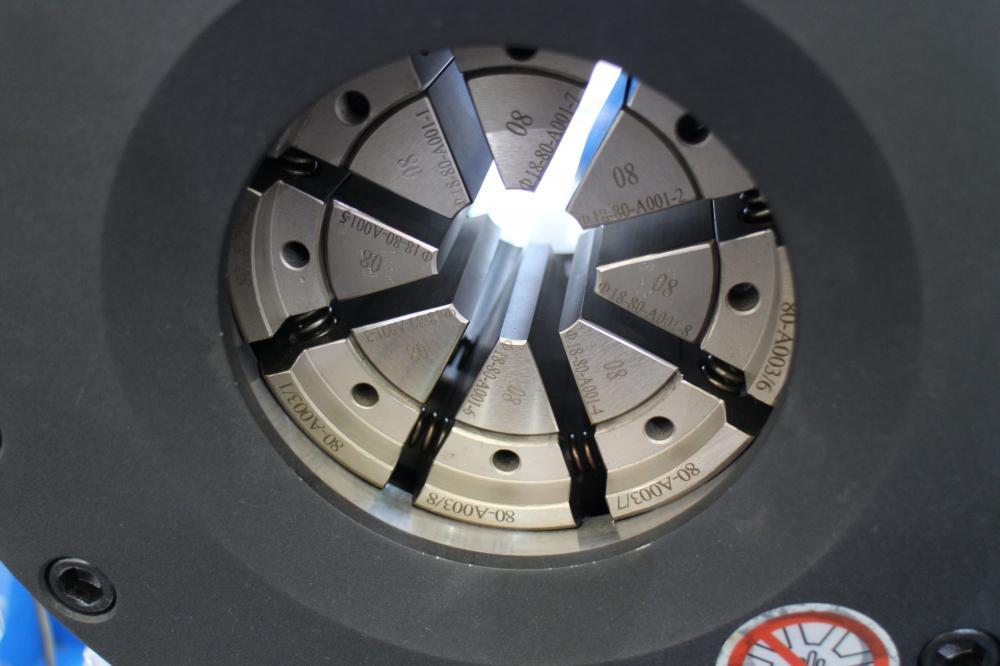

Die connection
Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat and nice.
