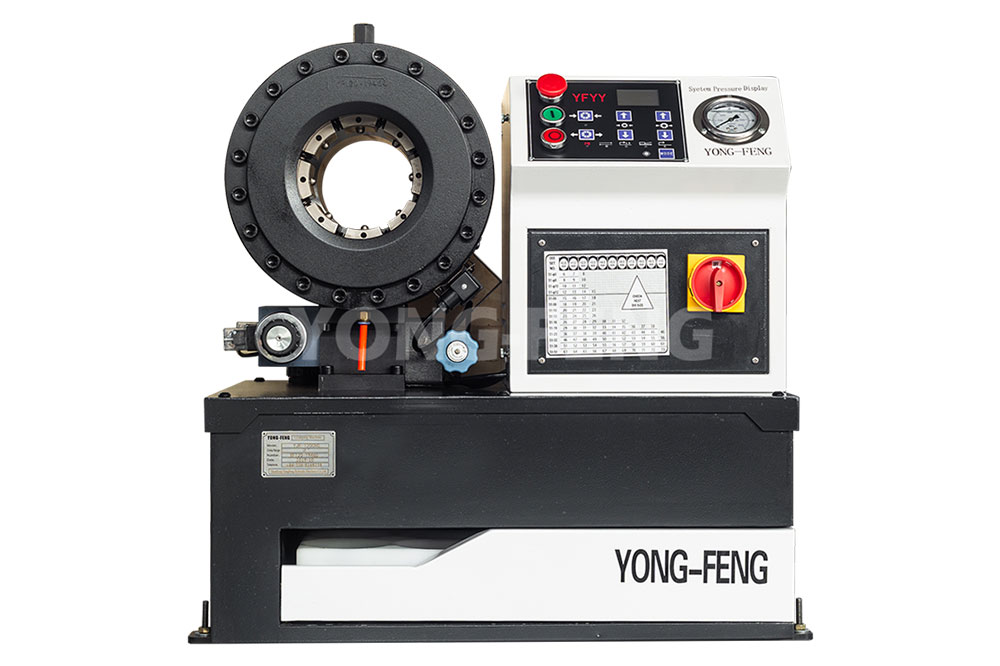

YONG-FENG Y120 Hydraulic Hose Crimping Machine

Application

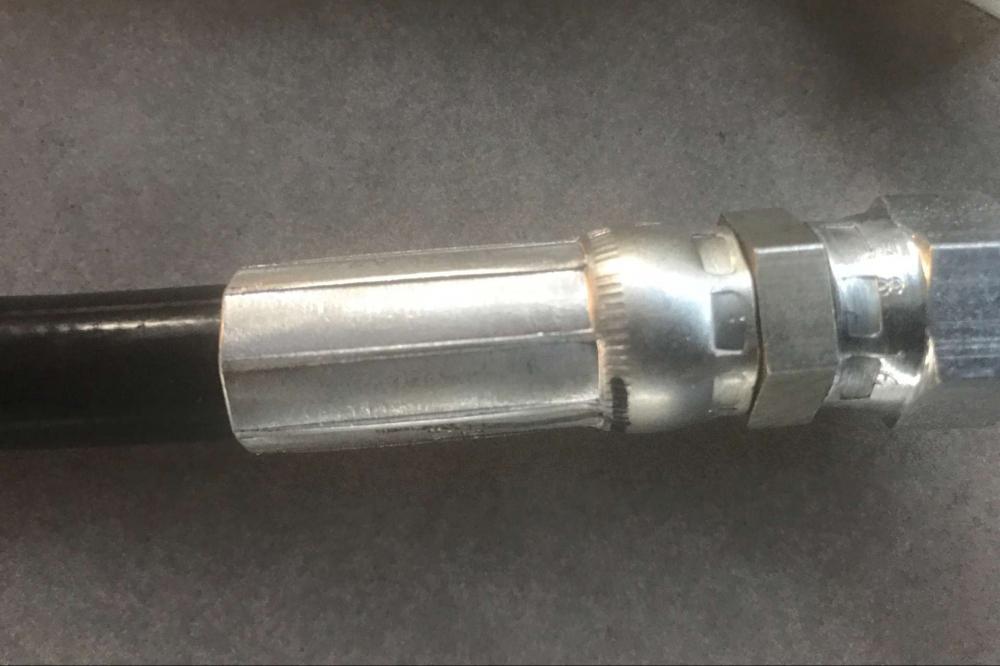

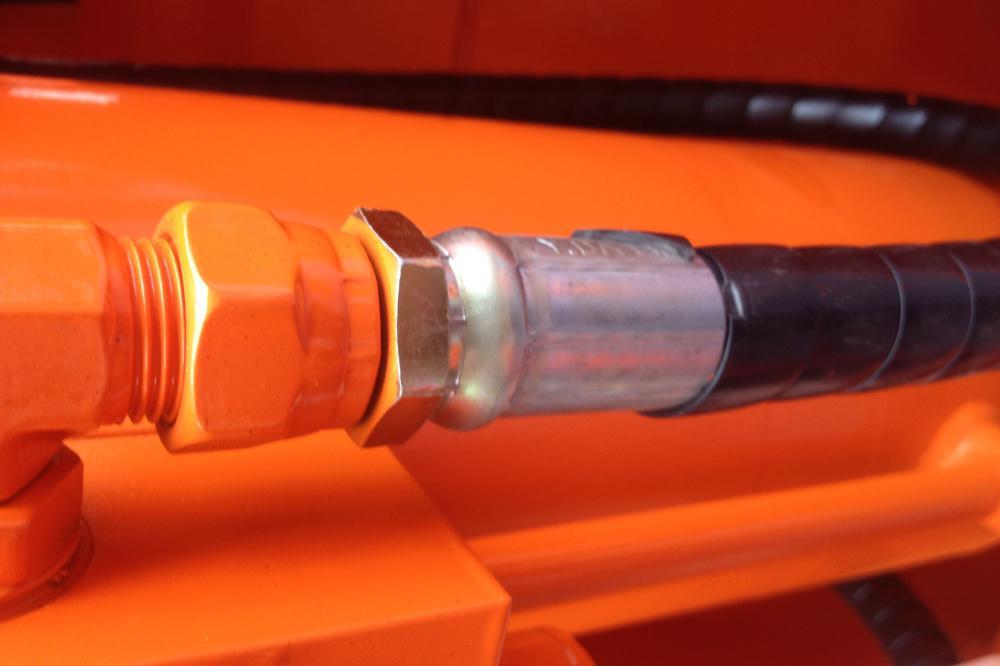

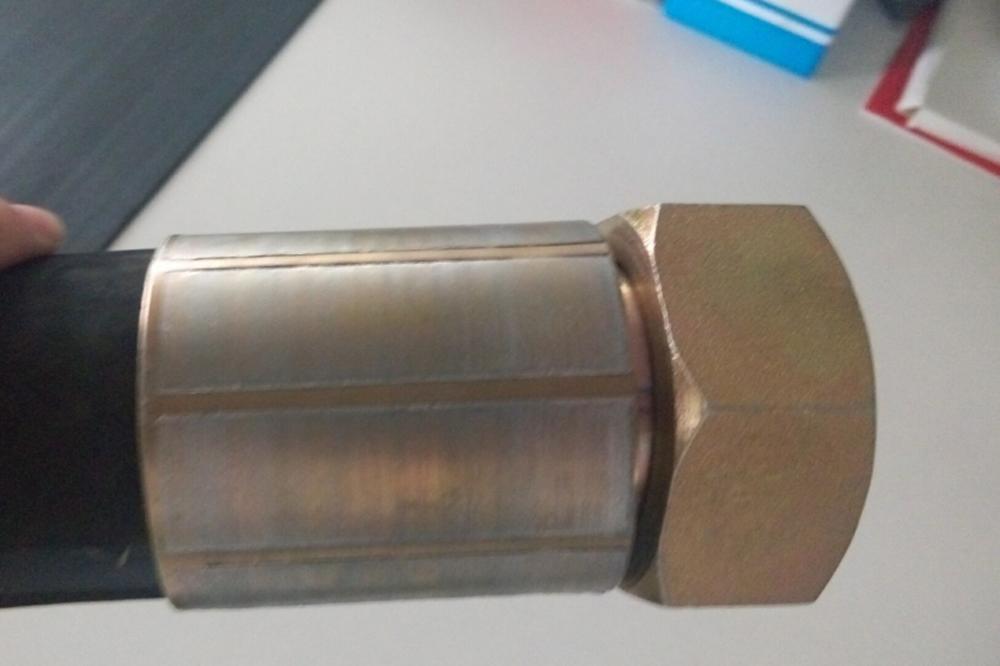

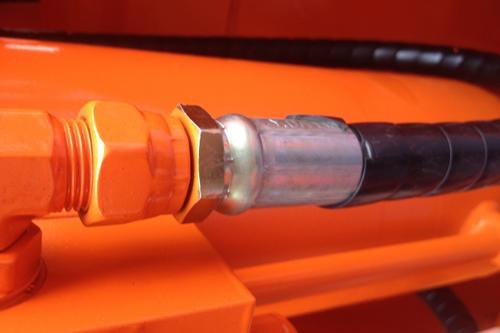

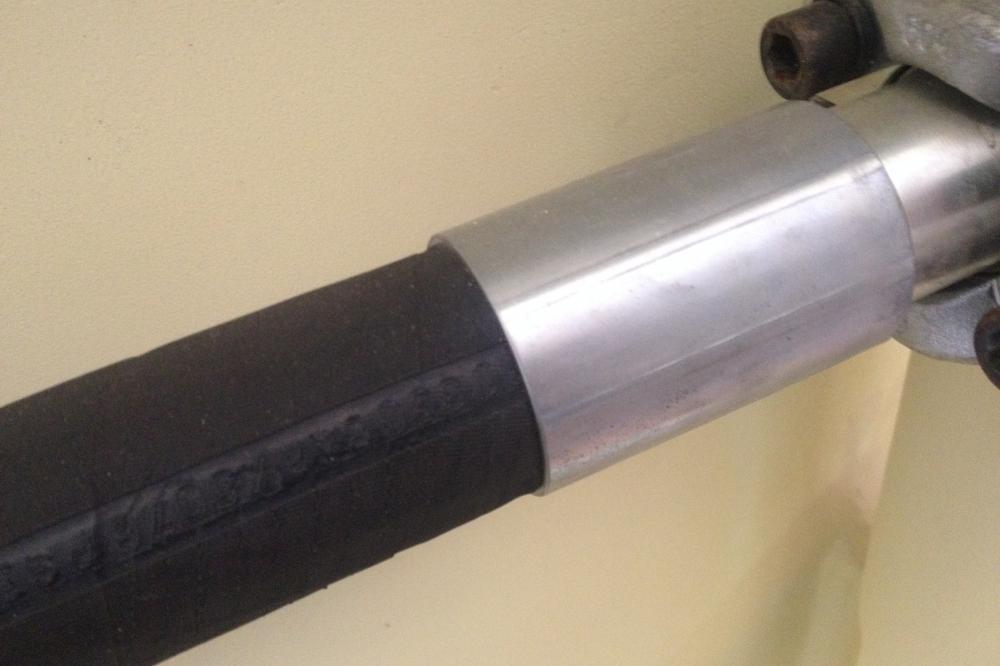

The crimping force of the YONG-FENG Y120 hydraulic hose crimping machine is 2000kN, with a crimp range of 6~88mm and 10 sets of standard dies. YONG-FENG Y120 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses, bathroom hoses, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12

Specification
Crimp head material FORGE STEEL
Crimp range 6-88mm
Hose size 2", 4SN
Max. Crimp range 118mm
Opening without dies 118mm
Opening +25mm
System pressure 31.5Mpa
Crimp force 2000kN
Drive 3kw/4kw
Standard voltage Customized
Control Digital CNC with display
Standard dies 10 sets
Weight 240kg
L x W x H 650*500*730mm
Machine base Included
Dies quick change tool Included
Foot pedal Included
Customized special die Included
Instruction book Included

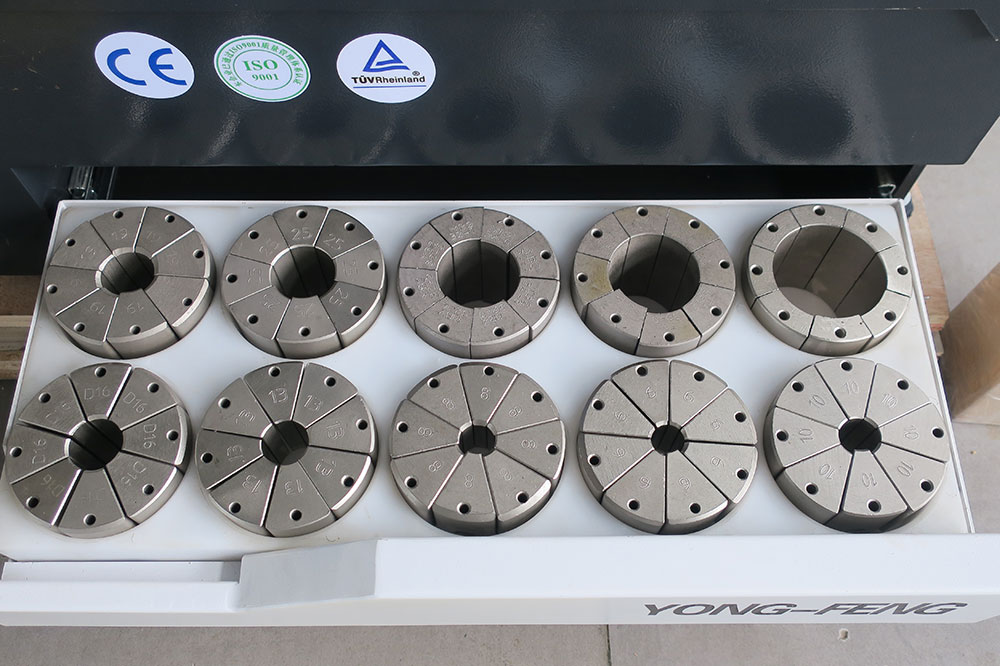

Specification of dies

High pressure dies:
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32 Φ38 Φ51
Crimp range 15-25mm 18-28mm 20-30mm 23-33mm 26-36mm 29-39mm 37-47mm 46-56mm 51-61mm 63-73mm
Length 45mm 45mm 45mm 50mm 65mm 65mm 80mm 80mm 80mm 80mm

Low pressure dies:
No. Φ6 Φ8 Φ10 Φ12
Crimp range 6-16mm 8-18mm 10-20mm 12-22mm
Length 35mm 35mm 35mm 35mm

Details

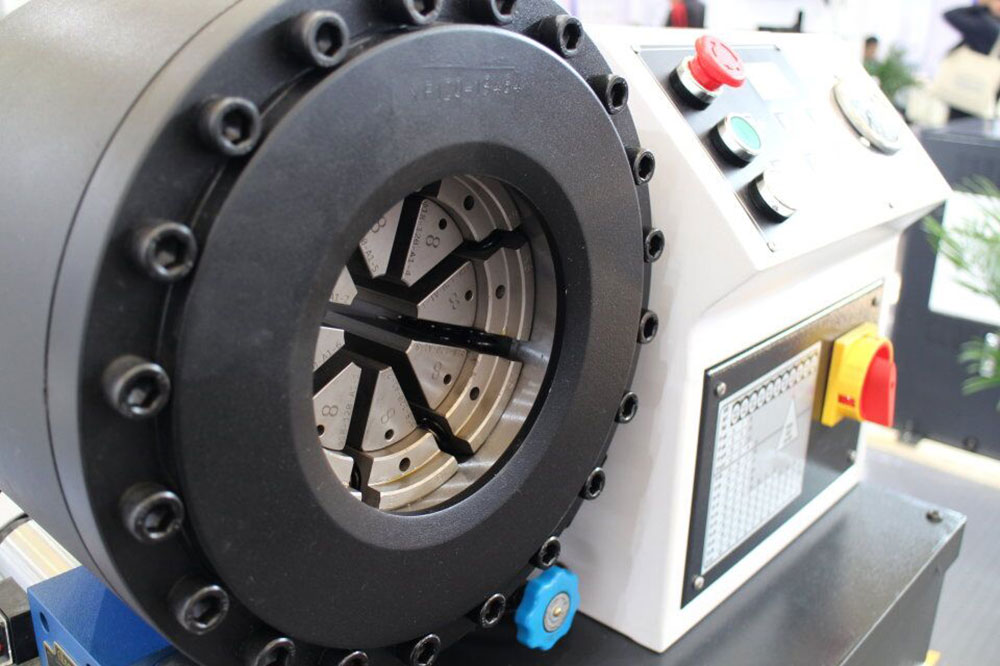

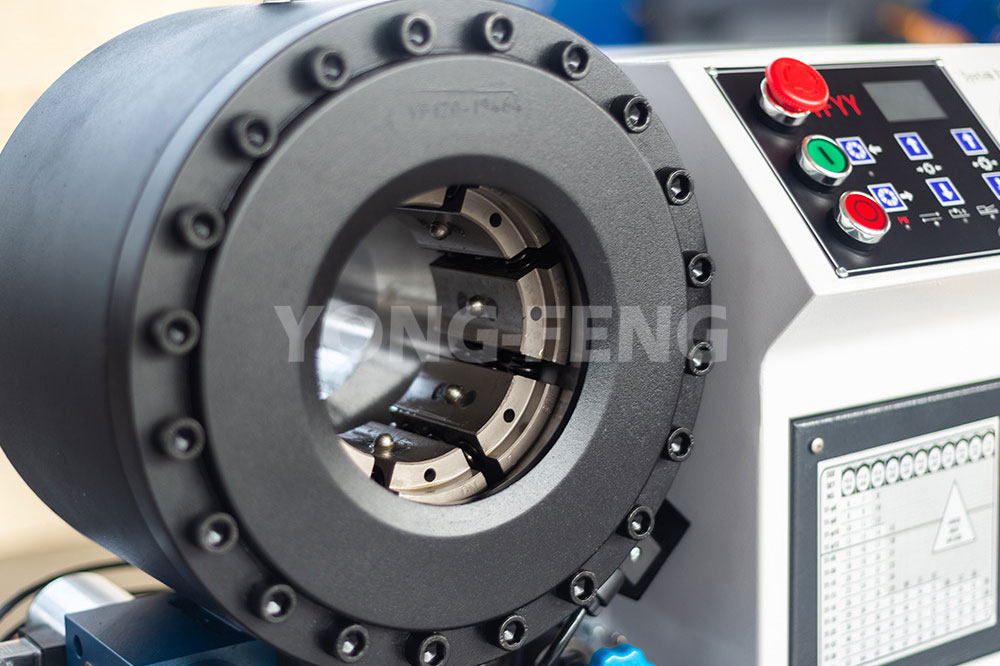

Digital controlled crimping machine
Digital controlled crimping machines have obvious advantages over traditional crimpers:
  • The operation panel is clear and easy to understand with prompt reaction speed and simple operation.
  • The traditional manual adjustment is replaced by the digital controlled electrical ruler, with a crimping precision of 0.01mm, which is 10 times that of traditional crimpers.
  • The crimping is not only more precise, but also nicer and neater.

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.

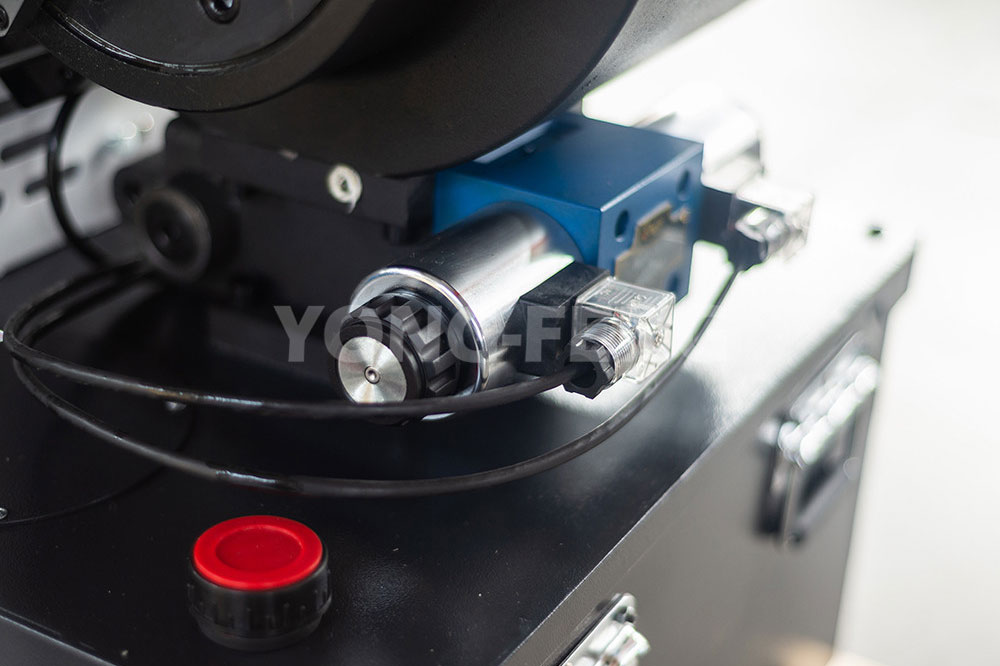

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with stable pressure conduction, and greatly improves the performance of the crimping machine.

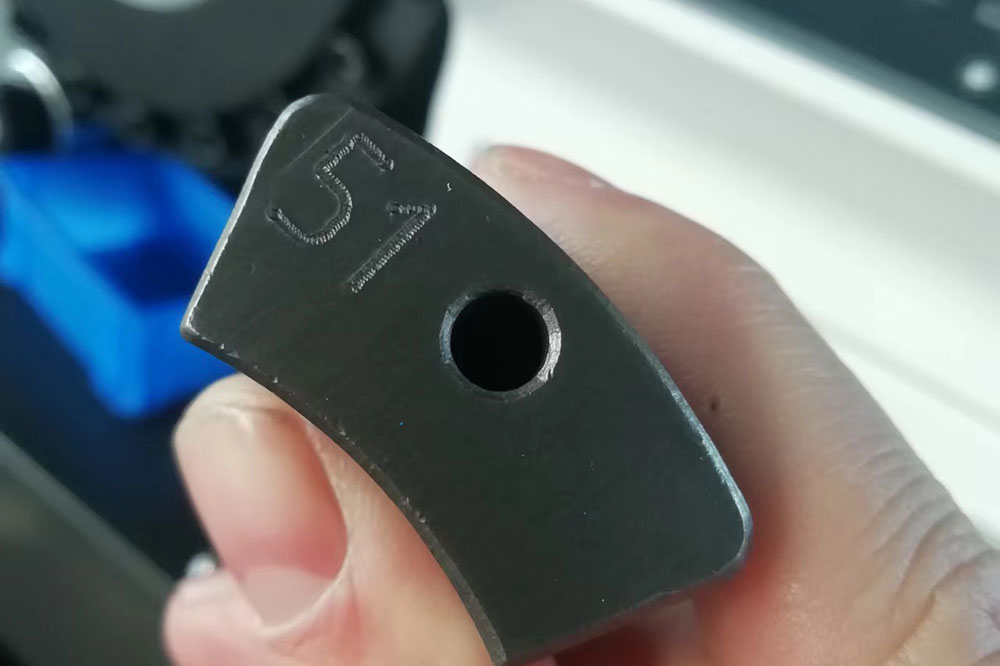

Die connection

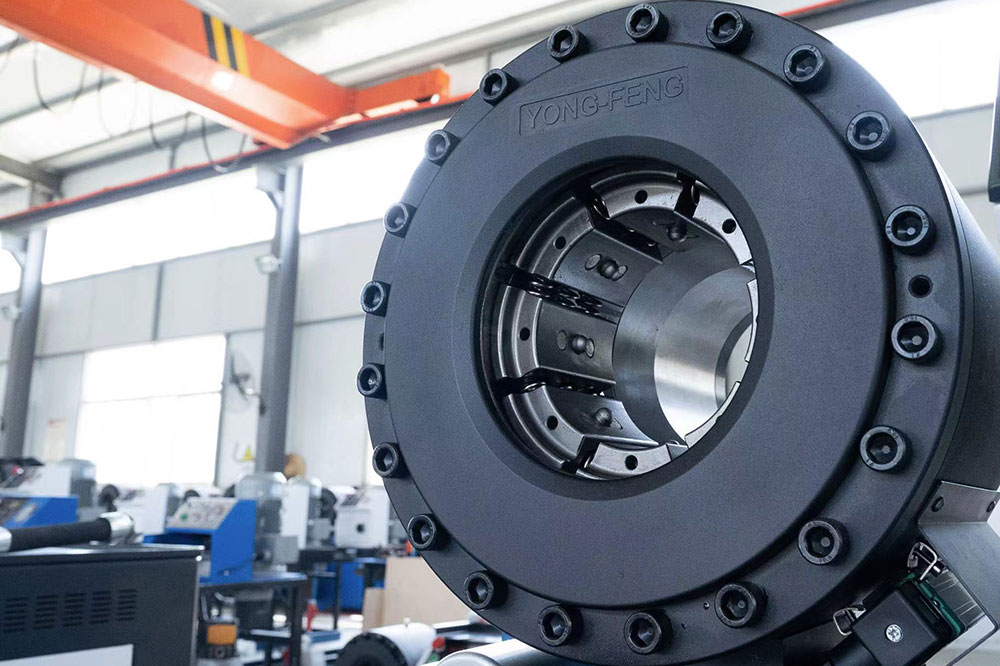

Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly, and the crimping is neat and nice.
