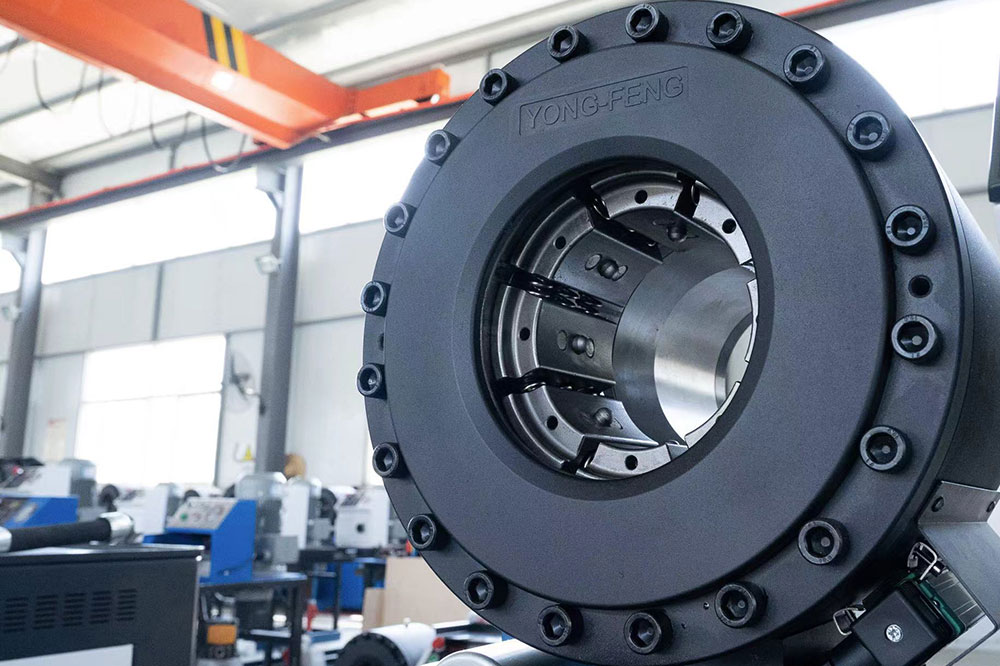

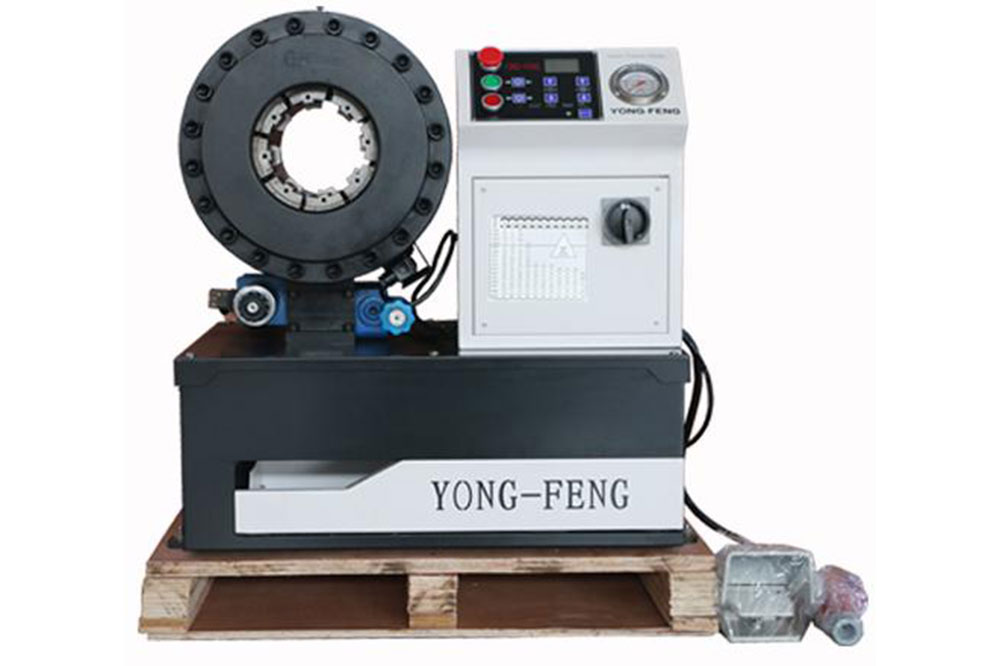

YONG-FENG Y76N Hydraulic Hose Crimping Machine

YONG-FENG Y76N Hydraulic Hose Crimping Machine

Application

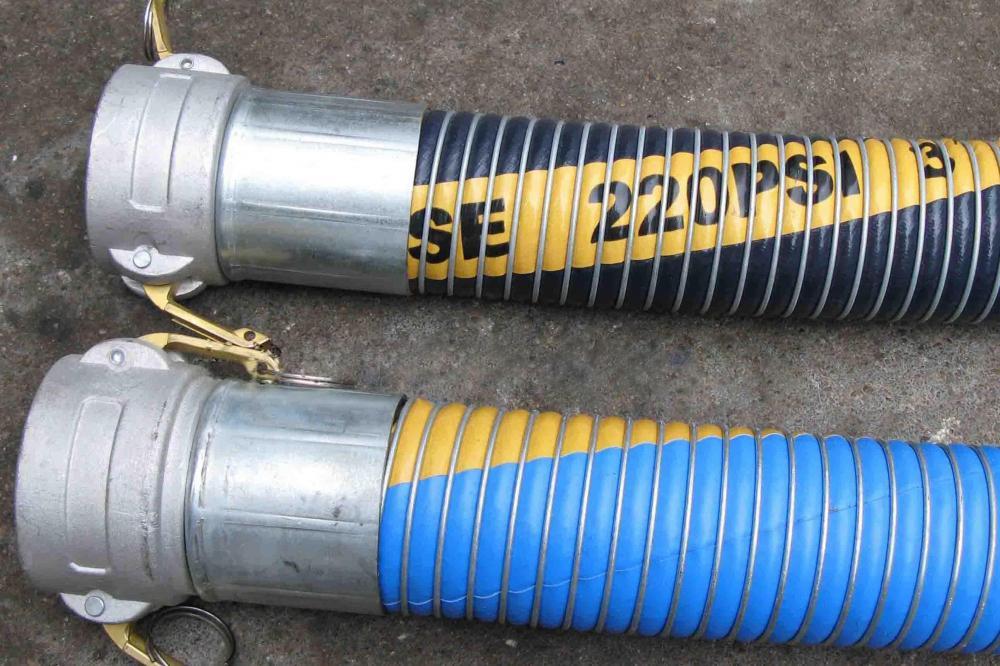

The crimp force of YONG-FENG Y76N Hydraulic Hose Crimping Machine is 3500kN, with a crimp range of 6~95mm and 12 sets of standard dies. YONG-FENG Y76N crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, water hoses, medical hoses, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 3"
Hoses with 2 braided wires: 3"
Hoses with 4 spiral wires: 3"
Hoses with 6 spiral wires: 2½"

Specification
Crimp head material FORGE STEEL
Crimp range 6-95mm
Hose size 3", 4SN
Passing diameter 142mm
Opening diameter 142mm
Opening +35mm
System pressure 31.5Mpa
Crimp force 3500kN
Drive 3kw/4kw
Standard voltage Customized
Control Digital CNC with display
Standard dies 12 sets
Weight 420kg
L x W x H 700*495*730 mm
Machine base Included
Foot pedal Included
Customized special die Included
Instruction book Included

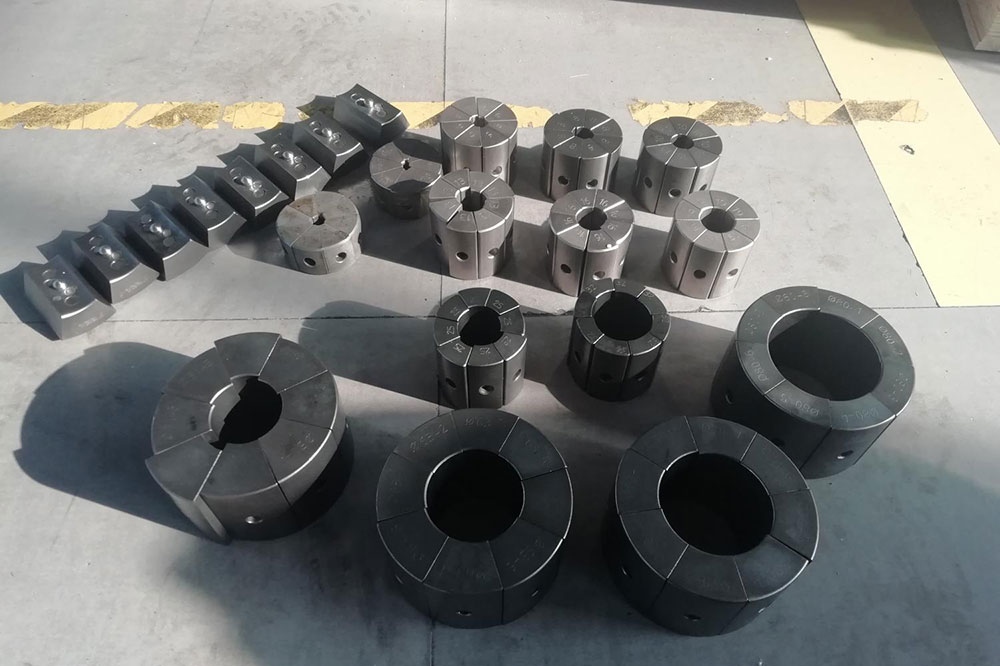

Specification of dies
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32 Φ38 Φ51 Φ64 Φ76
Crimp range 15-25 18-28 20-30 23-33 26-36 29-39 37-47 46-56 51-61 63-73 70-80 85-95
Length 45 45 45 50 65 65 80 80 80 80 80 80

Details
The oil cylinder cover, oil tank and piston rod are made of 40 chromium which improves the durability of the oil tank and the piston rod.

With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat and stable pressure conduction, and greatly improves the performance of the crimping machine.

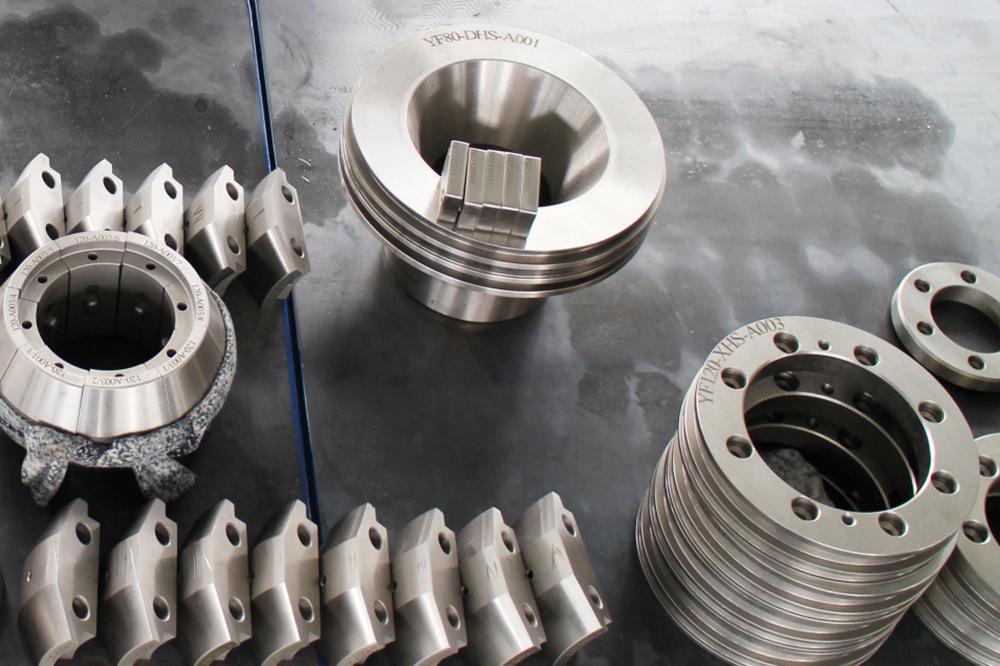

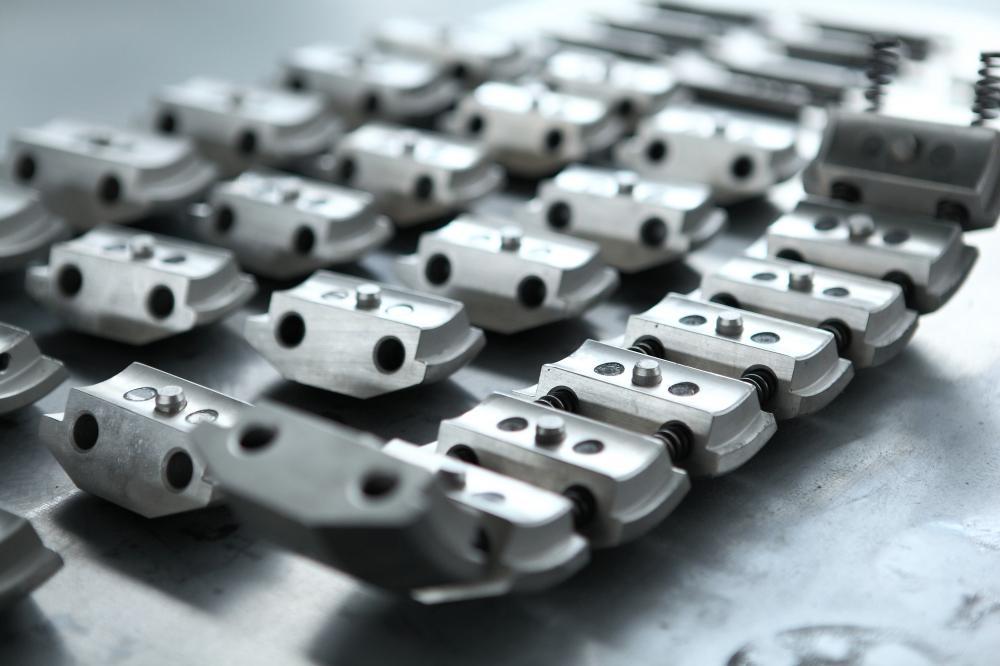

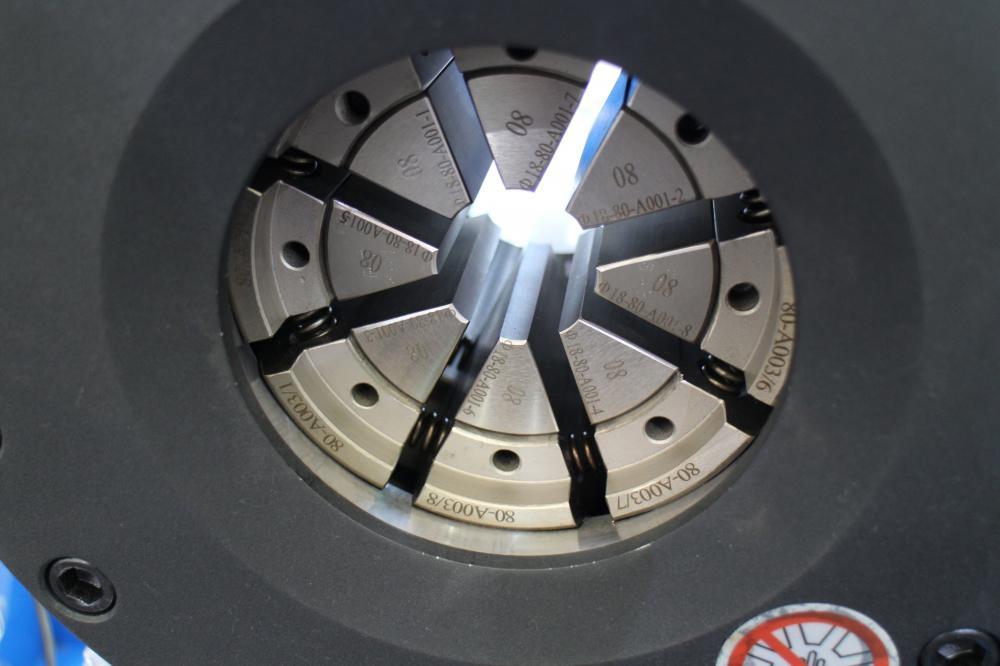

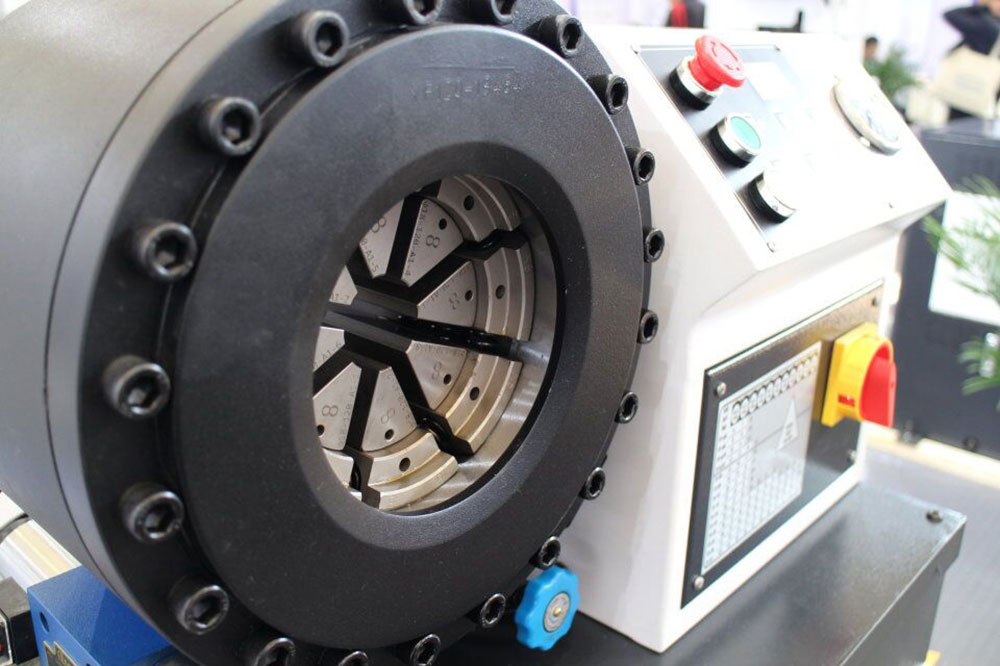

Our crimping dies are connected through magnetism, which makes it convenient for assembly and disassembly and allows automatic positioning, and thus the crimping is neat and nice.
