Application

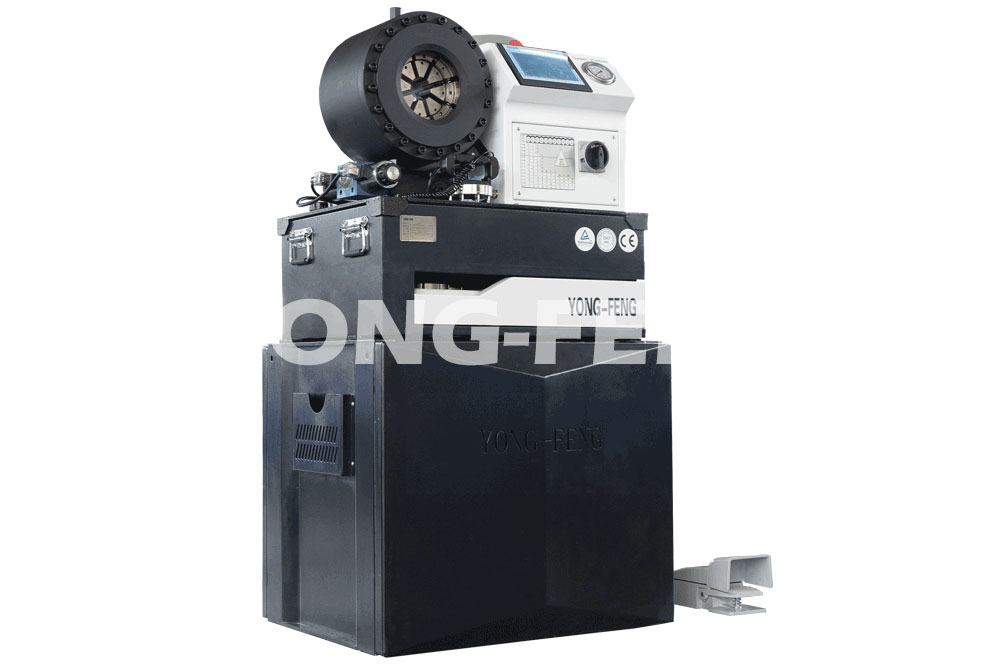

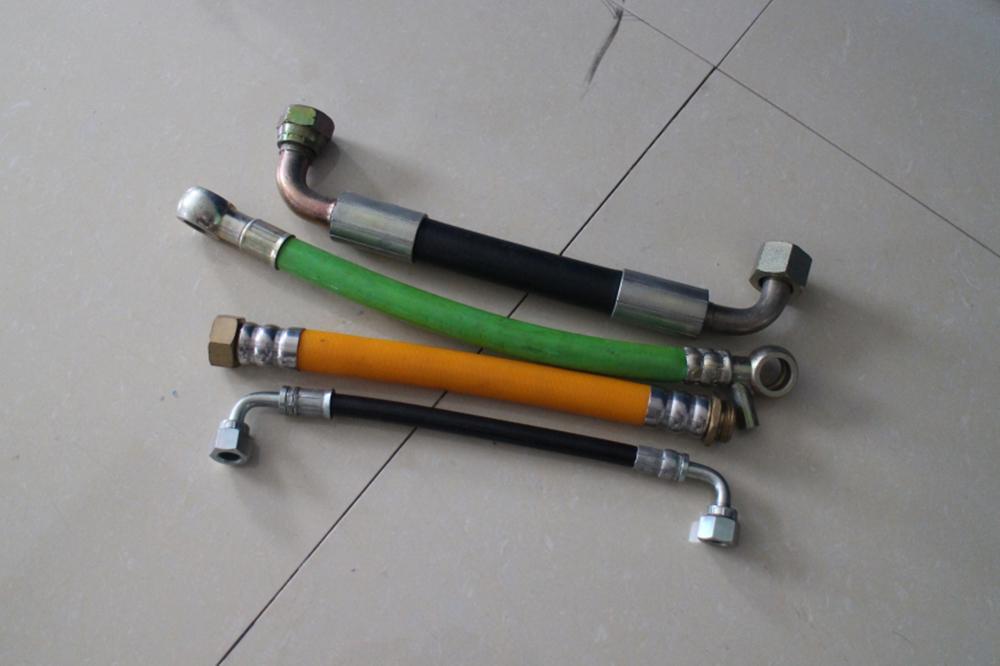

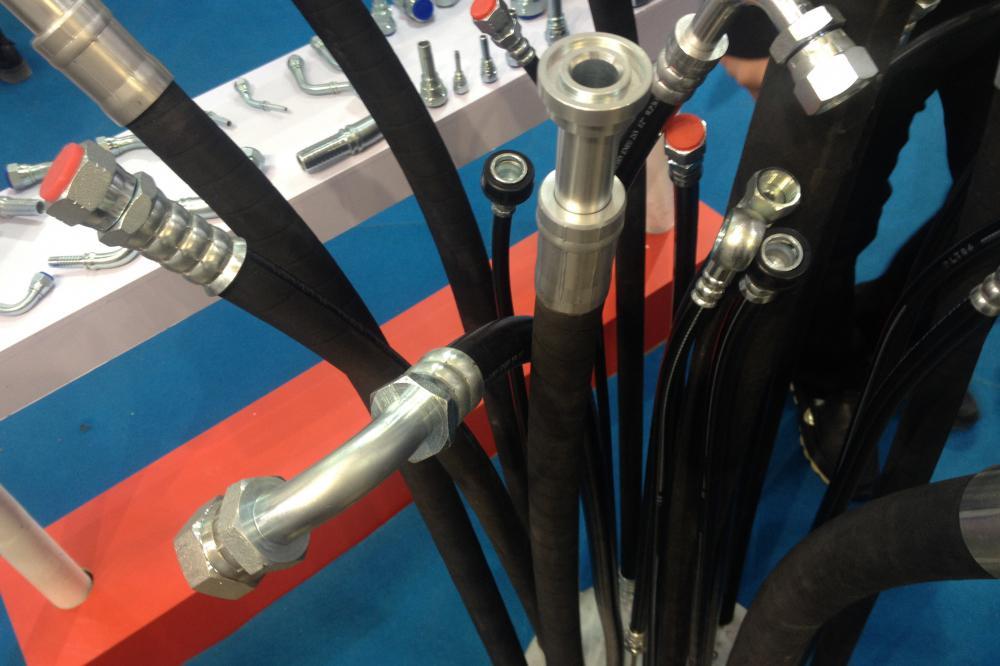

The crimping force of the YONG-FENG Y120D touchscreen crimping machine for hydraulic hose is 2000kN, with a passing diameter of 118mm, a crimp range of 6~88mm and 10 sets of standard dies. YONG-FENG Y120D crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses, water hoses, air conditioner hoses, bathroom hoses, metal pipes, steel tubes, etc.

Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12

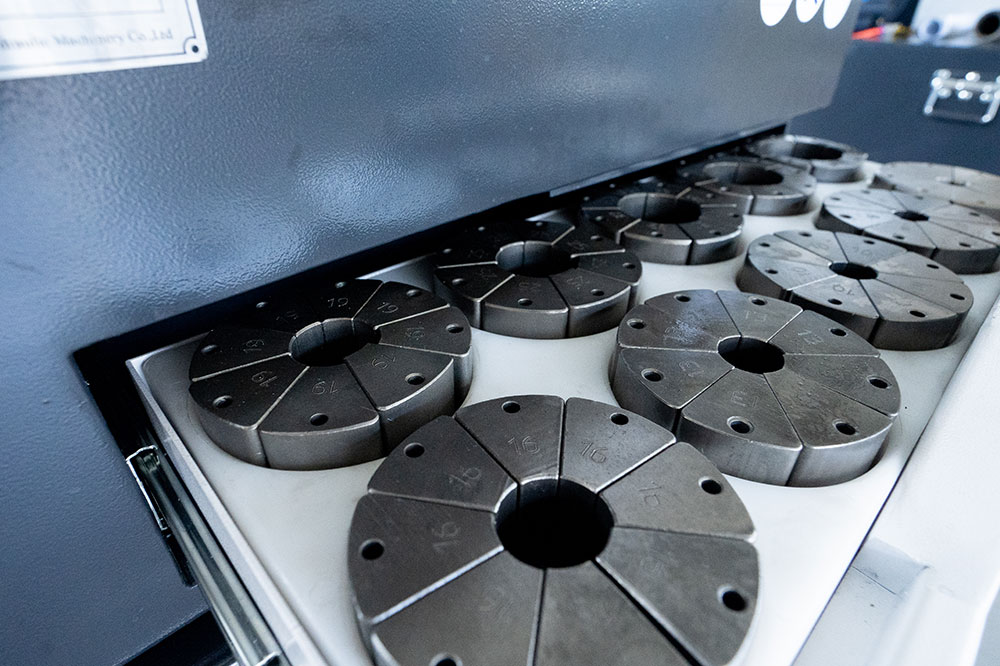

Specification of dies

Feature

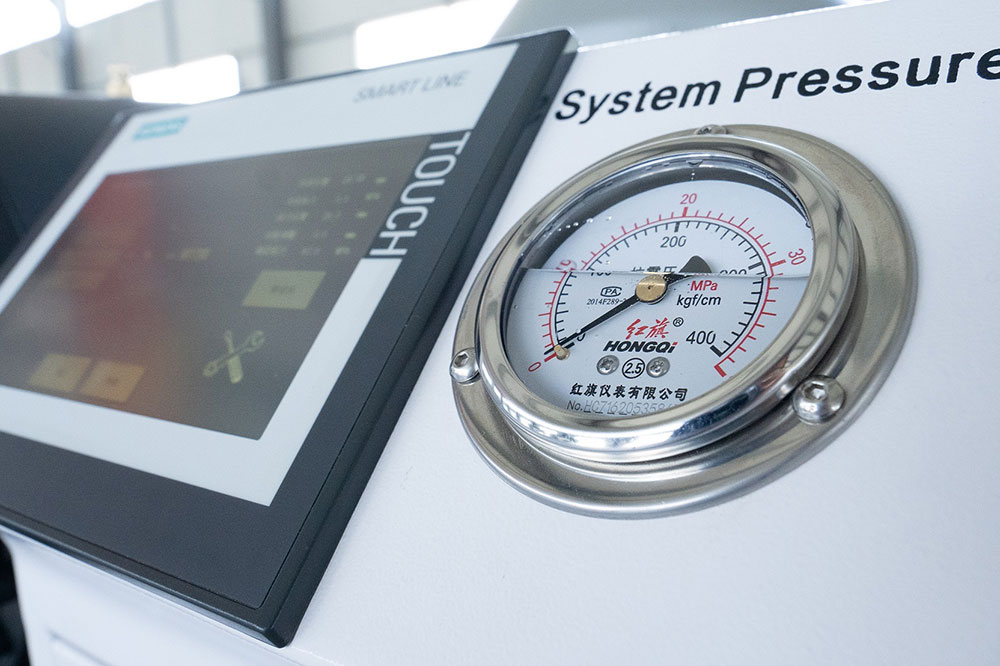

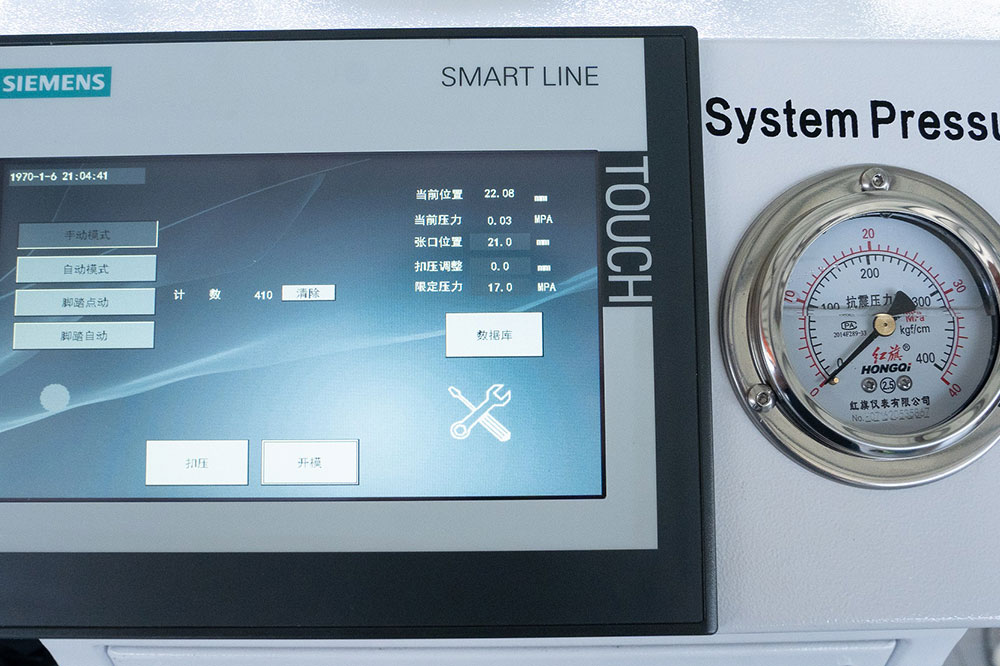

PLC crimping machine

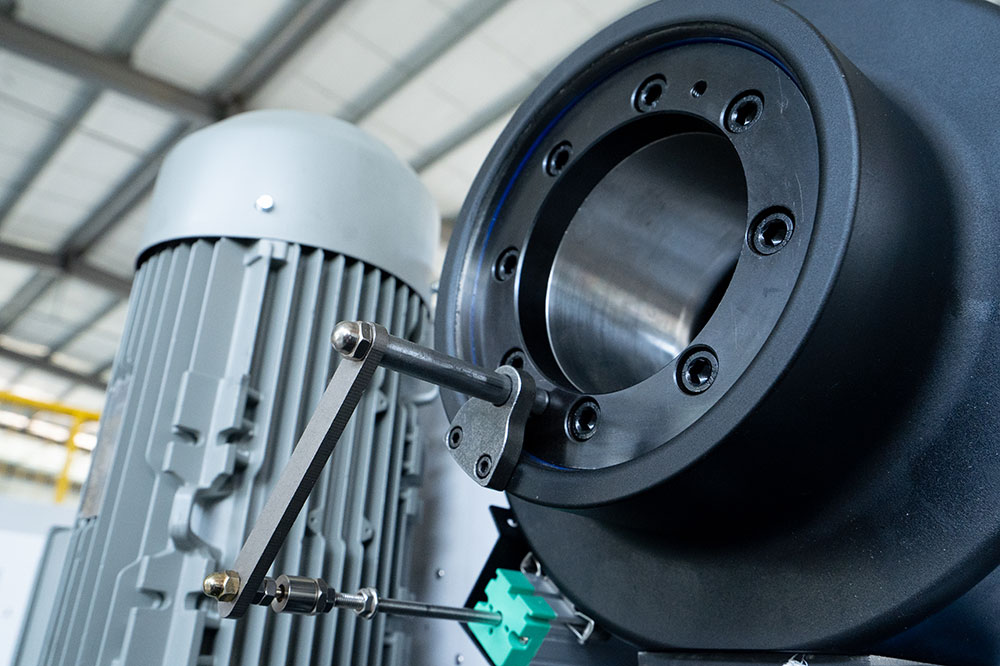

Compared with traditional crimpers, PLC crimpers are easier to operate. Traditional manual adjustment is replaced by the PLC electrical ruler, with a crimping precision of 0.01mm, which is 10 times that of traditional crimpers.

Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and damage resistant with great impact absorbing capacity.

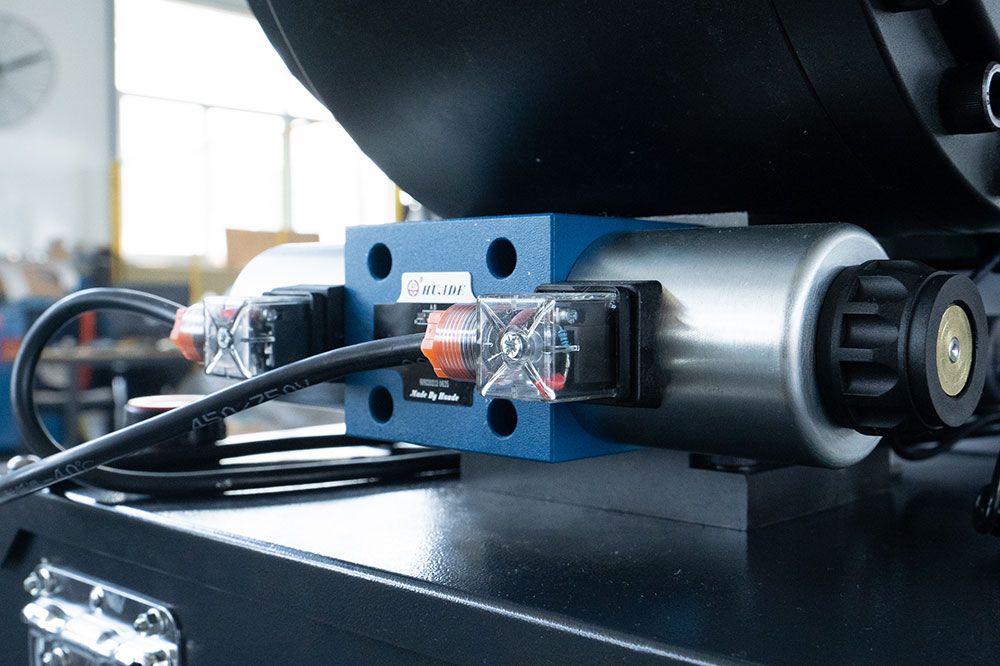

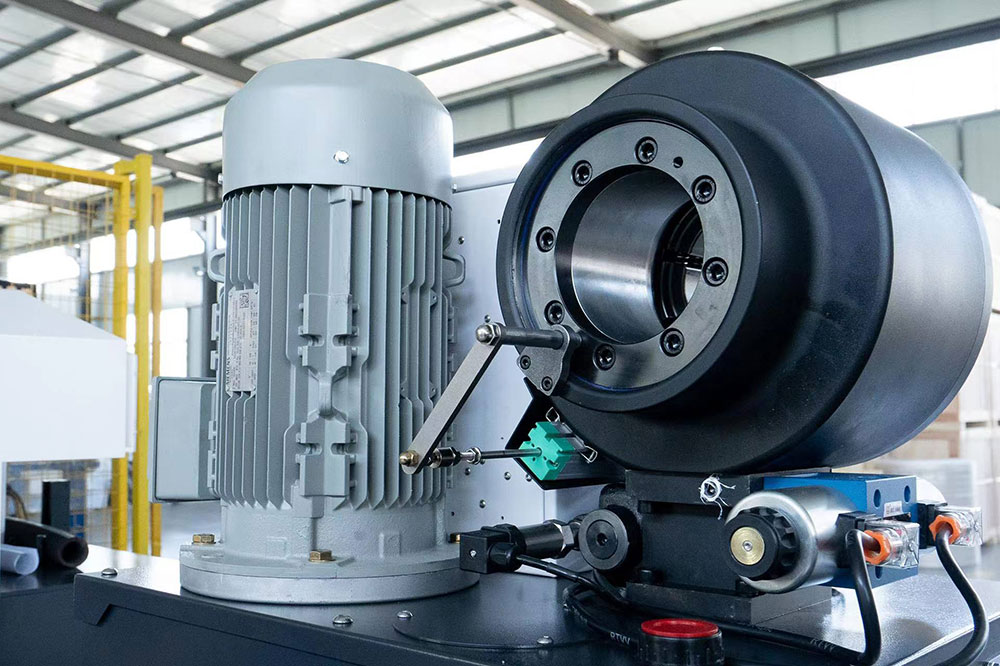

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with little heat buildup and stable pressure conduction.

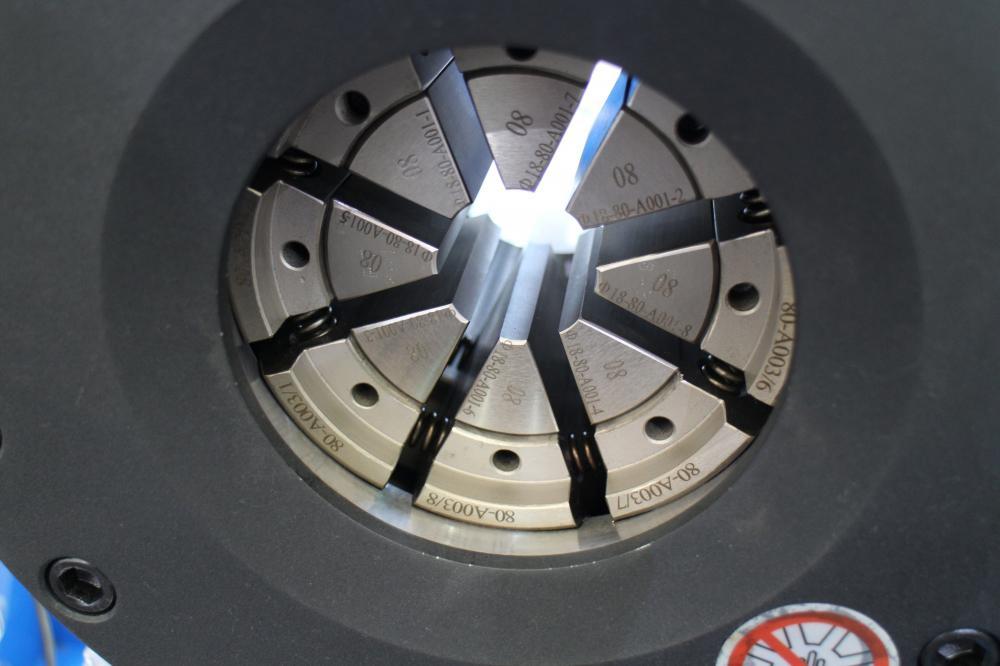

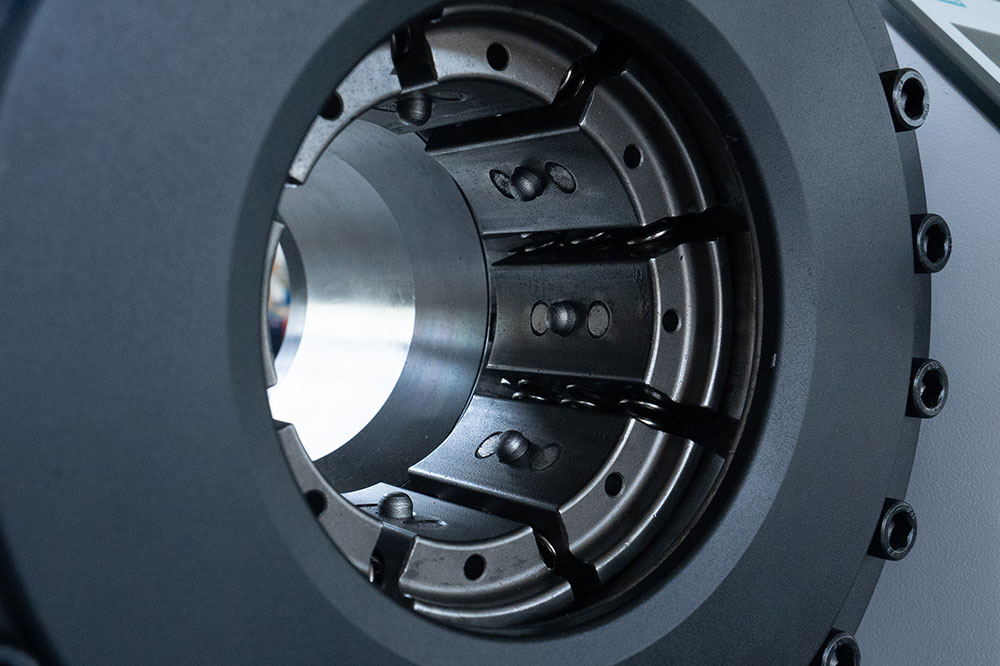

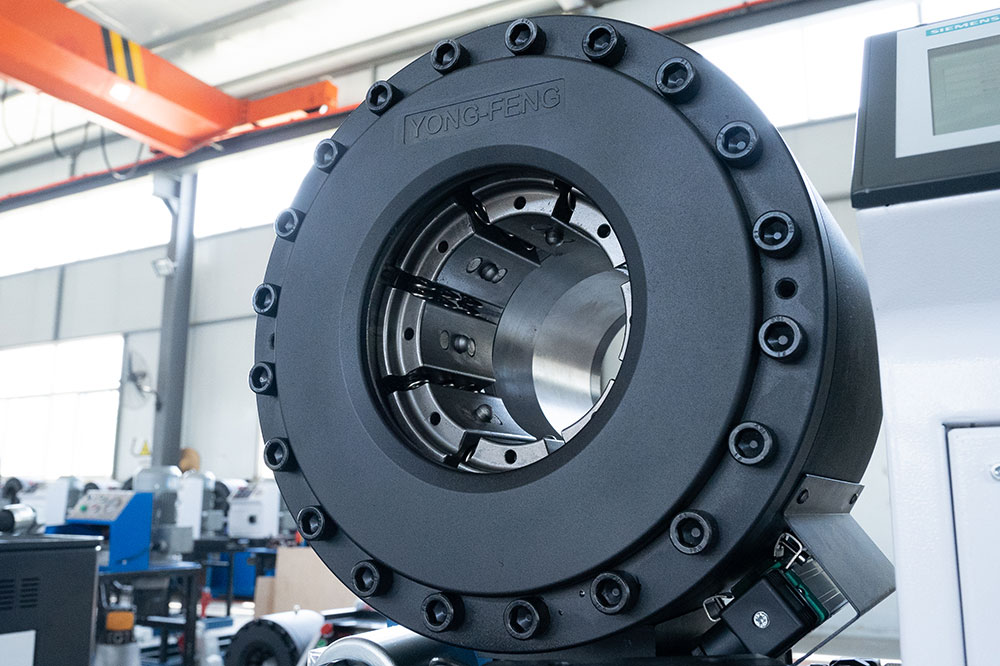

Die connection
Our crimping dies are made of Cr12 die steel and connected through magnetism, which make it convenient for assembly and disassembly, and the crimping is neat and nice.
