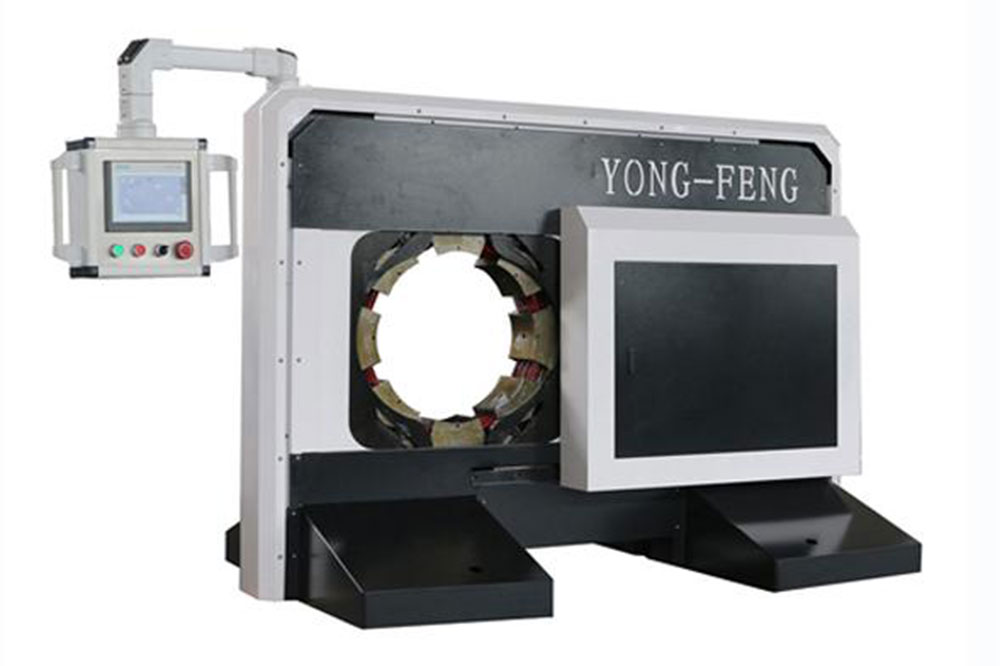

YONG-FENG Y630 Hose/Pipe Crimping Machine

Application
The crimp force of YONG-FENG Y630 Siemens PLC Digital hydraulic hose crimping machine is 12000KN, with a crimp range of 50~640mm. YONG-FENG Y630 crimpers are widely used for crimping large high-pressure fuel pipes, industrial hoses, large water hoses, automobile air bags and wire ropes etc.

Max. inner diameter
Hydraulic hose up to 24"
Industrial hose up to 24"

Specification
Crimp head material Forge steel
Crimp range 10-24"
Hose size 24"
Passing diameter 830mm
Opening diameter 830mm
Opening +160mm
System pressure 31.5MPa
Crimp force 12000kN
Drive 15kw
Standard voltage Customized
Control Siemens PLC digital touch screen

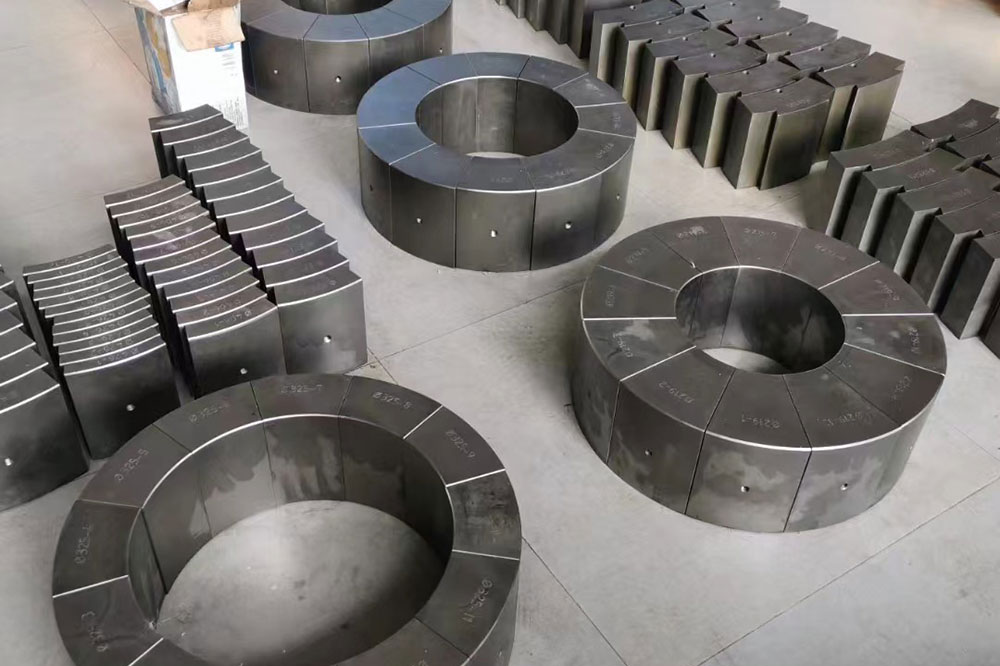

Standard dies Customized
Weight 4200kg(crimping unit)/660kg(hydraulic power unit)
L x W x H 2980*1530*2360mm/850*810 *1220mm

Details

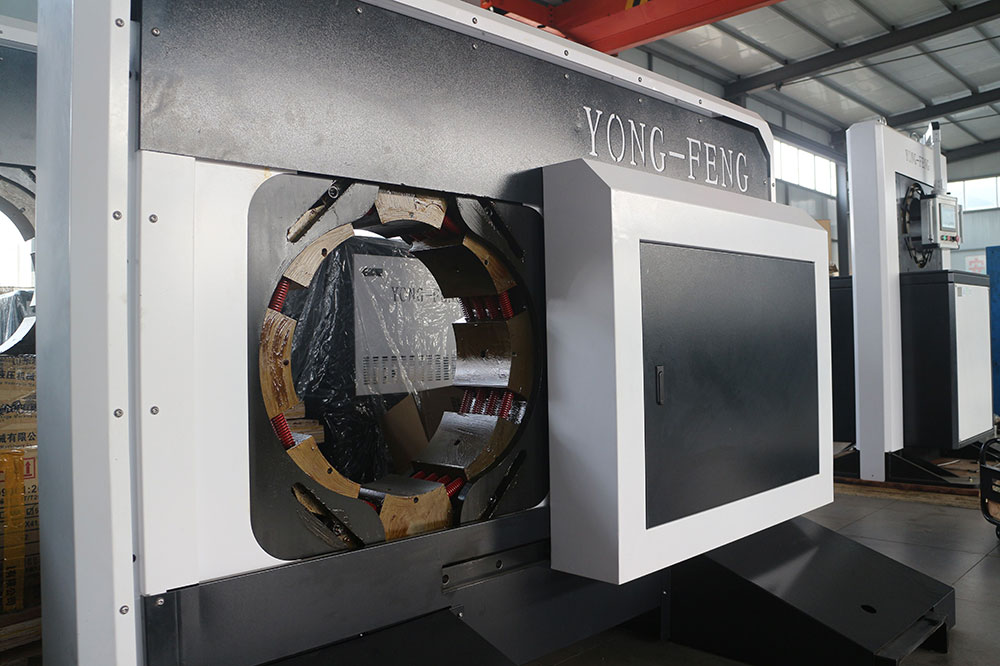

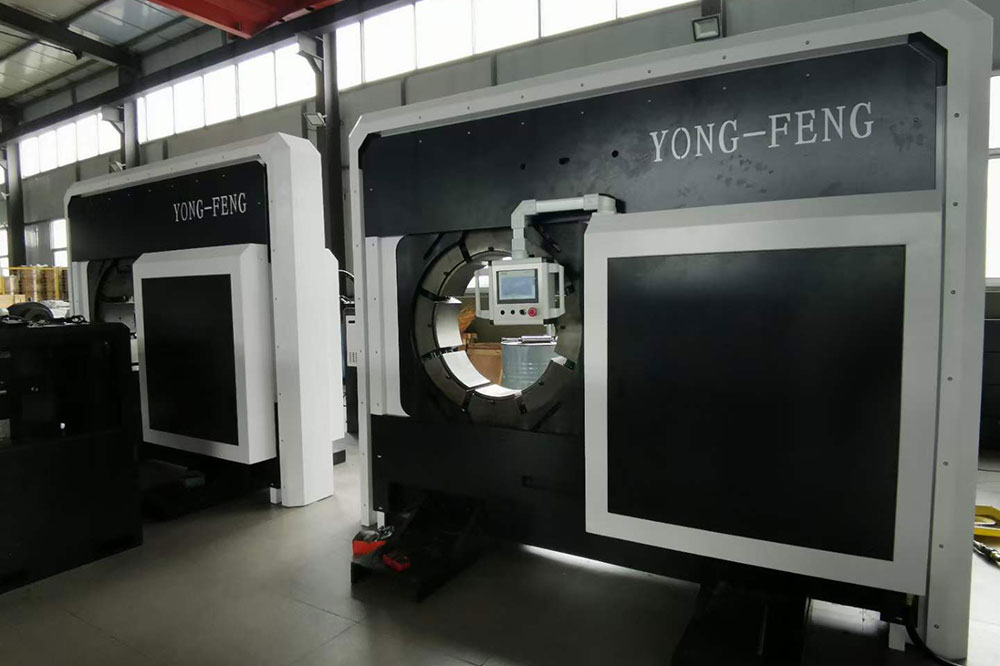

YONG-FENG Y630 hose crimping machine features stable structure, unique appearance design and Siemens PLC touch screen system. It is particularly manufactured by hydraulic technology and production process developed by YONG-FENG to crimp industrial hoses that are up to 24 inch. We also provide custom-tailored services to produce crimping machines that are suitable for different hose dimensions. Using our hose crimping machines, you will find that a hose is securely attached to a crimp flange or other hose fittings.


Related
hose crimper, hydraulic crimper, hose ferrule crimper, pipe crimper tool
