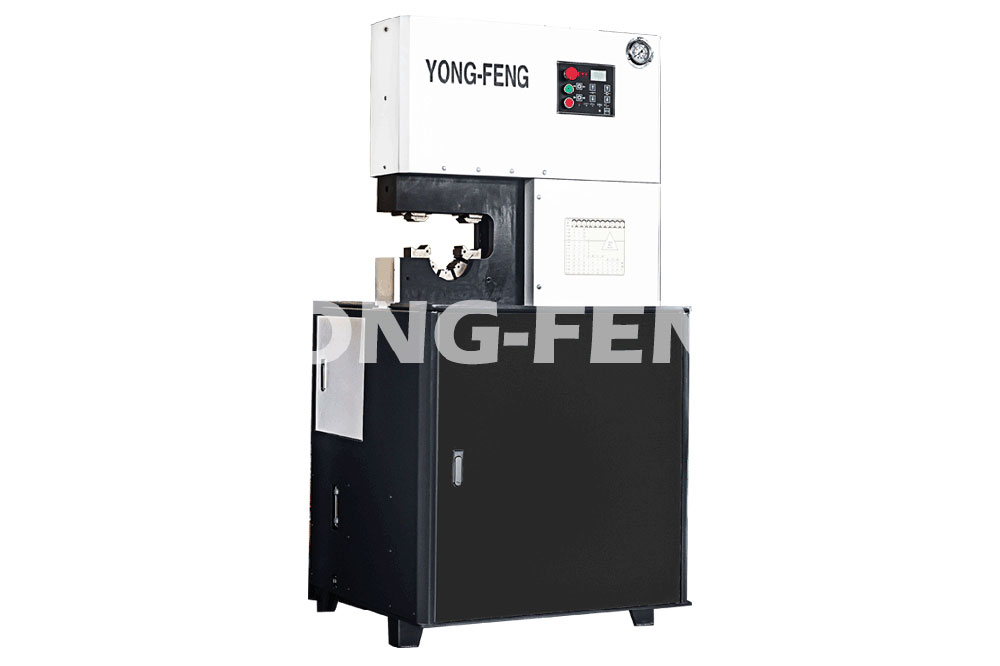

YONG-FENG Y80C Side Feed Hose Crimping Machine
Application

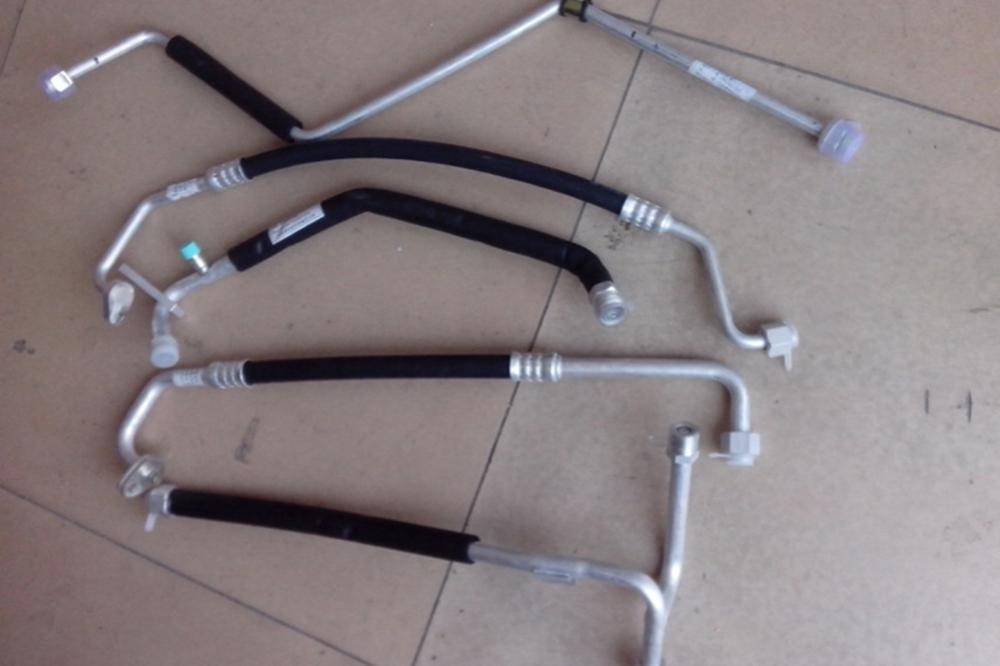

The crimp force of YONG-FENG Y80C side feed hose crimping machine is 800KN, with a crimp range of 4~87mm. YONG-FENG Y80C crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses, medical hoses and water hoses, metal pipes and steel tubes, etc.
Max. inner diameter
Industrial hoses: 1 ¼"
Hoses with 2 braided wires: 1 ¼"
Hoses with 4 spiral wires: 1¼"

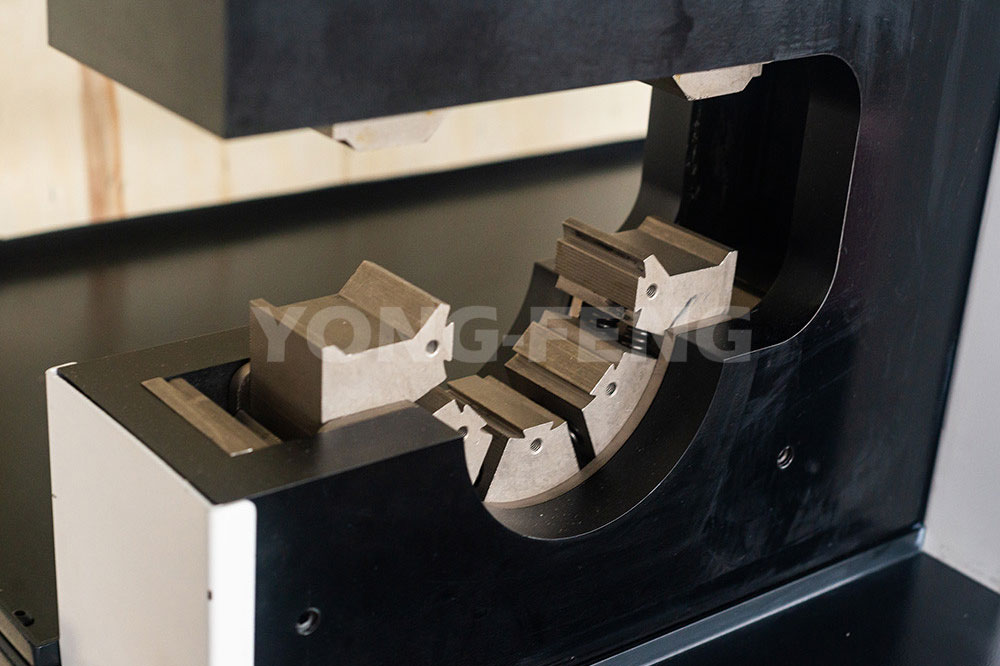

| Crimp head material | FORGE STEEL |
| Crimp range | 4-87mm |
| Hose size | 1¼", 4SN |
| Passing diameter | 112+100mm |
| Opening diameter | 112mm |
| Opening | +25+100mm |
| System pressure | 31.5Mpa |
| Crimp force | 800KN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Digital CNC with display |
| Standard dies | Customized |
| Weight | 940kg |
| L x W x H | 850*800*1600 mm |
| Foot pedal | Included |
| Customized special dies | Included |
| Instruction book | Included |
Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick. The 40 chromium is high pressure resistant and tear resistant with great impact absorbing and carrying capacity. Therefore, the oil tank and piston rod are more durable.
