YONG-FENG Y360 Hose/Pipe Crimping Machine

Application
The crimp force of YONG-FENG Y360 Siemens PLC digital hydraulic hose crimping machine is 4800kN, with a crimp range of 50~240mm. YONG-FENG Y360 crimpers are widely used for crimping large high-pressure fuel pipes, industrial hoses, large water hoses, automobile air bags and wire ropes etc.

Max. inner diameter
Hydraulic hose up to 10"
Industrial hose up to 12"

Specification
Crimp head material Forge steel
Crimp range 50-240mm
Hose size 10"
Passing diameter 360mm
Opening diameter 360mm
Opening +120mm
System pressure 31.5MPa
Crimp force 4800kN
Drive 15kw
Standard voltage Customized

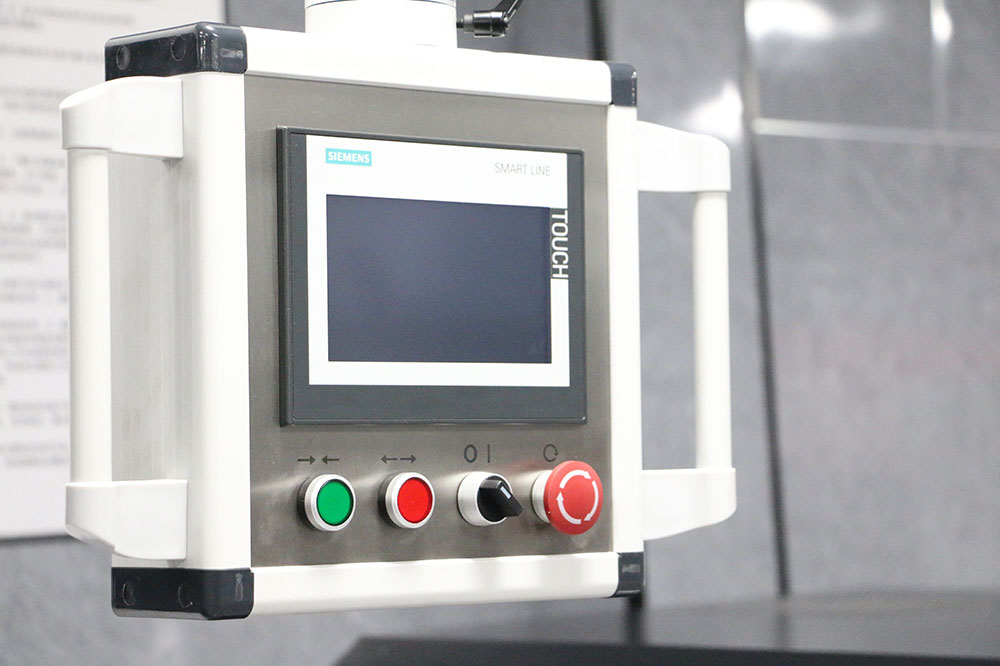

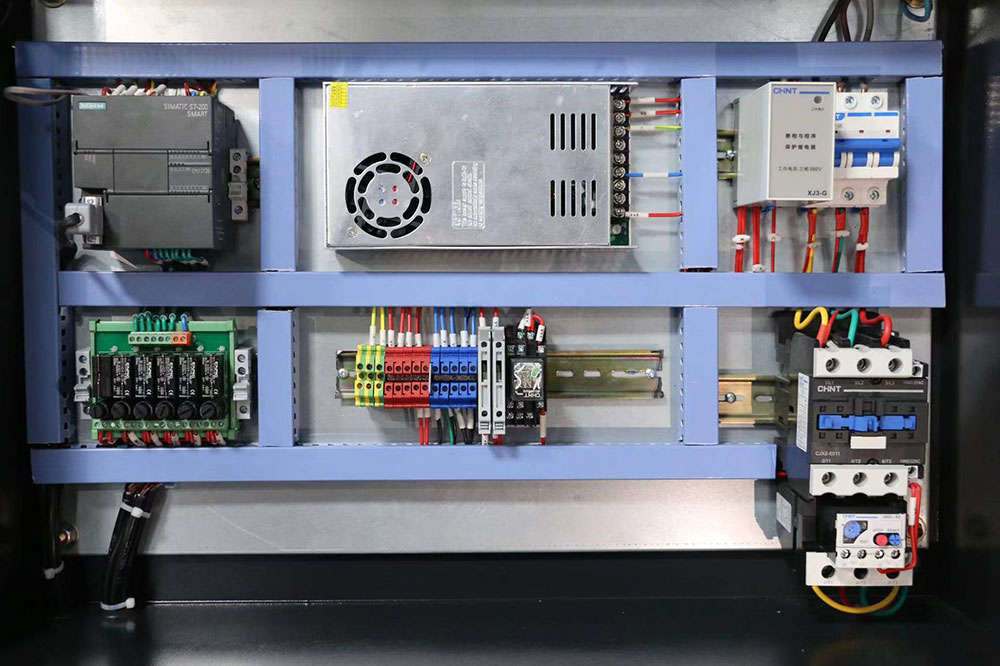

Control Siemens PLC digital touch screen

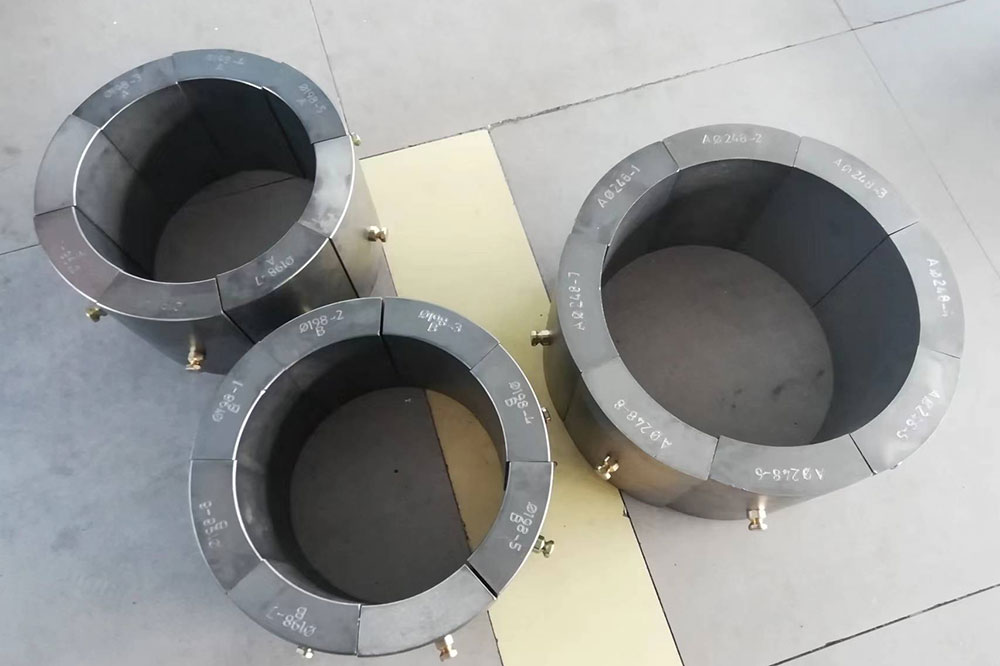

Standard dies Customized
Weight 3100kg(crimping unit)/660kg(hydraulic power unit)
L x W x H 1160*1010*1960mm/850* 810 *1220mm

Details

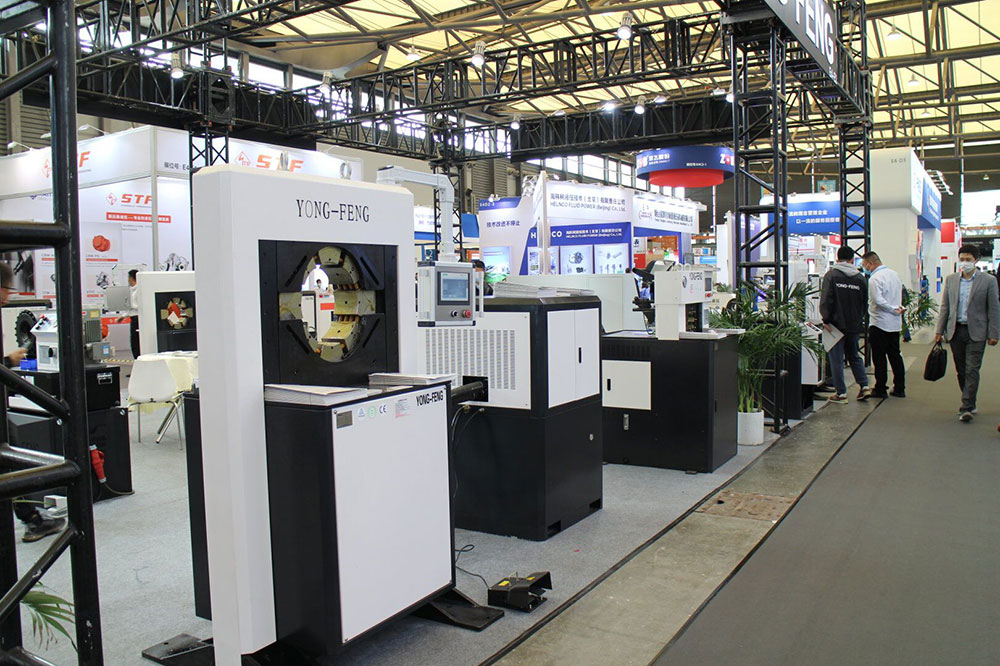

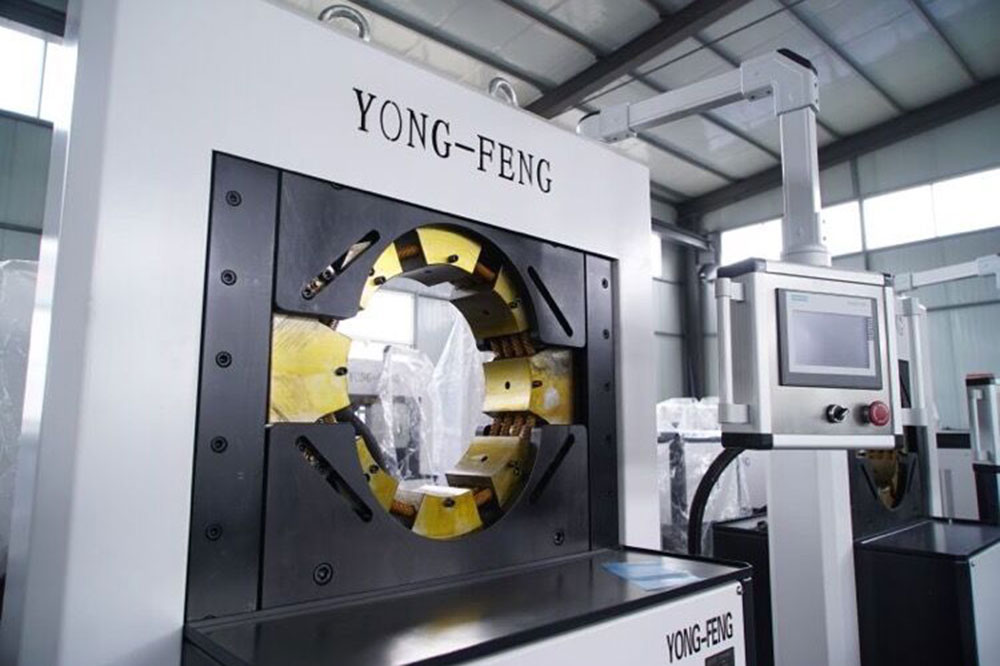

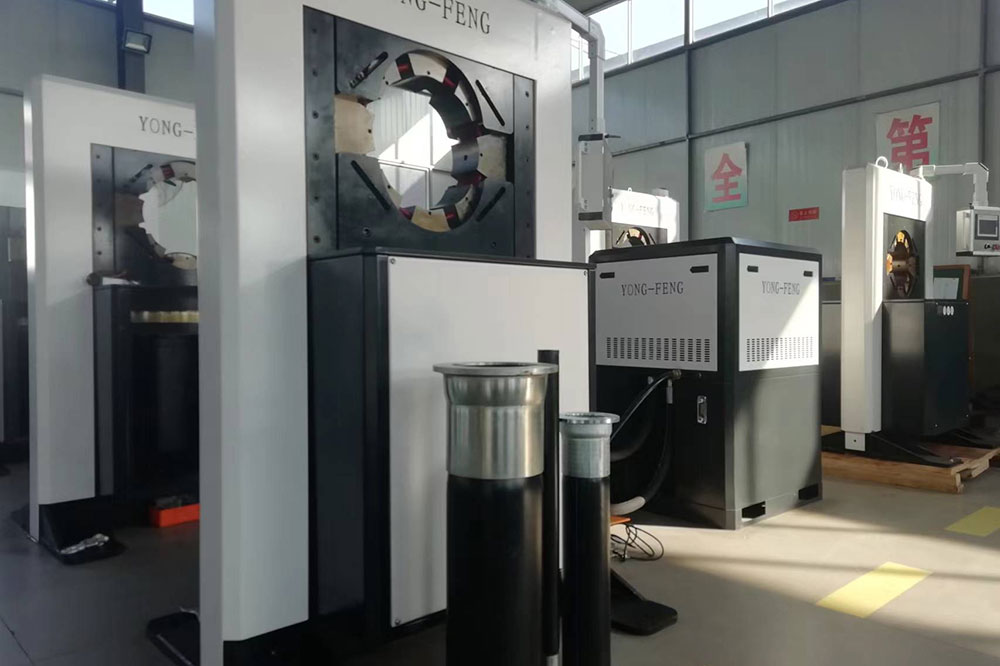

YONG-FENG Y360 hose crimping machine features stable structure, unique appearance design and Siemens PLC touch screen system. It is particularly manufactured by hydraulic technology and production process developed by YONG-FENG to crimp industrial hoses that are 2 to 10 inch. By virtue of its high quality, the hose crimping machine has won trust of clients at home and abroad.
